Oscilloscope 2 channels
Showing 1–30 of 85 results
-
Oscilloscope 2 channels
RIGOL MSO5102 OSCILLOSCOPE 100 MHz, 2 CHANNEL
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
SKU: n/a€1,009.00 View Product -
Oscilloscope 2 channels
TEKTRONIX TDS1012B OSCILLOSCOPE 100 MHz, 2 CHANNEL
TDS1000B (mono) and TDS2000B (color) combine performance with ease-of-use at an affordable price. Devices range from 40MHz to 200 MHz bandwidth and up to 2GS/s maximum sample rate. Available in two or four channels, the TDS1000B and TDS2000B feature a USB port to remove data, to connect to a PC with included OpenChoice® and NI SignalExpress® PC software, and access to compatible printers. FFT and 11 automatic measurements are standard, as well as multiple language user interface and help features. Applications for Tektronix´s Digital Storage Oscilloscopes are design, debug, education, training, manufacturing test and QA, service, and repair.
Key performance specifications
– 40 MHz, 60 MHz, and 100 MHz bandwidths
– Sample rates up to 1 GS/s real time
– 2 channels
– Monochrome LCD display
– Advanced triggers including pulse width trigger and line-selectable video trigger
– FFT standard on all models
– 12 automatic measurements
– Multiple-language user interface and context-sensitive helpConnectivity
– Removable data storage using the front-panel USB port
– Seamless PC connectivity through the USB device port, with OpenChoice® and NI SignalExpress® PC software
– Direct print to all PictBridge®-compatible printers through the USB device portAffordable digital precision
With up to 100 MHz bandwidth and 1 GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. The TDS1000B Series oscilloscopes provide accurate real-time acquisition up to their full bandwidth, the same record length at all time base settings, advanced triggers to isolate signals of interest, and 12 standard automatic measurements on all models. Their Fast Fourier Transform (FFT) and waveform add, subtract, and multiply math functions allow you to analyze, characterize, and troubleshoot circuits.Quick and easy waveform capture
The simple user interface with classic analog-style controls makes these instruments easy to use, reducing learning time and increasing efficiency. Innovative features such as the Autoset Menu, Probe Check Wizard, and Context-sensitive Help Menu optimize instrument setup and operation.Flexible data transfer
With USB host and device ports which enable removable data storage, seamless PC connectivity, and direct printing, no other digital storage oscilloscope offers as much flexibility and ease of data transfer for the price.
DatasheetSKU: n/a -
Oscilloscope 2 channels

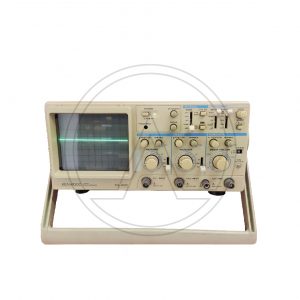

KENWOOD CS-4125
Kenwood CS-4125 20MHz 2-Channel Analog Oscilloscope. Kenwood CS-4125 20MHz 2-Channel Oscilloscope Features High reliability with Kenwood Original Hibrid ICs High-intensity CRT (12 kV) (with scale illumination) Dynamic range with a headroom for accurate waveform display without distortion High sensitivity of 1 mV/div (DC to 5 MHz) Maximum sweep rate of 20 ns/div (x10 MAG) FIX sync One-touch TV sync Convenient VERT mode One-touch ALT/CHOP switching X-Y Mode Vertical axis signal output connector Waveforms can be observed by applying intensity modulation. Added or subtracted waveforms can be observed. The trace inclination can be corrected with the front panel operation. Relay-type attenuators with long life and excellent operability are used. Kenwood TMI Corp. CS-4125 Oscilloscope, Analog: 20MHz, 2 Channel (Stand alone) The Kenwood TMI Corp. CS-4125 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. The Kenwood TMI Corp. CS-4125 oscilloscope’s simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions,
DatasheetSKU: n/a -
Oscilloscope 2 channels
RIGOL DS1052E
igh-quality dual-channel digital oscilloscope with professional features at an unbelievable price. The simple to operate oscilloscope has a range of 50 MHz over a max. Sampling rate of 10 GS/s and a real-time Sampling rate of 1 GS/s The devices are equipped with colour monitor Classic controls, an auto-set function, the display of typical input signal values, and extensive on-screen help function all reduce initial training time and simplify operation. Numerous additional features make this oscilloscope a real value-for-money option for labs, schools and technical applications.
Highlights & Details1 GS/s Real time-Sampling rate
Integrated 1 Mpts memoryFacts
2-channel measurement and external trigger
Trigger functions for special signals: Edge, video, pulses Width, Slope and Alternate
64 k LC display
USB host, USB, RS232, P/F Out port
Math functions: +, -, x, FFT
Manual/Track or automatic unit
Integrated memory for 10 adjustments and 10 measurements.Delivery
2 probes (each 1:1/10:1)
Software
Power cord
Manual.
Two PVP2350 350 MHz passive HighZ probes
DatasheetSKU: 155€369.00 View Product -
Oscilloscope 2 channels
Rigol DS1102E
The DS1000E Series Digital Oscilloscopes set a new standard for technology and capability. With features including 1 million points of deep memory, FFTs, record and replay, roll mode, alternate trigger mode, and adjustable trigger sensitivity the DS1000E is the new bench standard. 2 Analog channels plus external trigger
1 Million point deep memory
1 GSa/sec max sample rate
5.7” TFT QVGA (320X240) with 64K color LCD backlit display
Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate
DatasheetSKU: 156€360.00€429.00View Product -
Oscilloscope 2 channels
RIGOL DS1102Z-E
The DS1000Z-E Series identifies cost-effective, high-performance digital oscilloscopes. It is designed to meet different needs and finds applications for development, testing and education activities.
It covers all fields attributable to the traditional digital oscilloscope market.
Technical specifications:
ModelDS1102Z-E
Bandwidth100 MHz
Analog Channels2
Sample Rate1GSa / s (Single-channel), 500MSa / s (Dual-channel),
Max Memory Depth24Mpts (standard, single channel), 12 Mpts (dual-channel)
Max. Waveform Capture rate30,000 wfms / s
Real Time waveform Record and ReplayUp to 60,000 Frames
Std. ProbesTwo PVP2350 350 MHz passive HighZ probes
DatasheetSKU: n/a€289.00 View Product -
Oscilloscope 2 channels
RIGOL DS1202Z-E
The Rigol Rigol DS1202Z-E is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 200 MHz.
The Rigol DS1202Z-E is equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals.
The Rigol DS1202Z-E has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quicky. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals.
The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
The Rigol Rigol DS1202Z-E oscilloscopes can store up to 24 million measurement points. You can zoom into a selected part of the captured waveforms to get more details and scroll within the measurement points.
The high sampling rate (up to 1 GSa/s) of the Rigol Rigol DS1202Z-E oscilloscopes and the large memory makes it possible to record up to 30,000 waveforms per second.
The recorded waveforms can be conveniently recorded, displayed and analyzed.“Multi-Level Grading Intensity” display, extensive signal characteristics with a very large number of measurement values can also be displayed completely.
The Rigol Rigol DS1202Z-E oscilloscopes offer extensive trigger options for a professional use. The special triggers Windows, Nth Edge, Delay, Timeout, Runt, RS232/UART, I²C und SPI are available as standard accessories.
With the Rigol DS1202Z-E serial data packages of different serial bus systems can be analyzed, decoded, and displayed directly as byte values. Supported protocols are: RS232/UART, I²C, and SPI.
The Rigol DS1202Z-E comes with a modern and advanced math system which lets it solve complicated signal calculations quite simply with predefined formulas.
Pass/fail testing can be used for troubleshooting in various environments like communication networks.
The %ARTICLE_NAME% measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).
DatasheetSKU: n/a€330.00 View Product
-
Oscilloscope 2 channels
RIGOL MSO5102 OSCILLOSCOPE 100 MHz, 2 CHANNEL
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
-
Oscilloscope 2 channels
TEKTRONIX TDS1012B OSCILLOSCOPE 100 MHz, 2 CHANNEL
TDS1000B (mono) and TDS2000B (color) combine performance with ease-of-use at an affordable price. Devices range from 40MHz to 200 MHz bandwidth and up to 2GS/s maximum sample rate. Available in two or four channels, the TDS1000B and TDS2000B feature a USB port to remove data, to connect to a PC with included OpenChoice® and NI SignalExpress® PC software, and access to compatible printers. FFT and 11 automatic measurements are standard, as well as multiple language user interface and help features. Applications for Tektronix´s Digital Storage Oscilloscopes are design, debug, education, training, manufacturing test and QA, service, and repair.
Key performance specifications
– 40 MHz, 60 MHz, and 100 MHz bandwidths
– Sample rates up to 1 GS/s real time
– 2 channels
– Monochrome LCD display
– Advanced triggers including pulse width trigger and line-selectable video trigger
– FFT standard on all models
– 12 automatic measurements
– Multiple-language user interface and context-sensitive helpConnectivity
– Removable data storage using the front-panel USB port
– Seamless PC connectivity through the USB device port, with OpenChoice® and NI SignalExpress® PC software
– Direct print to all PictBridge®-compatible printers through the USB device portAffordable digital precision
With up to 100 MHz bandwidth and 1 GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. The TDS1000B Series oscilloscopes provide accurate real-time acquisition up to their full bandwidth, the same record length at all time base settings, advanced triggers to isolate signals of interest, and 12 standard automatic measurements on all models. Their Fast Fourier Transform (FFT) and waveform add, subtract, and multiply math functions allow you to analyze, characterize, and troubleshoot circuits.Quick and easy waveform capture
The simple user interface with classic analog-style controls makes these instruments easy to use, reducing learning time and increasing efficiency. Innovative features such as the Autoset Menu, Probe Check Wizard, and Context-sensitive Help Menu optimize instrument setup and operation.Flexible data transfer
With USB host and device ports which enable removable data storage, seamless PC connectivity, and direct printing, no other digital storage oscilloscope offers as much flexibility and ease of data transfer for the price.
Datasheet -
Oscilloscope 2 channels
KENWOOD CS-4125
Kenwood CS-4125 20MHz 2-Channel Analog Oscilloscope. Kenwood CS-4125 20MHz 2-Channel Oscilloscope Features High reliability with Kenwood Original Hibrid ICs High-intensity CRT (12 kV) (with scale illumination) Dynamic range with a headroom for accurate waveform display without distortion High sensitivity of 1 mV/div (DC to 5 MHz) Maximum sweep rate of 20 ns/div (x10 MAG) FIX sync One-touch TV sync Convenient VERT mode One-touch ALT/CHOP switching X-Y Mode Vertical axis signal output connector Waveforms can be observed by applying intensity modulation. Added or subtracted waveforms can be observed. The trace inclination can be corrected with the front panel operation. Relay-type attenuators with long life and excellent operability are used. Kenwood TMI Corp. CS-4125 Oscilloscope, Analog: 20MHz, 2 Channel (Stand alone) The Kenwood TMI Corp. CS-4125 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. The Kenwood TMI Corp. CS-4125 oscilloscope’s simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions,
Datasheet -
Oscilloscope 2 channels
RIGOL DS1052E
igh-quality dual-channel digital oscilloscope with professional features at an unbelievable price. The simple to operate oscilloscope has a range of 50 MHz over a max. Sampling rate of 10 GS/s and a real-time Sampling rate of 1 GS/s The devices are equipped with colour monitor Classic controls, an auto-set function, the display of typical input signal values, and extensive on-screen help function all reduce initial training time and simplify operation. Numerous additional features make this oscilloscope a real value-for-money option for labs, schools and technical applications.
Highlights & Details1 GS/s Real time-Sampling rate
Integrated 1 Mpts memoryFacts
2-channel measurement and external trigger
Trigger functions for special signals: Edge, video, pulses Width, Slope and Alternate
64 k LC display
USB host, USB, RS232, P/F Out port
Math functions: +, -, x, FFT
Manual/Track or automatic unit
Integrated memory for 10 adjustments and 10 measurements.Delivery
2 probes (each 1:1/10:1)
Software
Power cord
Manual.
Two PVP2350 350 MHz passive HighZ probes
Datasheet -
Oscilloscope 2 channels
Rigol DS1102E
The DS1000E Series Digital Oscilloscopes set a new standard for technology and capability. With features including 1 million points of deep memory, FFTs, record and replay, roll mode, alternate trigger mode, and adjustable trigger sensitivity the DS1000E is the new bench standard. 2 Analog channels plus external trigger
1 Million point deep memory
1 GSa/sec max sample rate
5.7” TFT QVGA (320X240) with 64K color LCD backlit display
Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate
Datasheet -
Oscilloscope 2 channels
RIGOL DS1102Z-E
The DS1000Z-E Series identifies cost-effective, high-performance digital oscilloscopes. It is designed to meet different needs and finds applications for development, testing and education activities.
It covers all fields attributable to the traditional digital oscilloscope market.
Technical specifications:
ModelDS1102Z-E
Bandwidth100 MHz
Analog Channels2
Sample Rate1GSa / s (Single-channel), 500MSa / s (Dual-channel),
Max Memory Depth24Mpts (standard, single channel), 12 Mpts (dual-channel)
Max. Waveform Capture rate30,000 wfms / s
Real Time waveform Record and ReplayUp to 60,000 Frames
Std. ProbesTwo PVP2350 350 MHz passive HighZ probes
Datasheet -
Oscilloscope 2 channels
RIGOL DS1202Z-E
The Rigol Rigol DS1202Z-E is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 200 MHz.
The Rigol DS1202Z-E is equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals.
The Rigol DS1202Z-E has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quicky. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals.
The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
The Rigol Rigol DS1202Z-E oscilloscopes can store up to 24 million measurement points. You can zoom into a selected part of the captured waveforms to get more details and scroll within the measurement points.
The high sampling rate (up to 1 GSa/s) of the Rigol Rigol DS1202Z-E oscilloscopes and the large memory makes it possible to record up to 30,000 waveforms per second.
The recorded waveforms can be conveniently recorded, displayed and analyzed.“Multi-Level Grading Intensity” display, extensive signal characteristics with a very large number of measurement values can also be displayed completely.
The Rigol Rigol DS1202Z-E oscilloscopes offer extensive trigger options for a professional use. The special triggers Windows, Nth Edge, Delay, Timeout, Runt, RS232/UART, I²C und SPI are available as standard accessories.
With the Rigol DS1202Z-E serial data packages of different serial bus systems can be analyzed, decoded, and displayed directly as byte values. Supported protocols are: RS232/UART, I²C, and SPI.
The Rigol DS1202Z-E comes with a modern and advanced math system which lets it solve complicated signal calculations quite simply with predefined formulas.
Pass/fail testing can be used for troubleshooting in various environments like communication networks.
The %ARTICLE_NAME% measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).
Datasheet
-
Oscilloscope 2 channels
RIGOL MSO5102 OSCILLOSCOPE 100 MHz, 2 CHANNEL
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
€1,009.00 View Product -
Oscilloscope 2 channels
TEKTRONIX TDS1012B OSCILLOSCOPE 100 MHz, 2 CHANNEL
TDS1000B (mono) and TDS2000B (color) combine performance with ease-of-use at an affordable price. Devices range from 40MHz to 200 MHz bandwidth and up to 2GS/s maximum sample rate. Available in two or four channels, the TDS1000B and TDS2000B feature a USB port to remove data, to connect to a PC with included OpenChoice® and NI SignalExpress® PC software, and access to compatible printers. FFT and 11 automatic measurements are standard, as well as multiple language user interface and help features. Applications for Tektronix´s Digital Storage Oscilloscopes are design, debug, education, training, manufacturing test and QA, service, and repair.
Key performance specifications
– 40 MHz, 60 MHz, and 100 MHz bandwidths
– Sample rates up to 1 GS/s real time
– 2 channels
– Monochrome LCD display
– Advanced triggers including pulse width trigger and line-selectable video trigger
– FFT standard on all models
– 12 automatic measurements
– Multiple-language user interface and context-sensitive helpConnectivity
– Removable data storage using the front-panel USB port
– Seamless PC connectivity through the USB device port, with OpenChoice® and NI SignalExpress® PC software
– Direct print to all PictBridge®-compatible printers through the USB device portAffordable digital precision
With up to 100 MHz bandwidth and 1 GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. The TDS1000B Series oscilloscopes provide accurate real-time acquisition up to their full bandwidth, the same record length at all time base settings, advanced triggers to isolate signals of interest, and 12 standard automatic measurements on all models. Their Fast Fourier Transform (FFT) and waveform add, subtract, and multiply math functions allow you to analyze, characterize, and troubleshoot circuits.Quick and easy waveform capture
The simple user interface with classic analog-style controls makes these instruments easy to use, reducing learning time and increasing efficiency. Innovative features such as the Autoset Menu, Probe Check Wizard, and Context-sensitive Help Menu optimize instrument setup and operation.Flexible data transfer
With USB host and device ports which enable removable data storage, seamless PC connectivity, and direct printing, no other digital storage oscilloscope offers as much flexibility and ease of data transfer for the price.
Datasheet -
Oscilloscope 2 channels
KENWOOD CS-4125
Kenwood CS-4125 20MHz 2-Channel Analog Oscilloscope. Kenwood CS-4125 20MHz 2-Channel Oscilloscope Features High reliability with Kenwood Original Hibrid ICs High-intensity CRT (12 kV) (with scale illumination) Dynamic range with a headroom for accurate waveform display without distortion High sensitivity of 1 mV/div (DC to 5 MHz) Maximum sweep rate of 20 ns/div (x10 MAG) FIX sync One-touch TV sync Convenient VERT mode One-touch ALT/CHOP switching X-Y Mode Vertical axis signal output connector Waveforms can be observed by applying intensity modulation. Added or subtracted waveforms can be observed. The trace inclination can be corrected with the front panel operation. Relay-type attenuators with long life and excellent operability are used. Kenwood TMI Corp. CS-4125 Oscilloscope, Analog: 20MHz, 2 Channel (Stand alone) The Kenwood TMI Corp. CS-4125 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. The Kenwood TMI Corp. CS-4125 oscilloscope’s simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions,
Datasheet -
Oscilloscope 2 channels
RIGOL DS1052E
igh-quality dual-channel digital oscilloscope with professional features at an unbelievable price. The simple to operate oscilloscope has a range of 50 MHz over a max. Sampling rate of 10 GS/s and a real-time Sampling rate of 1 GS/s The devices are equipped with colour monitor Classic controls, an auto-set function, the display of typical input signal values, and extensive on-screen help function all reduce initial training time and simplify operation. Numerous additional features make this oscilloscope a real value-for-money option for labs, schools and technical applications.
Highlights & Details1 GS/s Real time-Sampling rate
Integrated 1 Mpts memoryFacts
2-channel measurement and external trigger
Trigger functions for special signals: Edge, video, pulses Width, Slope and Alternate
64 k LC display
USB host, USB, RS232, P/F Out port
Math functions: +, -, x, FFT
Manual/Track or automatic unit
Integrated memory for 10 adjustments and 10 measurements.Delivery
2 probes (each 1:1/10:1)
Software
Power cord
Manual.
Two PVP2350 350 MHz passive HighZ probes
Datasheet€369.00 View Product -
Oscilloscope 2 channels
Rigol DS1102E
The DS1000E Series Digital Oscilloscopes set a new standard for technology and capability. With features including 1 million points of deep memory, FFTs, record and replay, roll mode, alternate trigger mode, and adjustable trigger sensitivity the DS1000E is the new bench standard. 2 Analog channels plus external trigger
1 Million point deep memory
1 GSa/sec max sample rate
5.7” TFT QVGA (320X240) with 64K color LCD backlit display
Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate
Datasheet€360.00€429.00View Product -
Oscilloscope 2 channels
RIGOL DS1102Z-E
The DS1000Z-E Series identifies cost-effective, high-performance digital oscilloscopes. It is designed to meet different needs and finds applications for development, testing and education activities.
It covers all fields attributable to the traditional digital oscilloscope market.
Technical specifications:
ModelDS1102Z-E
Bandwidth100 MHz
Analog Channels2
Sample Rate1GSa / s (Single-channel), 500MSa / s (Dual-channel),
Max Memory Depth24Mpts (standard, single channel), 12 Mpts (dual-channel)
Max. Waveform Capture rate30,000 wfms / s
Real Time waveform Record and ReplayUp to 60,000 Frames
Std. ProbesTwo PVP2350 350 MHz passive HighZ probes
Datasheet€289.00 View Product -
Oscilloscope 2 channels
RIGOL DS1202Z-E
The Rigol Rigol DS1202Z-E is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 200 MHz.
The Rigol DS1202Z-E is equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals.
The Rigol DS1202Z-E has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quicky. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals.
The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
The Rigol Rigol DS1202Z-E oscilloscopes can store up to 24 million measurement points. You can zoom into a selected part of the captured waveforms to get more details and scroll within the measurement points.
The high sampling rate (up to 1 GSa/s) of the Rigol Rigol DS1202Z-E oscilloscopes and the large memory makes it possible to record up to 30,000 waveforms per second.
The recorded waveforms can be conveniently recorded, displayed and analyzed.“Multi-Level Grading Intensity” display, extensive signal characteristics with a very large number of measurement values can also be displayed completely.
The Rigol Rigol DS1202Z-E oscilloscopes offer extensive trigger options for a professional use. The special triggers Windows, Nth Edge, Delay, Timeout, Runt, RS232/UART, I²C und SPI are available as standard accessories.
With the Rigol DS1202Z-E serial data packages of different serial bus systems can be analyzed, decoded, and displayed directly as byte values. Supported protocols are: RS232/UART, I²C, and SPI.
The Rigol DS1202Z-E comes with a modern and advanced math system which lets it solve complicated signal calculations quite simply with predefined formulas.
Pass/fail testing can be used for troubleshooting in various environments like communication networks.
The %ARTICLE_NAME% measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).
Datasheet€330.00 View Product
