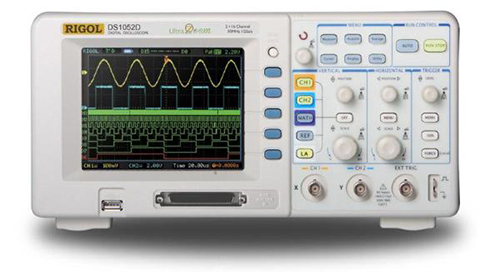

Rigol DS1052D

MSO with 50MHz bandwidth,16 channel logic analyzer


The Rigol DS1052D is a high quality two channel digital storage oscilloscope with a 16 channel logic analyzer. The DS1052D offers up to 1GSa/s real-time sample rate and up to 50MHz bandwidth. The fully integrated logic analyzer offers up to 200MSa/s. It not only has compact design and 64K TFT color LCD, but also powerful functions: up to 1M memory depth, with Ultrazoom function, it can enable users to observe details while survey the whole waveform- 7 trigger modes, adjustable trigger sensitivity, USB Host to support USB flash memory and USB printer, and other traditional functions of RIGOL oscilloscopes. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes. Delivery including 2 probes, 16 logic probes with hooks, USB cable, pc software, power adapter and manual. General Data General Data DS1052D Display 5.7″ TFT LCD with 65536 colors Resolution 320 x 234 Pixel Size 303 x 154 x 133mm (11.93 x 6.06 x 5.24 inch) Weight 2500 g (5.51 lbs) Supported operation systems Windows 7 (32Bit + 64Bit), Vista (32Bit + 64Bit), XP (32Bit + 64Bit) Oscilloscope Details Oscilloscope Details DS1052D Channels 2 Real-time sample rate 1 GSa/s real time Bandwidth 50 MHz Sampling mode Normal, average (2, 4, 8, 16, 32, 64, 128, 256), peak detect Mathematics A+B, A-B, A×B, FFT (Fast Fourier Transform) FFT algorithm Rectangle, Hanning, Hamming, Blackman Signal DS1052D Max. Input voltage 300 Vrms CAT I Real-time sample rate 13 Sa/s to 1 GSa/s real time Time base 5 ns/Div. to 50 s/Div. (Steps 1 – 2 – 5) Memory 1 Mpts (1 channel) 512 kpts (2 channels, logic analyzer channels) Vertical DS1052D Analog digital converter (A/D) With the resolution of 8 bits, make sampling on both channels synchronously. Sensitivity range (V/div) 2 mV/Div to 10 V/Div. Displacement range ±10 Div. (2 mV – 10 V) Trigger DS1052D Trigger Channel 1, Channel 2, Ext, Ext / 5, AC Line Signal system and line/field frequency (Video triggering mode) Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency. Measurement DS1052D Cursor measurement Manual, Track and Auto Measure modes Auto measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay1-2 (rise), Delay1-2(fall) sLogic-Analyzer Details Logic-Analyzer Details DS1052D Sample rate (real time) 20Sa/s-200MSa/s Channels 16 Record length 512 kpts per channel Input impedance 1MO±2% Logic levels TTL, CMOS, ECL, User (-8V bis +8V)
