Current Probe Amplifiter
TEKTRONIX TCPA300
Current Probe Amplifier.
The TCPA300 from Tektronix is a current probe amplifier. This amplifier when used with TCP312A, TCP305A and TCP303 probes, provides a wide range of current measurement capability and spans the gap between low level milliamp measurements to very high current levels. These three probes provide current measurement capabilities of 30A, 50A and 150A DC continuous and for even higher current levels. Higher frequency performance is available with TCP312A providing greater than or equal to 100MHz bandwidth and maximum current of 30A DC. The TCPA300 is approved by UL3111-1 first edition, CAN/CSA C22.2 number 1010.1-92, EN61010-1:2001, EC Council Directive 89/336/EEC, FCC Part 15, Subpart B class A and AS/NZS 2064.1/2 standards.DC to 100MHz maximum bandwidth
Automatic control and onscreen scaling and units
AC/DC input coupling
Low insertion impedance reduces device under test loading
Split core construction allows easy circuit connection
Status indicators provide visual operating status and notification of potential error conditions
Low DC drift and noise allows improved low level current measurements
DatasheetSKU: n/a -
Oscilloscope 2 channels
TEKTRONIX TDS1012B OSCILLOSCOPE 100 MHz, 2 CHANNEL
TDS1000B (mono) and TDS2000B (color) combine performance with ease-of-use at an affordable price. Devices range from 40MHz to 200 MHz bandwidth and up to 2GS/s maximum sample rate. Available in two or four channels, the TDS1000B and TDS2000B feature a USB port to remove data, to connect to a PC with included OpenChoice® and NI SignalExpress® PC software, and access to compatible printers. FFT and 11 automatic measurements are standard, as well as multiple language user interface and help features. Applications for Tektronix´s Digital Storage Oscilloscopes are design, debug, education, training, manufacturing test and QA, service, and repair.
Key performance specifications
– 40 MHz, 60 MHz, and 100 MHz bandwidths
– Sample rates up to 1 GS/s real time
– 2 channels
– Monochrome LCD display
– Advanced triggers including pulse width trigger and line-selectable video trigger
– FFT standard on all models
– 12 automatic measurements
– Multiple-language user interface and context-sensitive helpConnectivity
– Removable data storage using the front-panel USB port
– Seamless PC connectivity through the USB device port, with OpenChoice® and NI SignalExpress® PC software
– Direct print to all PictBridge®-compatible printers through the USB device portAffordable digital precision
With up to 100 MHz bandwidth and 1 GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. The TDS1000B Series oscilloscopes provide accurate real-time acquisition up to their full bandwidth, the same record length at all time base settings, advanced triggers to isolate signals of interest, and 12 standard automatic measurements on all models. Their Fast Fourier Transform (FFT) and waveform add, subtract, and multiply math functions allow you to analyze, characterize, and troubleshoot circuits.Quick and easy waveform capture
The simple user interface with classic analog-style controls makes these instruments easy to use, reducing learning time and increasing efficiency. Innovative features such as the Autoset Menu, Probe Check Wizard, and Context-sensitive Help Menu optimize instrument setup and operation.Flexible data transfer
With USB host and device ports which enable removable data storage, seamless PC connectivity, and direct printing, no other digital storage oscilloscope offers as much flexibility and ease of data transfer for the price.
DatasheetSKU: n/a -
SMAPLING MODULE
TEKTRONIX 80E04
I moduli 80E10, 80E08 e 80E04 sono moduli di campionamento Time Domain Reflectometry (TDR) a doppio canale, che forniscono fino a 12 ps di incidente e 15 ps di tempo di salita riflesso nell'80E10 (18 ps di incidente in 80E08 e 23 ps di incidente in 80E04). Ciascun canale di questi moduli è in grado di generare un passo veloce per l'uso in modalità TDR e la parte di acquisizione del modulo di campionamento monitora il passo incidente e l'eventuale energia riflessa.
La polarità del passo di ogni canale può essere selezionata indipendentemente. Ciò consente il test TDR o S-parameter di modo comune o differenziale di due linee accoppiate, oltre al test indipendente di linee isolate. La generazione di passi indipendenti per ciascun canale consente misurazioni differenziali reali, che garantiscono l'accuratezza della misurazione per i dispositivi differenziali.
L'80E10 e l'80E08 sono sistemi di campionamento remoto indipendenti da 2 metri di fattore di forma ridotto e completamente integrati, che consentono la posizione del campionatore vicino al DUT e garantiscono la migliore fedeltà del segnale. Un extender opzionale da 2 metri è disponibile per l'80E04.
I moduli caratterizzano la diafonia utilizzando i passaggi TDR per pilotare una linea (o coppia di linee per la diafonia differenziale) mentre
monitorare una seconda linea (o coppia di linee) con l'altro canale (o un altro modulo per la diafonia differenziale). La funzione “filtro” sui mainframe della serie 8200 e 8000 può essere utilizzata con misurazioni TDR o diafonia per caratterizzare le prestazioni del sistema previste con frequenze di taglio inferiori.Tutti i moduli hanno un passo incidente indipendente e un raddrizzamento del ricevitore per rimuovere l'effetto dei dispositivi di misurazione e delle sonde, consentendo un disinserimento più rapido e semplice dei dispositivi di prova. I moduli di campionamento 80E10 forniscono un tempo di salita dell'acquisizione di 7 ps, con una larghezza di banda equivalente selezionabile dall'utente fino a 50 GHz (con impostazioni di 50, 40 e 30 GHz). La larghezza di banda di campionamento 80E08 è 30 GHz (selezionabile dall'utente con impostazioni 30 e 20 GHz) e la larghezza di banda di campionamento 80E04 è 20 GHz. Le sonde TDR differenziali a passo variabile P8018 da 20 GHz single-ended e P80318 da 18 GHz offrono prestazioni e conformità eccellenti, garantendo misurazioni del backplane e del pacchetto facili e accurate.
Quando l'utente utilizza questi moduli con il software Tektronix IConnect® TDR e VNA, può acquisire fino a 1.000.000 di punti dati e ottenere fino a 50 GHz differenziali, in modalità mista e parametri S single-ended.
Scheda TecnicaSKU: n/a -
Oscilloscope 2 channels
TEKTRONIX TBS1202C
The TBS1000C Series Digital Storage Oscilloscope offers affordable performance in a compact design. It is designed to meet the needs of today's educational institutions, embedded design engineers, and maker community.
The instrument includes a 7-inch WVGA color display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five-year warranty.
The instrument comes with an innovative courseware system that integrates the lab exercises with step-by-step instructions for use, by the students.Features:
7-inch WVGA color display with 15 horizontal divisions that shows 50% more signal
32 automated measurements
Dual window FFT with simultaneous time and frequency domain views
Trigger frequency counter
Pan and Zoom capability
Multi-language user interface with support for 10 languages in the user
interface and front panel overlay
Small footprint and light weight
Fanless design contributes to low noise operation
DatasheetSKU: n/a -
Power Supply

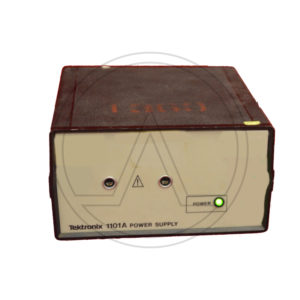

TEKTRONIX 1011A
POWER SUPPLY.
The 1101A has two power receptacles that will power up to two independent probes.
The 1101A is a power supply provides external power to probes when the oscilloscope used does not have the capability to supply probe power.Two external probe power supplies
87-128/174-250 Vac; 48-440 Hz operation
Selectable 50 ohm, termination for use with 50 Ohm or 1 Mohm inputs
Overload protected
Variable DC offset, up to ±200 V
Compatible with the P6201, P6202A and P6230SKU: n/a -
Analog Waveform Monitor

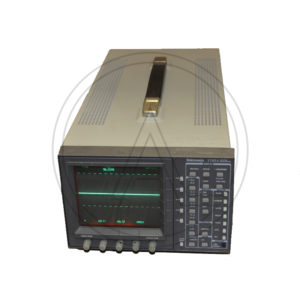

TEKTRONIX 1745A
The 1740A/1750A/1760 Series make up a family of analog video waveform/vector monitors with progressive features in support of today’s demanding television environment.
Each model in the series provides improved video performance and ease of operation and incorporates application-specific features. The family includes the 1740A Series composite analog waveform/vector monitors, the 1750A Series, which adds SCH and color frame verification capabilities, and the 1760 Series for mixed-format component/composite applications.
(While the 1740A and 1750A do provide basic component waveform monitoring capabilities with parade and overlay displays, only the 1760 provides full component monitoring capabilities.)
Each series includes models for NTSC, PAL, or dual-standard NTSC/PAL operation. For NTSC models, the last digit of the model number is ’0’ (1740A, 1750A, or 1760); ’1’ for PAL (1741A, 1751A, or 1761); and ’5’ for dual-standard NTSC/PAL (1745A, 1755A, or 1765). The family features a common, straightforward operator interface, allowing the operator to take immediate advantage of the instrument’s extensive feature set. Each operating mode provides a full set of operating controls, clearly labeled and within easy reach. Key controls are always available, with bezel buttons and knobs identified by intuitive on-screen labels.SKU: n/a€600.00 View Product -
Oscilloscope 2 channels

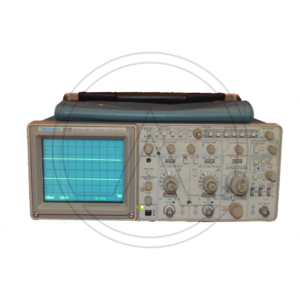

TEKTRONIX 2230
The Tektronix 2230 is a portable 100 MHz, dual-channel combination analog / digital storage scope, sister model of 2220 and 2221.
It has both an analog mode and a digital mode. In the digital storage mode, up to three waveform sets (CH 1 and/or CH 2) may be stored in a save ref. memory and recalled for display at a later time.
The 2230 features alphanumeric CRT readout of many of the front panel controls. It has a DB-9 auxiliary connector on the right side providing an external clock input as well as an output for an analog X-Y plotter to make permanent copies of the display. This feature can be accessed through the “Mem select” menu.
Some Firmware versions have a diagnostics menu with the Tektronix logo and wizard image.Vertical —
Input impedance 1 MΩ // 20 pF
Maximum Safe Input Voltage 400 V (dc + peak AC) or 800 Vp-p AC
CMRR At least 10:1 at 10 MHz
— Horizontal —
Timebase A 50 ns/Div to 0.5 s/Div, 1-2-5, x10 magnifier, i.e. down to 5 ns/Div. In “Store” mode lower sweep speeds up to 5 s/Div are available
Timebase B 50 ns/Div to 5 s/Div, 1-2-5, x10 magnifier, i.e. down to 5 ns/Div
Bandwidth 100 MHz (analog)
Sampling rate 20 MS/s
Record length 1K or 4K samples (single channel), optional 26K
Z axis input (intensity); DC to 20 MHz, maximum safe input 30V (dc + peak ac) Input resistance about 10kΩ
CRT display area : 8 × 10 cm²
Dimensions With feet and handle: 137 x 361 x 511 mm³
Features · X-Y operation
· Pre/Post-triggering
· Averaging
· Dual time base
· Cursors and readout
DatasheetSKU: n/a -

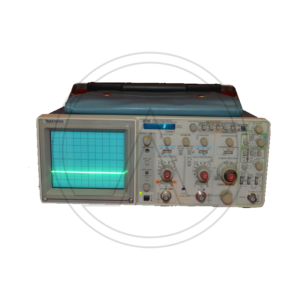

OSCILLOSCOPE COUNTER / TIMER / MULTIMETER
TEKTRONIX 2236
The Tektronix 2236 is a 100 MHz portable scope with a dual time base and a built-in DMM/counter with a dedicated 9-digit VF display. Apart from the counter, it is the same as the 2235.
In addition to signal frequency and period, the counter can measure delay time and delta time from the delayed timebase.
Bandwidth 90 MHz at 2 mV/Div, 100 MHz at 5 mV/Div and above; switchable 20 MHz limit
Rise time 3.9 ns at 2 mV/Div, 3.5 ns at 5 mV/Div and above
Deflection 2 mV/Div to 5 V/Div, 1−2−5, ±2%, and variable 2.5:1
Time base 50 ns/Div to 500 ms/Div (B timebase to 50 ms/Div), 1−2−5, ×10 magnifier for fastest deflection of 5 ns/Div
Frequency counter 7 digit resolution; frequency 100 Hz to 100 MHz in decade ranges, period 100 μs to 1 s in decade ranges, plus 5 s range; time base accuracy 1×10-5 (Opt.14: 5×10-7), sensitivity same as trigger specs
Multimeter 3¾ digit resolution, ≥2.5 measurements per second, 10 MΩ input resistance, input isolated from scope ground; DC volts 0.5 V to 500 V in decade ranges; AC volts RMS 0.5 V to 350 V in decade ranges; resistance 50 Ω to 50 MΩ in decade ranges, plus 200 MΩ and 2 GΩ ranges; temperature -62 °C to +230 °C (with P6602 probe)
Input impedance 1 MΩ // 20 pF
Trigger sensitivity 0.3 Div or 35 mV up to 10 MHz, 1 Div or 120 mV up to 60 MHz, 1.5 Div or 200 mV up to 100 MHz
CRT 80×100 mm² display area, P31 phosphor, 14 kV acceleration voltage
Power 90−250 VAC, 48 to 440 Hz, 40 W
Size 137 mm × 328 mm × 440 mm (5.4″ × 12.9″ × 17.3″)
Weight 5.2 kg (11.5 lb) without accessories
FeaturesDMM and counter
Delayed timebase
X−Y mode
Z input
DatasheetSKU: n/a -
Oscilloscope 4 channles

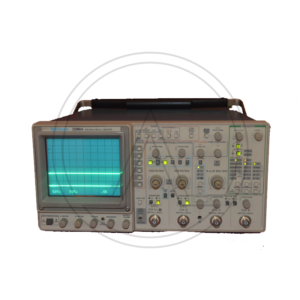

TEKTRONIX 2246A
The Tektronix 2246 is a 100 MHz four-channel analog oscilloscope. Channels 1-2 are fully-functional, whereas 3-4 are limited in both deflection factor and coupling, as they are intended mainly for digital and trigger signals.
The 2246 includes many of the same features of the 2245A and adds auto tracking SmartCursors which track the selected measurment, trigger level, or ground. There are Labeled Volts Cursors with Ground-Referenced Readings and On-Screen Readouts; Hands-Off Voltmeter Measurements of DC Volts, +Peak and -Peak Volts, and P-P Volts; SmartCursors Integrate Voltage, Time, Frequency, and Phase Measurements, and are available in ALT and B Horizontal Modes.
Bandwidth 100 MHz
Deflection CH 1, CH 2: 2 mV/div to 5 V/div in 1-2-5 seq; CH 3, CH 4: 0.1 V/div and 0.5 V/div, all ±2%; BW Limit: 20 MHz ±15%
Vertical Operating Modes CH1,2,3,4, CH2 Invert, Add, Alt, Chop (625 kHz)
Input Impedance 1 MΩ ±1.0% // 20 pF ±1 pF
Maximum Input Voltage 400 V (DC + peak AC) or 800 V (p-p ac at ≤ 10 kHz)
Sweep Speeds A Time Base: 0.5 s/div to 20 ns/div in 1-2-5 seq; B Time Base: 5 ms/div to 20 ns/div in 1-2-5 seq (×10 magnifier to 2 ns/div)
Trigger DC, Noise Reject, HF Reject, LF Reject, AC, TV Line, TV Field
Trigger Modes A Mode: Auto Level, Auto, Norm, TV Line, TV Field, Single Seq. B Mode: Runs After Delay, Auto Level, Norm, TV Line (From A Source)
Trigger Source A & B Vert, CH1, 2, 3, 4, Line
Voltmeter DC, +Peak, −Peak, PK-PK, Gated Volts, Smart Tracking Cursors: Volts, Gnd, Trigger Lvl
Cursors Time, 1/Time, Delta Time, 1/Delta Time, Delta Phase, Volts
Interface Ext Counter/Timer Base Input connector; Ext Z-Axis Input connector
Probes Two P6109 100 MHz ×10 probes, BNC Connector with a readout pin.
Power 100 W max, 90 − 250 VAC, 48 − 445 Hz
DatasheetSKU: n/a -
Oscilloscope 2 channels

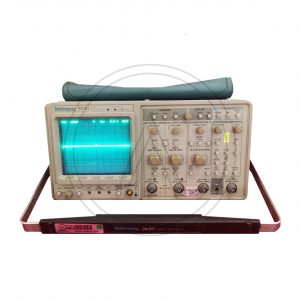

TEKTRONIX 2430
The 2430 is a 150 MHz, 2 channel digital oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
Additional Features:
Bandwidth: 150 MHz
2 Channels
Sample Rate: 100MS/s
Dual Timebase
2mV/div- 5V/div
Auto Setup, Auto Measure, Auto Pass/Fail, and Auto Sequencing.
SKU: n/a -
Oscilloscope 2 channels

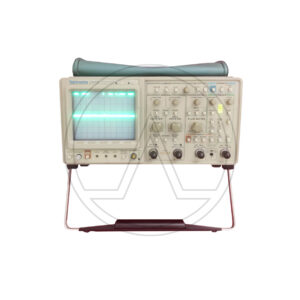

TEKTRONIX 2440
Bandwidth: 300 MHz
2 Channels
Sample Rate: 500 MS/s
Record Length: 1024 Points
2 ns Glitch Capture
Autoprobe Function with P6137 Probe
300 MHz X-Y Bandwidth at Probe Tip
Automated Measurements
Extensive Triggering Capabilities
Printer/Plotter Output
On-Screen HELP Text Describing Every Front-Panel ControlApplications:
Analog and Digital Design
Applied Research
Manufacturing Testing
TelecommunicationsThe Tektronix 2440 is a Digital Oscilloscope that has 300 MHz and 2 channels
SKU: n/a -
Oscilloscope 4 channles

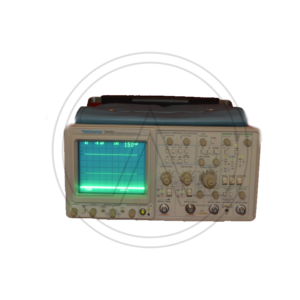

TEKTRONIX 2445
the Tektronix 2445 is a four-channel 150 MHz portable oscilloscope.
Bandwidth 150 MHz
Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two P6131 ×10 probes, 1.3 m
DatasheetSKU: n/a -
Oscilloscope 4 channles

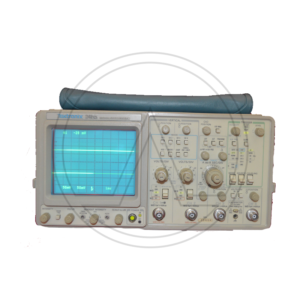

TEKTRONIX 2465
The Tektronix 2465 is a four-channel 300 MHz portable oscilloscope.
The 2465 is from the penultimate generation of analog Tektronix scopes.
The horizontal amplifier in the 2465 was designed by Art Metz and Ken Schlotzhauer. Art Metz also worked on the triggers. Art Metz and Walt Ainsworth designed the sweeps.
Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protectionSKU: n/a -
Oscilloscope 4 channles

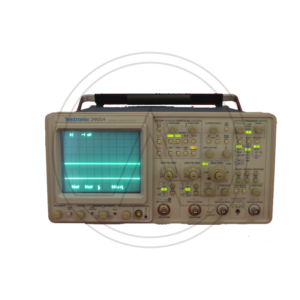

TEKTRONIX 2465A
The Tektronix 2465A is a four-channel 350 MHz portable oscilloscope. The 2445A and 2455A are 150 and 250 MHz versions.
The horizontal amplifier in the 2465A was designed by Art Metz and Ken Schlotzhauer.
Art Metz also worked on the triggers. Art Metz and Walt Ainsworth designed the sweeps.Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two or four P6136 ×10 probes, 1.3 m
DatasheetSKU: n/a -
Oscilloscope 4 channles
Tektronix 2465B
The 2465 Family oscilloscopes set new norms in measurement precision. With 1% horizontal system accuracy and 2% vertical deflection accuracy, they give you greater measurement confidence than ever before. On-screen vertical and horizontal cursors deliver immediate and
accurate results of voltage, time, frequency, ratio, and phase measurements.Readouts permit easy setup and interpretation of waveform displays. The horizontal time base always remains calibrated with three significant digits and a decimal point, even if variable settings are used.
Cursors increase accuracy and operator productivity. With them, measurements can be made quickly, with almost no chance of interpretation errors and no CRT linearity error. The front panel controlled Channel 1 – Channel 2 delay-matching adjustment compensates probe and vertical-channel delay differences.
The 2465B Oscilloscope is a four-channel oscilloscope with a bandwidth of 400MHz, sensitivity of 2 mV at 400MHz, and risetime on all channels of 0.875 ns.
These oscilloscopes can trigger on any one of the four channel. New auto-level circuitry gives you convenient hands-off triggering, even with changing trigger-signal amplitudes. With the position-independent triggering, trigger level remains constant whenever you reposition the display. And the trigger-level readout enables you to preset the amplitude for predictable triggering on both logic thresholds and transient event.
Single-sequence triggering can capture a single event or multiple events by displaying a single sweep of each trace on the CRY. At the ends of the sequence, scale factors and other readout data are briefly displayed and graticule illumination flashes on momentarily, allowing waveform photography.Four channels produce clear and complete views to simplify complex measurements. With the B sweep you can display any portion of the A sweep, including the A-sweep trigger event. Sweep-delay range is adjustable down to zero delay. This combination allows easy timing measurements
to be made on highly asymmetric or jittering waveforms. It provides accurate delayed and Δtime measurements–from the first pulse on the trace– and allows the operator to examine the A-trigger event in detail.Input impedance is selectable between 1MΩ and 50Ω on Channels 1 and 2, eliminating the need for external 50Ω terminators. Overload protection is also ensured. If excessive signal is applied while 50Ω coupling is selected, coupling automatically switches to 1MΩ coupling to prevent possible damage.
These oscilloscope also has a sweep speed of 500 ps/Div, and Volts and Time cursors with on-screen readout. The 2465B has an Input that is switchable between 1 Mohm and 50 ohm, on-board capture allowing you to digitize, store and recall waveforms or analyze them on your PC. The 2465B also has a 20 ps Time Interval Resolution. Other features of the 2465B include Auto Setup, Set-Up Sequencing and Cursor After Delay.SKU: 103 -
Oscilloscope 4 channles

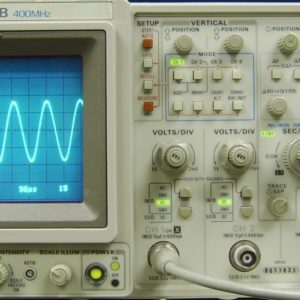

TEKTRONIX 2467
TEKTRONIX 2467 FOUR-CHANNEL 350 MHz PORTABLE OSCILLOSCOPE
The 2467 is the same as the 2465A, except that the 2465A uses a conventional CRT while the 2467A uses a micro-channel plate CRT. The MCP CRT enables bright traces at fast sweep rates, particularly with one-shot or low repetition rate signals.Bandwidth 350 MHz
Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two or four P6136 ×10 probes, 1.3 m
DatasheetSKU: n/a
-
-
Current Probe Amplifiter
TEKTRONIX TCPA300
Current Probe Amplifier.
The TCPA300 from Tektronix is a current probe amplifier. This amplifier when used with TCP312A, TCP305A and TCP303 probes, provides a wide range of current measurement capability and spans the gap between low level milliamp measurements to very high current levels. These three probes provide current measurement capabilities of 30A, 50A and 150A DC continuous and for even higher current levels. Higher frequency performance is available with TCP312A providing greater than or equal to 100MHz bandwidth and maximum current of 30A DC. The TCPA300 is approved by UL3111-1 first edition, CAN/CSA C22.2 number 1010.1-92, EN61010-1:2001, EC Council Directive 89/336/EEC, FCC Part 15, Subpart B class A and AS/NZS 2064.1/2 standards.DC to 100MHz maximum bandwidth
Automatic control and onscreen scaling and units
AC/DC input coupling
Low insertion impedance reduces device under test loading
Split core construction allows easy circuit connection
Status indicators provide visual operating status and notification of potential error conditions
Low DC drift and noise allows improved low level current measurements
Datasheet -
Oscilloscope 2 channels
TEKTRONIX TDS1012B OSCILLOSCOPE 100 MHz, 2 CHANNEL
TDS1000B (mono) and TDS2000B (color) combine performance with ease-of-use at an affordable price. Devices range from 40MHz to 200 MHz bandwidth and up to 2GS/s maximum sample rate. Available in two or four channels, the TDS1000B and TDS2000B feature a USB port to remove data, to connect to a PC with included OpenChoice® and NI SignalExpress® PC software, and access to compatible printers. FFT and 11 automatic measurements are standard, as well as multiple language user interface and help features. Applications for Tektronix´s Digital Storage Oscilloscopes are design, debug, education, training, manufacturing test and QA, service, and repair.
Key performance specifications
– 40 MHz, 60 MHz, and 100 MHz bandwidths
– Sample rates up to 1 GS/s real time
– 2 channels
– Monochrome LCD display
– Advanced triggers including pulse width trigger and line-selectable video trigger
– FFT standard on all models
– 12 automatic measurements
– Multiple-language user interface and context-sensitive helpConnectivity
– Removable data storage using the front-panel USB port
– Seamless PC connectivity through the USB device port, with OpenChoice® and NI SignalExpress® PC software
– Direct print to all PictBridge®-compatible printers through the USB device portAffordable digital precision
With up to 100 MHz bandwidth and 1 GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. The TDS1000B Series oscilloscopes provide accurate real-time acquisition up to their full bandwidth, the same record length at all time base settings, advanced triggers to isolate signals of interest, and 12 standard automatic measurements on all models. Their Fast Fourier Transform (FFT) and waveform add, subtract, and multiply math functions allow you to analyze, characterize, and troubleshoot circuits.Quick and easy waveform capture
The simple user interface with classic analog-style controls makes these instruments easy to use, reducing learning time and increasing efficiency. Innovative features such as the Autoset Menu, Probe Check Wizard, and Context-sensitive Help Menu optimize instrument setup and operation.Flexible data transfer
With USB host and device ports which enable removable data storage, seamless PC connectivity, and direct printing, no other digital storage oscilloscope offers as much flexibility and ease of data transfer for the price.
Datasheet -
SMAPLING MODULE
TEKTRONIX 80E04
I moduli 80E10, 80E08 e 80E04 sono moduli di campionamento Time Domain Reflectometry (TDR) a doppio canale, che forniscono fino a 12 ps di incidente e 15 ps di tempo di salita riflesso nell'80E10 (18 ps di incidente in 80E08 e 23 ps di incidente in 80E04). Ciascun canale di questi moduli è in grado di generare un passo veloce per l'uso in modalità TDR e la parte di acquisizione del modulo di campionamento monitora il passo incidente e l'eventuale energia riflessa.
La polarità del passo di ogni canale può essere selezionata indipendentemente. Ciò consente il test TDR o S-parameter di modo comune o differenziale di due linee accoppiate, oltre al test indipendente di linee isolate. La generazione di passi indipendenti per ciascun canale consente misurazioni differenziali reali, che garantiscono l'accuratezza della misurazione per i dispositivi differenziali.
L'80E10 e l'80E08 sono sistemi di campionamento remoto indipendenti da 2 metri di fattore di forma ridotto e completamente integrati, che consentono la posizione del campionatore vicino al DUT e garantiscono la migliore fedeltà del segnale. Un extender opzionale da 2 metri è disponibile per l'80E04.
I moduli caratterizzano la diafonia utilizzando i passaggi TDR per pilotare una linea (o coppia di linee per la diafonia differenziale) mentre
monitorare una seconda linea (o coppia di linee) con l'altro canale (o un altro modulo per la diafonia differenziale). La funzione “filtro” sui mainframe della serie 8200 e 8000 può essere utilizzata con misurazioni TDR o diafonia per caratterizzare le prestazioni del sistema previste con frequenze di taglio inferiori.Tutti i moduli hanno un passo incidente indipendente e un raddrizzamento del ricevitore per rimuovere l'effetto dei dispositivi di misurazione e delle sonde, consentendo un disinserimento più rapido e semplice dei dispositivi di prova. I moduli di campionamento 80E10 forniscono un tempo di salita dell'acquisizione di 7 ps, con una larghezza di banda equivalente selezionabile dall'utente fino a 50 GHz (con impostazioni di 50, 40 e 30 GHz). La larghezza di banda di campionamento 80E08 è 30 GHz (selezionabile dall'utente con impostazioni 30 e 20 GHz) e la larghezza di banda di campionamento 80E04 è 20 GHz. Le sonde TDR differenziali a passo variabile P8018 da 20 GHz single-ended e P80318 da 18 GHz offrono prestazioni e conformità eccellenti, garantendo misurazioni del backplane e del pacchetto facili e accurate.
Quando l'utente utilizza questi moduli con il software Tektronix IConnect® TDR e VNA, può acquisire fino a 1.000.000 di punti dati e ottenere fino a 50 GHz differenziali, in modalità mista e parametri S single-ended.
Scheda Tecnica -
Oscilloscope 2 channels
TEKTRONIX TBS1202C
The TBS1000C Series Digital Storage Oscilloscope offers affordable performance in a compact design. It is designed to meet the needs of today's educational institutions, embedded design engineers, and maker community.
The instrument includes a 7-inch WVGA color display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five-year warranty.
The instrument comes with an innovative courseware system that integrates the lab exercises with step-by-step instructions for use, by the students.Features:
7-inch WVGA color display with 15 horizontal divisions that shows 50% more signal
32 automated measurements
Dual window FFT with simultaneous time and frequency domain views
Trigger frequency counter
Pan and Zoom capability
Multi-language user interface with support for 10 languages in the user
interface and front panel overlay
Small footprint and light weight
Fanless design contributes to low noise operation
Datasheet -
Power Supply
TEKTRONIX 1011A
POWER SUPPLY.
The 1101A has two power receptacles that will power up to two independent probes.
The 1101A is a power supply provides external power to probes when the oscilloscope used does not have the capability to supply probe power.Two external probe power supplies
87-128/174-250 Vac; 48-440 Hz operation
Selectable 50 ohm, termination for use with 50 Ohm or 1 Mohm inputs
Overload protected
Variable DC offset, up to ±200 V
Compatible with the P6201, P6202A and P6230 -
Analog Waveform Monitor
TEKTRONIX 1745A
The 1740A/1750A/1760 Series make up a family of analog video waveform/vector monitors with progressive features in support of today’s demanding television environment.
Each model in the series provides improved video performance and ease of operation and incorporates application-specific features. The family includes the 1740A Series composite analog waveform/vector monitors, the 1750A Series, which adds SCH and color frame verification capabilities, and the 1760 Series for mixed-format component/composite applications.
(While the 1740A and 1750A do provide basic component waveform monitoring capabilities with parade and overlay displays, only the 1760 provides full component monitoring capabilities.)
Each series includes models for NTSC, PAL, or dual-standard NTSC/PAL operation. For NTSC models, the last digit of the model number is ’0’ (1740A, 1750A, or 1760); ’1’ for PAL (1741A, 1751A, or 1761); and ’5’ for dual-standard NTSC/PAL (1745A, 1755A, or 1765). The family features a common, straightforward operator interface, allowing the operator to take immediate advantage of the instrument’s extensive feature set. Each operating mode provides a full set of operating controls, clearly labeled and within easy reach. Key controls are always available, with bezel buttons and knobs identified by intuitive on-screen labels. -
Oscilloscope 2 channels
TEKTRONIX 2230
The Tektronix 2230 is a portable 100 MHz, dual-channel combination analog / digital storage scope, sister model of 2220 and 2221.
It has both an analog mode and a digital mode. In the digital storage mode, up to three waveform sets (CH 1 and/or CH 2) may be stored in a save ref. memory and recalled for display at a later time.
The 2230 features alphanumeric CRT readout of many of the front panel controls. It has a DB-9 auxiliary connector on the right side providing an external clock input as well as an output for an analog X-Y plotter to make permanent copies of the display. This feature can be accessed through the “Mem select” menu.
Some Firmware versions have a diagnostics menu with the Tektronix logo and wizard image.Vertical —
Input impedance 1 MΩ // 20 pF
Maximum Safe Input Voltage 400 V (dc + peak AC) or 800 Vp-p AC
CMRR At least 10:1 at 10 MHz
— Horizontal —
Timebase A 50 ns/Div to 0.5 s/Div, 1-2-5, x10 magnifier, i.e. down to 5 ns/Div. In “Store” mode lower sweep speeds up to 5 s/Div are available
Timebase B 50 ns/Div to 5 s/Div, 1-2-5, x10 magnifier, i.e. down to 5 ns/Div
Bandwidth 100 MHz (analog)
Sampling rate 20 MS/s
Record length 1K or 4K samples (single channel), optional 26K
Z axis input (intensity); DC to 20 MHz, maximum safe input 30V (dc + peak ac) Input resistance about 10kΩ
CRT display area : 8 × 10 cm²
Dimensions With feet and handle: 137 x 361 x 511 mm³
Features · X-Y operation
· Pre/Post-triggering
· Averaging
· Dual time base
· Cursors and readout
Datasheet -
OSCILLOSCOPE COUNTER / TIMER / MULTIMETER
TEKTRONIX 2236
The Tektronix 2236 is a 100 MHz portable scope with a dual time base and a built-in DMM/counter with a dedicated 9-digit VF display. Apart from the counter, it is the same as the 2235.
In addition to signal frequency and period, the counter can measure delay time and delta time from the delayed timebase.
Bandwidth 90 MHz at 2 mV/Div, 100 MHz at 5 mV/Div and above; switchable 20 MHz limit
Rise time 3.9 ns at 2 mV/Div, 3.5 ns at 5 mV/Div and above
Deflection 2 mV/Div to 5 V/Div, 1−2−5, ±2%, and variable 2.5:1
Time base 50 ns/Div to 500 ms/Div (B timebase to 50 ms/Div), 1−2−5, ×10 magnifier for fastest deflection of 5 ns/Div
Frequency counter 7 digit resolution; frequency 100 Hz to 100 MHz in decade ranges, period 100 μs to 1 s in decade ranges, plus 5 s range; time base accuracy 1×10-5 (Opt.14: 5×10-7), sensitivity same as trigger specs
Multimeter 3¾ digit resolution, ≥2.5 measurements per second, 10 MΩ input resistance, input isolated from scope ground; DC volts 0.5 V to 500 V in decade ranges; AC volts RMS 0.5 V to 350 V in decade ranges; resistance 50 Ω to 50 MΩ in decade ranges, plus 200 MΩ and 2 GΩ ranges; temperature -62 °C to +230 °C (with P6602 probe)
Input impedance 1 MΩ // 20 pF
Trigger sensitivity 0.3 Div or 35 mV up to 10 MHz, 1 Div or 120 mV up to 60 MHz, 1.5 Div or 200 mV up to 100 MHz
CRT 80×100 mm² display area, P31 phosphor, 14 kV acceleration voltage
Power 90−250 VAC, 48 to 440 Hz, 40 W
Size 137 mm × 328 mm × 440 mm (5.4″ × 12.9″ × 17.3″)
Weight 5.2 kg (11.5 lb) without accessories
FeaturesDMM and counter
Delayed timebase
X−Y mode
Z input
Datasheet -
Oscilloscope 4 channles
TEKTRONIX 2246A
The Tektronix 2246 is a 100 MHz four-channel analog oscilloscope. Channels 1-2 are fully-functional, whereas 3-4 are limited in both deflection factor and coupling, as they are intended mainly for digital and trigger signals.
The 2246 includes many of the same features of the 2245A and adds auto tracking SmartCursors which track the selected measurment, trigger level, or ground. There are Labeled Volts Cursors with Ground-Referenced Readings and On-Screen Readouts; Hands-Off Voltmeter Measurements of DC Volts, +Peak and -Peak Volts, and P-P Volts; SmartCursors Integrate Voltage, Time, Frequency, and Phase Measurements, and are available in ALT and B Horizontal Modes.
Bandwidth 100 MHz
Deflection CH 1, CH 2: 2 mV/div to 5 V/div in 1-2-5 seq; CH 3, CH 4: 0.1 V/div and 0.5 V/div, all ±2%; BW Limit: 20 MHz ±15%
Vertical Operating Modes CH1,2,3,4, CH2 Invert, Add, Alt, Chop (625 kHz)
Input Impedance 1 MΩ ±1.0% // 20 pF ±1 pF
Maximum Input Voltage 400 V (DC + peak AC) or 800 V (p-p ac at ≤ 10 kHz)
Sweep Speeds A Time Base: 0.5 s/div to 20 ns/div in 1-2-5 seq; B Time Base: 5 ms/div to 20 ns/div in 1-2-5 seq (×10 magnifier to 2 ns/div)
Trigger DC, Noise Reject, HF Reject, LF Reject, AC, TV Line, TV Field
Trigger Modes A Mode: Auto Level, Auto, Norm, TV Line, TV Field, Single Seq. B Mode: Runs After Delay, Auto Level, Norm, TV Line (From A Source)
Trigger Source A & B Vert, CH1, 2, 3, 4, Line
Voltmeter DC, +Peak, −Peak, PK-PK, Gated Volts, Smart Tracking Cursors: Volts, Gnd, Trigger Lvl
Cursors Time, 1/Time, Delta Time, 1/Delta Time, Delta Phase, Volts
Interface Ext Counter/Timer Base Input connector; Ext Z-Axis Input connector
Probes Two P6109 100 MHz ×10 probes, BNC Connector with a readout pin.
Power 100 W max, 90 − 250 VAC, 48 − 445 Hz
Datasheet -
Oscilloscope 2 channels
TEKTRONIX 2430
The 2430 is a 150 MHz, 2 channel digital oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
Additional Features:
Bandwidth: 150 MHz
2 Channels
Sample Rate: 100MS/s
Dual Timebase
2mV/div- 5V/div
Auto Setup, Auto Measure, Auto Pass/Fail, and Auto Sequencing.
-
Oscilloscope 2 channels
TEKTRONIX 2440
Bandwidth: 300 MHz
2 Channels
Sample Rate: 500 MS/s
Record Length: 1024 Points
2 ns Glitch Capture
Autoprobe Function with P6137 Probe
300 MHz X-Y Bandwidth at Probe Tip
Automated Measurements
Extensive Triggering Capabilities
Printer/Plotter Output
On-Screen HELP Text Describing Every Front-Panel ControlApplications:
Analog and Digital Design
Applied Research
Manufacturing Testing
TelecommunicationsThe Tektronix 2440 is a Digital Oscilloscope that has 300 MHz and 2 channels
-
Oscilloscope 4 channles
TEKTRONIX 2445
the Tektronix 2445 is a four-channel 150 MHz portable oscilloscope.
Bandwidth 150 MHz
Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two P6131 ×10 probes, 1.3 m
Datasheet -
Oscilloscope 4 channles
TEKTRONIX 2465
The Tektronix 2465 is a four-channel 300 MHz portable oscilloscope.
The 2465 is from the penultimate generation of analog Tektronix scopes.
The horizontal amplifier in the 2465 was designed by Art Metz and Ken Schlotzhauer. Art Metz also worked on the triggers. Art Metz and Walt Ainsworth designed the sweeps.
Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection -
Oscilloscope 4 channles
TEKTRONIX 2465A
The Tektronix 2465A is a four-channel 350 MHz portable oscilloscope. The 2445A and 2455A are 150 and 250 MHz versions.
The horizontal amplifier in the 2465A was designed by Art Metz and Ken Schlotzhauer.
Art Metz also worked on the triggers. Art Metz and Walt Ainsworth designed the sweeps.Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two or four P6136 ×10 probes, 1.3 m
Datasheet -
Oscilloscope 4 channles
Tektronix 2465B
The 2465 Family oscilloscopes set new norms in measurement precision. With 1% horizontal system accuracy and 2% vertical deflection accuracy, they give you greater measurement confidence than ever before. On-screen vertical and horizontal cursors deliver immediate and
accurate results of voltage, time, frequency, ratio, and phase measurements.Readouts permit easy setup and interpretation of waveform displays. The horizontal time base always remains calibrated with three significant digits and a decimal point, even if variable settings are used.
Cursors increase accuracy and operator productivity. With them, measurements can be made quickly, with almost no chance of interpretation errors and no CRT linearity error. The front panel controlled Channel 1 – Channel 2 delay-matching adjustment compensates probe and vertical-channel delay differences.
The 2465B Oscilloscope is a four-channel oscilloscope with a bandwidth of 400MHz, sensitivity of 2 mV at 400MHz, and risetime on all channels of 0.875 ns.
These oscilloscopes can trigger on any one of the four channel. New auto-level circuitry gives you convenient hands-off triggering, even with changing trigger-signal amplitudes. With the position-independent triggering, trigger level remains constant whenever you reposition the display. And the trigger-level readout enables you to preset the amplitude for predictable triggering on both logic thresholds and transient event.
Single-sequence triggering can capture a single event or multiple events by displaying a single sweep of each trace on the CRY. At the ends of the sequence, scale factors and other readout data are briefly displayed and graticule illumination flashes on momentarily, allowing waveform photography.Four channels produce clear and complete views to simplify complex measurements. With the B sweep you can display any portion of the A sweep, including the A-sweep trigger event. Sweep-delay range is adjustable down to zero delay. This combination allows easy timing measurements
to be made on highly asymmetric or jittering waveforms. It provides accurate delayed and Δtime measurements–from the first pulse on the trace– and allows the operator to examine the A-trigger event in detail.Input impedance is selectable between 1MΩ and 50Ω on Channels 1 and 2, eliminating the need for external 50Ω terminators. Overload protection is also ensured. If excessive signal is applied while 50Ω coupling is selected, coupling automatically switches to 1MΩ coupling to prevent possible damage.
These oscilloscope also has a sweep speed of 500 ps/Div, and Volts and Time cursors with on-screen readout. The 2465B has an Input that is switchable between 1 Mohm and 50 ohm, on-board capture allowing you to digitize, store and recall waveforms or analyze them on your PC. The 2465B also has a 20 ps Time Interval Resolution. Other features of the 2465B include Auto Setup, Set-Up Sequencing and Cursor After Delay. -
Oscilloscope 4 channles
TEKTRONIX 2467
TEKTRONIX 2467 FOUR-CHANNEL 350 MHz PORTABLE OSCILLOSCOPE
The 2467 is the same as the 2465A, except that the 2465A uses a conventional CRT while the 2467A uses a micro-channel plate CRT. The MCP CRT enables bright traces at fast sweep rates, particularly with one-shot or low repetition rate signals.Bandwidth 350 MHz
Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two or four P6136 ×10 probes, 1.3 m
Datasheet
-
-
Current Probe Amplifiter
TEKTRONIX TCPA300
Current Probe Amplifier.
The TCPA300 from Tektronix is a current probe amplifier. This amplifier when used with TCP312A, TCP305A and TCP303 probes, provides a wide range of current measurement capability and spans the gap between low level milliamp measurements to very high current levels. These three probes provide current measurement capabilities of 30A, 50A and 150A DC continuous and for even higher current levels. Higher frequency performance is available with TCP312A providing greater than or equal to 100MHz bandwidth and maximum current of 30A DC. The TCPA300 is approved by UL3111-1 first edition, CAN/CSA C22.2 number 1010.1-92, EN61010-1:2001, EC Council Directive 89/336/EEC, FCC Part 15, Subpart B class A and AS/NZS 2064.1/2 standards.DC to 100MHz maximum bandwidth
Automatic control and onscreen scaling and units
AC/DC input coupling
Low insertion impedance reduces device under test loading
Split core construction allows easy circuit connection
Status indicators provide visual operating status and notification of potential error conditions
Low DC drift and noise allows improved low level current measurements
Datasheet -
Oscilloscope 2 channels
TEKTRONIX TDS1012B OSCILLOSCOPE 100 MHz, 2 CHANNEL
TDS1000B (mono) and TDS2000B (color) combine performance with ease-of-use at an affordable price. Devices range from 40MHz to 200 MHz bandwidth and up to 2GS/s maximum sample rate. Available in two or four channels, the TDS1000B and TDS2000B feature a USB port to remove data, to connect to a PC with included OpenChoice® and NI SignalExpress® PC software, and access to compatible printers. FFT and 11 automatic measurements are standard, as well as multiple language user interface and help features. Applications for Tektronix´s Digital Storage Oscilloscopes are design, debug, education, training, manufacturing test and QA, service, and repair.
Key performance specifications
– 40 MHz, 60 MHz, and 100 MHz bandwidths
– Sample rates up to 1 GS/s real time
– 2 channels
– Monochrome LCD display
– Advanced triggers including pulse width trigger and line-selectable video trigger
– FFT standard on all models
– 12 automatic measurements
– Multiple-language user interface and context-sensitive helpConnectivity
– Removable data storage using the front-panel USB port
– Seamless PC connectivity through the USB device port, with OpenChoice® and NI SignalExpress® PC software
– Direct print to all PictBridge®-compatible printers through the USB device portAffordable digital precision
With up to 100 MHz bandwidth and 1 GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. The TDS1000B Series oscilloscopes provide accurate real-time acquisition up to their full bandwidth, the same record length at all time base settings, advanced triggers to isolate signals of interest, and 12 standard automatic measurements on all models. Their Fast Fourier Transform (FFT) and waveform add, subtract, and multiply math functions allow you to analyze, characterize, and troubleshoot circuits.Quick and easy waveform capture
The simple user interface with classic analog-style controls makes these instruments easy to use, reducing learning time and increasing efficiency. Innovative features such as the Autoset Menu, Probe Check Wizard, and Context-sensitive Help Menu optimize instrument setup and operation.Flexible data transfer
With USB host and device ports which enable removable data storage, seamless PC connectivity, and direct printing, no other digital storage oscilloscope offers as much flexibility and ease of data transfer for the price.
Datasheet -
SMAPLING MODULE
TEKTRONIX 80E04
I moduli 80E10, 80E08 e 80E04 sono moduli di campionamento Time Domain Reflectometry (TDR) a doppio canale, che forniscono fino a 12 ps di incidente e 15 ps di tempo di salita riflesso nell'80E10 (18 ps di incidente in 80E08 e 23 ps di incidente in 80E04). Ciascun canale di questi moduli è in grado di generare un passo veloce per l'uso in modalità TDR e la parte di acquisizione del modulo di campionamento monitora il passo incidente e l'eventuale energia riflessa.
La polarità del passo di ogni canale può essere selezionata indipendentemente. Ciò consente il test TDR o S-parameter di modo comune o differenziale di due linee accoppiate, oltre al test indipendente di linee isolate. La generazione di passi indipendenti per ciascun canale consente misurazioni differenziali reali, che garantiscono l'accuratezza della misurazione per i dispositivi differenziali.
L'80E10 e l'80E08 sono sistemi di campionamento remoto indipendenti da 2 metri di fattore di forma ridotto e completamente integrati, che consentono la posizione del campionatore vicino al DUT e garantiscono la migliore fedeltà del segnale. Un extender opzionale da 2 metri è disponibile per l'80E04.
I moduli caratterizzano la diafonia utilizzando i passaggi TDR per pilotare una linea (o coppia di linee per la diafonia differenziale) mentre
monitorare una seconda linea (o coppia di linee) con l'altro canale (o un altro modulo per la diafonia differenziale). La funzione “filtro” sui mainframe della serie 8200 e 8000 può essere utilizzata con misurazioni TDR o diafonia per caratterizzare le prestazioni del sistema previste con frequenze di taglio inferiori.Tutti i moduli hanno un passo incidente indipendente e un raddrizzamento del ricevitore per rimuovere l'effetto dei dispositivi di misurazione e delle sonde, consentendo un disinserimento più rapido e semplice dei dispositivi di prova. I moduli di campionamento 80E10 forniscono un tempo di salita dell'acquisizione di 7 ps, con una larghezza di banda equivalente selezionabile dall'utente fino a 50 GHz (con impostazioni di 50, 40 e 30 GHz). La larghezza di banda di campionamento 80E08 è 30 GHz (selezionabile dall'utente con impostazioni 30 e 20 GHz) e la larghezza di banda di campionamento 80E04 è 20 GHz. Le sonde TDR differenziali a passo variabile P8018 da 20 GHz single-ended e P80318 da 18 GHz offrono prestazioni e conformità eccellenti, garantendo misurazioni del backplane e del pacchetto facili e accurate.
Quando l'utente utilizza questi moduli con il software Tektronix IConnect® TDR e VNA, può acquisire fino a 1.000.000 di punti dati e ottenere fino a 50 GHz differenziali, in modalità mista e parametri S single-ended.
Scheda Tecnica -
Oscilloscope 2 channels
TEKTRONIX TBS1202C
The TBS1000C Series Digital Storage Oscilloscope offers affordable performance in a compact design. It is designed to meet the needs of today's educational institutions, embedded design engineers, and maker community.
The instrument includes a 7-inch WVGA color display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five-year warranty.
The instrument comes with an innovative courseware system that integrates the lab exercises with step-by-step instructions for use, by the students.Features:
7-inch WVGA color display with 15 horizontal divisions that shows 50% more signal
32 automated measurements
Dual window FFT with simultaneous time and frequency domain views
Trigger frequency counter
Pan and Zoom capability
Multi-language user interface with support for 10 languages in the user
interface and front panel overlay
Small footprint and light weight
Fanless design contributes to low noise operation
Datasheet -
Power Supply
TEKTRONIX 1011A
POWER SUPPLY.
The 1101A has two power receptacles that will power up to two independent probes.
The 1101A is a power supply provides external power to probes when the oscilloscope used does not have the capability to supply probe power.Two external probe power supplies
87-128/174-250 Vac; 48-440 Hz operation
Selectable 50 ohm, termination for use with 50 Ohm or 1 Mohm inputs
Overload protected
Variable DC offset, up to ±200 V
Compatible with the P6201, P6202A and P6230 -
Analog Waveform Monitor
TEKTRONIX 1745A
The 1740A/1750A/1760 Series make up a family of analog video waveform/vector monitors with progressive features in support of today’s demanding television environment.
Each model in the series provides improved video performance and ease of operation and incorporates application-specific features. The family includes the 1740A Series composite analog waveform/vector monitors, the 1750A Series, which adds SCH and color frame verification capabilities, and the 1760 Series for mixed-format component/composite applications.
(While the 1740A and 1750A do provide basic component waveform monitoring capabilities with parade and overlay displays, only the 1760 provides full component monitoring capabilities.)
Each series includes models for NTSC, PAL, or dual-standard NTSC/PAL operation. For NTSC models, the last digit of the model number is ’0’ (1740A, 1750A, or 1760); ’1’ for PAL (1741A, 1751A, or 1761); and ’5’ for dual-standard NTSC/PAL (1745A, 1755A, or 1765). The family features a common, straightforward operator interface, allowing the operator to take immediate advantage of the instrument’s extensive feature set. Each operating mode provides a full set of operating controls, clearly labeled and within easy reach. Key controls are always available, with bezel buttons and knobs identified by intuitive on-screen labels.€600.00 View Product -
Oscilloscope 2 channels
TEKTRONIX 2230
The Tektronix 2230 is a portable 100 MHz, dual-channel combination analog / digital storage scope, sister model of 2220 and 2221.
It has both an analog mode and a digital mode. In the digital storage mode, up to three waveform sets (CH 1 and/or CH 2) may be stored in a save ref. memory and recalled for display at a later time.
The 2230 features alphanumeric CRT readout of many of the front panel controls. It has a DB-9 auxiliary connector on the right side providing an external clock input as well as an output for an analog X-Y plotter to make permanent copies of the display. This feature can be accessed through the “Mem select” menu.
Some Firmware versions have a diagnostics menu with the Tektronix logo and wizard image.Vertical —
Input impedance 1 MΩ // 20 pF
Maximum Safe Input Voltage 400 V (dc + peak AC) or 800 Vp-p AC
CMRR At least 10:1 at 10 MHz
— Horizontal —
Timebase A 50 ns/Div to 0.5 s/Div, 1-2-5, x10 magnifier, i.e. down to 5 ns/Div. In “Store” mode lower sweep speeds up to 5 s/Div are available
Timebase B 50 ns/Div to 5 s/Div, 1-2-5, x10 magnifier, i.e. down to 5 ns/Div
Bandwidth 100 MHz (analog)
Sampling rate 20 MS/s
Record length 1K or 4K samples (single channel), optional 26K
Z axis input (intensity); DC to 20 MHz, maximum safe input 30V (dc + peak ac) Input resistance about 10kΩ
CRT display area : 8 × 10 cm²
Dimensions With feet and handle: 137 x 361 x 511 mm³
Features · X-Y operation
· Pre/Post-triggering
· Averaging
· Dual time base
· Cursors and readout
Datasheet -
OSCILLOSCOPE COUNTER / TIMER / MULTIMETER
TEKTRONIX 2236
The Tektronix 2236 is a 100 MHz portable scope with a dual time base and a built-in DMM/counter with a dedicated 9-digit VF display. Apart from the counter, it is the same as the 2235.
In addition to signal frequency and period, the counter can measure delay time and delta time from the delayed timebase.
Bandwidth 90 MHz at 2 mV/Div, 100 MHz at 5 mV/Div and above; switchable 20 MHz limit
Rise time 3.9 ns at 2 mV/Div, 3.5 ns at 5 mV/Div and above
Deflection 2 mV/Div to 5 V/Div, 1−2−5, ±2%, and variable 2.5:1
Time base 50 ns/Div to 500 ms/Div (B timebase to 50 ms/Div), 1−2−5, ×10 magnifier for fastest deflection of 5 ns/Div
Frequency counter 7 digit resolution; frequency 100 Hz to 100 MHz in decade ranges, period 100 μs to 1 s in decade ranges, plus 5 s range; time base accuracy 1×10-5 (Opt.14: 5×10-7), sensitivity same as trigger specs
Multimeter 3¾ digit resolution, ≥2.5 measurements per second, 10 MΩ input resistance, input isolated from scope ground; DC volts 0.5 V to 500 V in decade ranges; AC volts RMS 0.5 V to 350 V in decade ranges; resistance 50 Ω to 50 MΩ in decade ranges, plus 200 MΩ and 2 GΩ ranges; temperature -62 °C to +230 °C (with P6602 probe)
Input impedance 1 MΩ // 20 pF
Trigger sensitivity 0.3 Div or 35 mV up to 10 MHz, 1 Div or 120 mV up to 60 MHz, 1.5 Div or 200 mV up to 100 MHz
CRT 80×100 mm² display area, P31 phosphor, 14 kV acceleration voltage
Power 90−250 VAC, 48 to 440 Hz, 40 W
Size 137 mm × 328 mm × 440 mm (5.4″ × 12.9″ × 17.3″)
Weight 5.2 kg (11.5 lb) without accessories
FeaturesDMM and counter
Delayed timebase
X−Y mode
Z input
Datasheet -
Oscilloscope 4 channles
TEKTRONIX 2246A
The Tektronix 2246 is a 100 MHz four-channel analog oscilloscope. Channels 1-2 are fully-functional, whereas 3-4 are limited in both deflection factor and coupling, as they are intended mainly for digital and trigger signals.
The 2246 includes many of the same features of the 2245A and adds auto tracking SmartCursors which track the selected measurment, trigger level, or ground. There are Labeled Volts Cursors with Ground-Referenced Readings and On-Screen Readouts; Hands-Off Voltmeter Measurements of DC Volts, +Peak and -Peak Volts, and P-P Volts; SmartCursors Integrate Voltage, Time, Frequency, and Phase Measurements, and are available in ALT and B Horizontal Modes.
Bandwidth 100 MHz
Deflection CH 1, CH 2: 2 mV/div to 5 V/div in 1-2-5 seq; CH 3, CH 4: 0.1 V/div and 0.5 V/div, all ±2%; BW Limit: 20 MHz ±15%
Vertical Operating Modes CH1,2,3,4, CH2 Invert, Add, Alt, Chop (625 kHz)
Input Impedance 1 MΩ ±1.0% // 20 pF ±1 pF
Maximum Input Voltage 400 V (DC + peak AC) or 800 V (p-p ac at ≤ 10 kHz)
Sweep Speeds A Time Base: 0.5 s/div to 20 ns/div in 1-2-5 seq; B Time Base: 5 ms/div to 20 ns/div in 1-2-5 seq (×10 magnifier to 2 ns/div)
Trigger DC, Noise Reject, HF Reject, LF Reject, AC, TV Line, TV Field
Trigger Modes A Mode: Auto Level, Auto, Norm, TV Line, TV Field, Single Seq. B Mode: Runs After Delay, Auto Level, Norm, TV Line (From A Source)
Trigger Source A & B Vert, CH1, 2, 3, 4, Line
Voltmeter DC, +Peak, −Peak, PK-PK, Gated Volts, Smart Tracking Cursors: Volts, Gnd, Trigger Lvl
Cursors Time, 1/Time, Delta Time, 1/Delta Time, Delta Phase, Volts
Interface Ext Counter/Timer Base Input connector; Ext Z-Axis Input connector
Probes Two P6109 100 MHz ×10 probes, BNC Connector with a readout pin.
Power 100 W max, 90 − 250 VAC, 48 − 445 Hz
Datasheet -
Oscilloscope 2 channels
TEKTRONIX 2430
The 2430 is a 150 MHz, 2 channel digital oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
Additional Features:
Bandwidth: 150 MHz
2 Channels
Sample Rate: 100MS/s
Dual Timebase
2mV/div- 5V/div
Auto Setup, Auto Measure, Auto Pass/Fail, and Auto Sequencing.
-
Oscilloscope 2 channels
TEKTRONIX 2440
Bandwidth: 300 MHz
2 Channels
Sample Rate: 500 MS/s
Record Length: 1024 Points
2 ns Glitch Capture
Autoprobe Function with P6137 Probe
300 MHz X-Y Bandwidth at Probe Tip
Automated Measurements
Extensive Triggering Capabilities
Printer/Plotter Output
On-Screen HELP Text Describing Every Front-Panel ControlApplications:
Analog and Digital Design
Applied Research
Manufacturing Testing
TelecommunicationsThe Tektronix 2440 is a Digital Oscilloscope that has 300 MHz and 2 channels
-
Oscilloscope 4 channles
TEKTRONIX 2445
the Tektronix 2445 is a four-channel 150 MHz portable oscilloscope.
Bandwidth 150 MHz
Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two P6131 ×10 probes, 1.3 m
Datasheet -
Oscilloscope 4 channles
TEKTRONIX 2465
The Tektronix 2465 is a four-channel 300 MHz portable oscilloscope.
The 2465 is from the penultimate generation of analog Tektronix scopes.
The horizontal amplifier in the 2465 was designed by Art Metz and Ken Schlotzhauer. Art Metz also worked on the triggers. Art Metz and Walt Ainsworth designed the sweeps.
Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection -
Oscilloscope 4 channles
TEKTRONIX 2465A
The Tektronix 2465A is a four-channel 350 MHz portable oscilloscope. The 2445A and 2455A are 150 and 250 MHz versions.
The horizontal amplifier in the 2465A was designed by Art Metz and Ken Schlotzhauer.
Art Metz also worked on the triggers. Art Metz and Walt Ainsworth designed the sweeps.Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two or four P6136 ×10 probes, 1.3 m
Datasheet -
Oscilloscope 4 channles
Tektronix 2465B
The 2465 Family oscilloscopes set new norms in measurement precision. With 1% horizontal system accuracy and 2% vertical deflection accuracy, they give you greater measurement confidence than ever before. On-screen vertical and horizontal cursors deliver immediate and
accurate results of voltage, time, frequency, ratio, and phase measurements.Readouts permit easy setup and interpretation of waveform displays. The horizontal time base always remains calibrated with three significant digits and a decimal point, even if variable settings are used.
Cursors increase accuracy and operator productivity. With them, measurements can be made quickly, with almost no chance of interpretation errors and no CRT linearity error. The front panel controlled Channel 1 – Channel 2 delay-matching adjustment compensates probe and vertical-channel delay differences.
The 2465B Oscilloscope is a four-channel oscilloscope with a bandwidth of 400MHz, sensitivity of 2 mV at 400MHz, and risetime on all channels of 0.875 ns.
These oscilloscopes can trigger on any one of the four channel. New auto-level circuitry gives you convenient hands-off triggering, even with changing trigger-signal amplitudes. With the position-independent triggering, trigger level remains constant whenever you reposition the display. And the trigger-level readout enables you to preset the amplitude for predictable triggering on both logic thresholds and transient event.
Single-sequence triggering can capture a single event or multiple events by displaying a single sweep of each trace on the CRY. At the ends of the sequence, scale factors and other readout data are briefly displayed and graticule illumination flashes on momentarily, allowing waveform photography.Four channels produce clear and complete views to simplify complex measurements. With the B sweep you can display any portion of the A sweep, including the A-sweep trigger event. Sweep-delay range is adjustable down to zero delay. This combination allows easy timing measurements
to be made on highly asymmetric or jittering waveforms. It provides accurate delayed and Δtime measurements–from the first pulse on the trace– and allows the operator to examine the A-trigger event in detail.Input impedance is selectable between 1MΩ and 50Ω on Channels 1 and 2, eliminating the need for external 50Ω terminators. Overload protection is also ensured. If excessive signal is applied while 50Ω coupling is selected, coupling automatically switches to 1MΩ coupling to prevent possible damage.
These oscilloscope also has a sweep speed of 500 ps/Div, and Volts and Time cursors with on-screen readout. The 2465B has an Input that is switchable between 1 Mohm and 50 ohm, on-board capture allowing you to digitize, store and recall waveforms or analyze them on your PC. The 2465B also has a 20 ps Time Interval Resolution. Other features of the 2465B include Auto Setup, Set-Up Sequencing and Cursor After Delay. -
Oscilloscope 4 channles
TEKTRONIX 2467
TEKTRONIX 2467 FOUR-CHANNEL 350 MHz PORTABLE OSCILLOSCOPE
The 2467 is the same as the 2465A, except that the 2465A uses a conventional CRT while the 2467A uses a micro-channel plate CRT. The MCP CRT enables bright traces at fast sweep rates, particularly with one-shot or low repetition rate signals.Bandwidth 350 MHz
Sweep Rate 500 ps/div
Channels Four independent channels
Vertical 2 mV/div vertical sensitivity
Cursors Delta Volts and Delta Time Cursors
CRT Readout Scale Factors, Trigger Level, Voltage, Time, Frequency, Phase and Ratio Measurements and Mode Indicators
Trigger Advanced Triggering with “Hands Off” Auto Level Triggering
Trigger Bandwidth 500 MHz min.
Input Impedance 50 Ω/1 MΩ inputs with 50 Ω protection
Probes Two or four P6136 ×10 probes, 1.3 m
Datasheet
