Signal Generator
Showing 1–30 of 31 results
-
Signal Generator

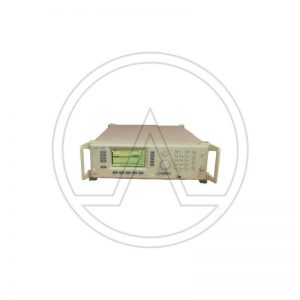

ANRITSU 69037B
The Anritsu 69037B is a used Synthesized CW Signal Generator. The Anritsu 69037B is Anritsu’s premier broadband synthesizer line that offers solutions to any RF and Microwave application. The 69037B offers the highest performance available on the market. The Anritsu 69037B is the leader in lowest phase noise performance.The 68C/69B is Anritsu’s premier broadband synthesizer line that offers solutions to any RF and Microwave application. It offers the highest performance available on the market. It is the leader in lowest phase noise performance.
The Anritsu 69037B is a basic signal source that provides accurate outputs over a wide frequency and power range for Local Oscillator duty and other CW applications.Additional Features:
Frequency range: 2 to 20 GHz
Output power without an attenuator: –15 dBm (–20 dBm typical)
Output power with an attenuator: –120 dBm
Output power with an electronic attenuator: –140 dBm
Ultra-low SSB phase noise and spurious
+17 dBm guaranteed leveled power to 20 GHz
<5 ms switching time for <100 MHz sweep steps Digital frequency sweep and digital power sweep Wide dynamic range with accurate output levels Intuitive, menu-driven front panel DatasheetSKU: n/a -
Signal Generator
HP-Agilent/Keysight 83650A
The Agilent 83650A synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83650A to achieve low single-sideband phase noise performance. It delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 26.5 GHz, and at least 40 dB below the carrier above 26.5 GHz.
Features:
Scan modulation to simulate antenna scan patterns
Accurate fixed and swept frequency offset for two-tone measurement
User flatness correction for leveling at remote points in the test system
General purpose source for use in component test, receiver test and for frequency conversion
Sweep Modes: Step, List, Ramp
Maximum Power: +10 dBm 26.5 GHz
Maximum Power: +2.5 dBm >40 GHz
Power Sweep Range: -20 dBm to maximum power
Phase Noise (50 GHz at 10 KHz): -68 dBc
Max FM Deviation (locked): +/- 8 MHz
DatasheetSKU: n/a -
Signal Generator

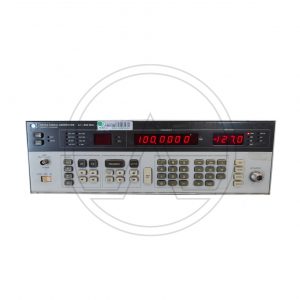

HP-Agilent/Keysight 8656A
100 kHz to 990 MHz Synthesized Signal Generator
The 8656A is a programmable synthesized signal generator that combines performance, quality, and economy, covering the 100 kHz to 990 MHz frequency range.
Offering 1 dB level accuracy and 0.1 dB resolution with calibrated output levels over the +13 to -127 dBm range, the 8656A provides precise output control.
In addition, its modulation capabilities include simultaneous and mixed modulation modes from internal (400 Hz and 1 KHz tones) and external sources.
DatasheetSKU: n/a -
Signal Generator

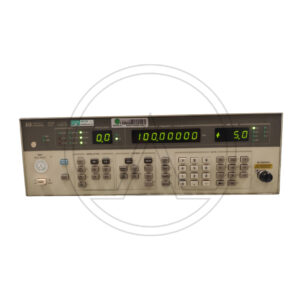

HP-Agilent/Keysight 8656B
100 kHz to 990 MHz frequency coverage
<35 ms frequency switching speed AM and FM capabilities ±1 dB level accuracy Amplitude offset and phase adjust capabilities The Keysight 8656B is a programmable synthesized signal generator that combines performance, quality, and economy, covering the 0.1 to 990 MHz frequency range. Offering ±1 dB level accuracy and 0.1 dB resolution with calibrated output levels over the +13 to -127 dBm range, the Keysight 8656B provides precise output control. In addition, its modulation capabilities include simultaneous and mixed modulation modes from internal (400 Hz and 1 KHz tones) and external sources. These features create a versatile signal generator, for use in a variety if applications. DatasheetSKU: 1138 -
Signal Generator
RIGOL DSG3030-IQ
The DSG3030-IQ RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output with a maximum frequency 3 GHz. Featuring a high signal purity with phase noise measuring <-110 dBc/Hz @ 20 kHz (typical) and a wide output range of -130 dBm to +13 dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface.
The DSG3000 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation with customizable pulse train and I/Q modulation (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000 is designed to be both, highly stable and reliable. The DSG3000 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.
Special Features
- Highest frequency: 3 GHz/6 GHz
- Amplitude accuracy: < 0.5 dB (typical)
- Output amplitude range: -130 dBm to +13 dBm
- High signal purity, phase noise: < -110 dBc/Hz @ 20 kHz (typical)
- Standard 0.5 ppm internal clock; 5 ppb high stable clock for option
- Standard AM/FM/ΦM analog modulation
- Standard pulse modulation; on/off ratio up to 80 dB; pulse train generator (optional)
- I/Q modulation and I/Q baseband output
- All modulationschemes support internal and external modulation modes
- Standard 2U height design to save rack space. Rack mount kit is available
- Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control
- Wear-free electronic attenuator design
- Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control
SKU: n/a€8,490.00 View Product -
Signal Generator

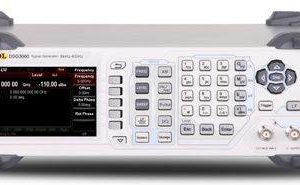

Rigol DSG3060
The DSG3060 RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output with a maximum frequency 6 GHz. Featuring a high signal purity with phase noise measuring <-110 dBc/Hz @ 20 kHz (typical) and a wide output range of -130 dBm to +13 dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG3000 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation with customizable pulse train and I/Q modulation (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000 is designed to be both, highly stable and reliable. The DSG3000 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. * Highest frequency: 3 GHz/6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -130 dBm to +13 dBm * High signal purity, phase noise: < -110 dBc/Hz @ 20 kHz (typical) * Standard 0.5 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Standard pulse modulation; on/off ratio up to 80 dB; pulse train generator (optional) * I/Q modulation and I/Q baseband output * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design * Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control
SKU: 743 -
Signal Generator
RIGOL DSG3060-IQ
The DSG3060-IQ RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output with a maximum frequency 6 GHz. Featuring a high signal purity with phase noise measuring <-110 dBc/Hz @ 20 kHz (typical) and a wide output range of -130 dBm to +13 dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface.
The DSG3000 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation with customizable pulse train and I/Q modulation (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000 is designed to be both, highly stable and reliable. The DSG3000 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.
Special Features
- Highest frequency: 3 GHz/6 GHz
- Amplitude accuracy: < 0.5 dB (typical)
- Output amplitude range: -130 dBm to +13 dBm
- High signal purity, phase noise: < -110 dBc/Hz @ 20 kHz (typical)
- Standard 0.5 ppm internal clock; 5 ppb high stable clock for option
- Standard AM/FM/ΦM analog modulation
- Standard pulse modulation; on/off ratio up to 80 dB; pulse train generator (optional)
- I/Q modulation and I/Q baseband output
- All modulationschemes support internal and external modulation modes
- Standard 2U height design to save rack space. Rack mount kit is available
- Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control
- Wear-free electronic attenuator design
- Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control
SKU: n/a€10,490.00 View Product -
Signal Generator
RIGOL DSG3065B
The DSG3000B series is a high-performance RF signal generator. It provides comprehensive modulation solutions: AM/FM/ΦM analog modulation; pulse modulation with user-defined pulse train; and I/Q modulation. All the modulations support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000B series has undergone a strict verification through the experiments in its design and
production stages to ensure its high stability and reliability. The DSG3000B series also features a clear user interface, compact size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.Features:
Highest frequency: 6.5GHz
Amplitude accuracy: <0.5 dB (typical)
Output amplitude range: -130 dBm to +27 dBm (setting range)
High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical)
Standard 1 ppm internal clock; optional 5 ppb high stable clock
Standard AM/FM/ΦM analog modulation
Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train generator
I/Q modulation and I/Q baseband output
All modulations support internal and external modulation modes
Standard 2U height design to save rack space; rack mount kit is available
Support USB/LAN/GPIB remote control; SCPI command set
Wear-free electronic attenuator designSKU: n/a€7,299.00 View Product -
Signal Generator

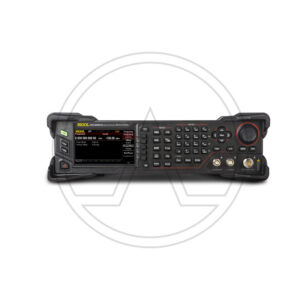

RIGOL DSG3065B-IQ
The DSG3000B series is a high-performance RF signal generator. It provides comprehensive modulation solutions: AM/FM/ΦM analog modulation; pulse modulation with user-defined pulse train; and I/Q modulation. All the modulations support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000B series has undergone a strict verification through the experiments in its design and
production stages to ensure its high stability and reliability. The DSG3000B series also features a clear user interface, compact size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.Features:
Highest frequency: 6.5GHz
Amplitude accuracy: <0.5 dB (typical) Output amplitude range: -130 dBm to +27 dBm (setting range) High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical) Standard 1 ppm internal clock; optional 5 ppb high stable clock Standard AM/FM/ΦM analog modulation Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train generator I/Q modulation and I/Q baseband output All modulations support internal and external modulation modes Standard 2U height design to save rack space; rack mount kit is available Support USB/LAN/GPIB remote control; SCPI command set Wear-free electronic attenuator design DatasheetSKU: n/a€10,599.00 View Product -
Signal Generator
RIGOL DSG821
RF SIGNAL GENERATOR 9 kHz to 2.1 GHz
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design DatasheetSKU: n/a€2,099.00 View Product -
Signal Generator
RIGOL DSG821A
RF SIGNAL GENERATOR 9 kHz to 2.1 GHz with I/Q Modulation
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design DatasheetSKU: n/a€3,399.00 View Product -
Signal Generator
RIGOL DSG836
RF SIGNAL GENERATOR 9 kHz to 3.6 GHz
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design DatasheetSKU: n/a€3,399.00 View Product -
Signal Generator
RIGOL DSG836A
RF SIGNAL GENERATOR 9 kHz to 3.6 GHz with I/Q Modulation
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design DatasheetSKU: n/a€4,699.00 View Product
-
Signal Generator
ANRITSU 69037B
The Anritsu 69037B is a used Synthesized CW Signal Generator. The Anritsu 69037B is Anritsu’s premier broadband synthesizer line that offers solutions to any RF and Microwave application. The 69037B offers the highest performance available on the market. The Anritsu 69037B is the leader in lowest phase noise performance.The 68C/69B is Anritsu’s premier broadband synthesizer line that offers solutions to any RF and Microwave application. It offers the highest performance available on the market. It is the leader in lowest phase noise performance.
The Anritsu 69037B is a basic signal source that provides accurate outputs over a wide frequency and power range for Local Oscillator duty and other CW applications.Additional Features:
Frequency range: 2 to 20 GHz
Output power without an attenuator: –15 dBm (–20 dBm typical)
Output power with an attenuator: –120 dBm
Output power with an electronic attenuator: –140 dBm
Ultra-low SSB phase noise and spurious
+17 dBm guaranteed leveled power to 20 GHz
<5 ms switching time for <100 MHz sweep steps Digital frequency sweep and digital power sweep Wide dynamic range with accurate output levels Intuitive, menu-driven front panel Datasheet -
Signal Generator
HP-Agilent/Keysight 83650A
The Agilent 83650A synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83650A to achieve low single-sideband phase noise performance. It delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 26.5 GHz, and at least 40 dB below the carrier above 26.5 GHz.
Features:
Scan modulation to simulate antenna scan patterns
Accurate fixed and swept frequency offset for two-tone measurement
User flatness correction for leveling at remote points in the test system
General purpose source for use in component test, receiver test and for frequency conversion
Sweep Modes: Step, List, Ramp
Maximum Power: +10 dBm 26.5 GHz
Maximum Power: +2.5 dBm >40 GHz
Power Sweep Range: -20 dBm to maximum power
Phase Noise (50 GHz at 10 KHz): -68 dBc
Max FM Deviation (locked): +/- 8 MHz
Datasheet -
Signal Generator
HP-Agilent/Keysight 8656A
100 kHz to 990 MHz Synthesized Signal Generator
The 8656A is a programmable synthesized signal generator that combines performance, quality, and economy, covering the 100 kHz to 990 MHz frequency range.
Offering 1 dB level accuracy and 0.1 dB resolution with calibrated output levels over the +13 to -127 dBm range, the 8656A provides precise output control.
In addition, its modulation capabilities include simultaneous and mixed modulation modes from internal (400 Hz and 1 KHz tones) and external sources.
Datasheet -
Signal Generator
HP-Agilent/Keysight 8656B
100 kHz to 990 MHz frequency coverage
<35 ms frequency switching speed AM and FM capabilities ±1 dB level accuracy Amplitude offset and phase adjust capabilities The Keysight 8656B is a programmable synthesized signal generator that combines performance, quality, and economy, covering the 0.1 to 990 MHz frequency range. Offering ±1 dB level accuracy and 0.1 dB resolution with calibrated output levels over the +13 to -127 dBm range, the Keysight 8656B provides precise output control. In addition, its modulation capabilities include simultaneous and mixed modulation modes from internal (400 Hz and 1 KHz tones) and external sources. These features create a versatile signal generator, for use in a variety if applications. Datasheet -
Signal Generator
RIGOL DSG3030-IQ
The DSG3030-IQ RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output with a maximum frequency 3 GHz. Featuring a high signal purity with phase noise measuring <-110 dBc/Hz @ 20 kHz (typical) and a wide output range of -130 dBm to +13 dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface.
The DSG3000 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation with customizable pulse train and I/Q modulation (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000 is designed to be both, highly stable and reliable. The DSG3000 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.
Special Features
- Highest frequency: 3 GHz/6 GHz
- Amplitude accuracy: < 0.5 dB (typical)
- Output amplitude range: -130 dBm to +13 dBm
- High signal purity, phase noise: < -110 dBc/Hz @ 20 kHz (typical)
- Standard 0.5 ppm internal clock; 5 ppb high stable clock for option
- Standard AM/FM/ΦM analog modulation
- Standard pulse modulation; on/off ratio up to 80 dB; pulse train generator (optional)
- I/Q modulation and I/Q baseband output
- All modulationschemes support internal and external modulation modes
- Standard 2U height design to save rack space. Rack mount kit is available
- Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control
- Wear-free electronic attenuator design
- Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control
-
Signal Generator
Rigol DSG3060
The DSG3060 RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output with a maximum frequency 6 GHz. Featuring a high signal purity with phase noise measuring <-110 dBc/Hz @ 20 kHz (typical) and a wide output range of -130 dBm to +13 dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG3000 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation with customizable pulse train and I/Q modulation (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000 is designed to be both, highly stable and reliable. The DSG3000 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. * Highest frequency: 3 GHz/6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -130 dBm to +13 dBm * High signal purity, phase noise: < -110 dBc/Hz @ 20 kHz (typical) * Standard 0.5 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Standard pulse modulation; on/off ratio up to 80 dB; pulse train generator (optional) * I/Q modulation and I/Q baseband output * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design * Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control
-
Signal Generator
RIGOL DSG3060-IQ
The DSG3060-IQ RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output with a maximum frequency 6 GHz. Featuring a high signal purity with phase noise measuring <-110 dBc/Hz @ 20 kHz (typical) and a wide output range of -130 dBm to +13 dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface.
The DSG3000 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation with customizable pulse train and I/Q modulation (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000 is designed to be both, highly stable and reliable. The DSG3000 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.
Special Features
- Highest frequency: 3 GHz/6 GHz
- Amplitude accuracy: < 0.5 dB (typical)
- Output amplitude range: -130 dBm to +13 dBm
- High signal purity, phase noise: < -110 dBc/Hz @ 20 kHz (typical)
- Standard 0.5 ppm internal clock; 5 ppb high stable clock for option
- Standard AM/FM/ΦM analog modulation
- Standard pulse modulation; on/off ratio up to 80 dB; pulse train generator (optional)
- I/Q modulation and I/Q baseband output
- All modulationschemes support internal and external modulation modes
- Standard 2U height design to save rack space. Rack mount kit is available
- Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control
- Wear-free electronic attenuator design
- Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control
-
Signal Generator
RIGOL DSG3065B
The DSG3000B series is a high-performance RF signal generator. It provides comprehensive modulation solutions: AM/FM/ΦM analog modulation; pulse modulation with user-defined pulse train; and I/Q modulation. All the modulations support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000B series has undergone a strict verification through the experiments in its design and
production stages to ensure its high stability and reliability. The DSG3000B series also features a clear user interface, compact size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.Features:
Highest frequency: 6.5GHz
Amplitude accuracy: <0.5 dB (typical)
Output amplitude range: -130 dBm to +27 dBm (setting range)
High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical)
Standard 1 ppm internal clock; optional 5 ppb high stable clock
Standard AM/FM/ΦM analog modulation
Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train generator
I/Q modulation and I/Q baseband output
All modulations support internal and external modulation modes
Standard 2U height design to save rack space; rack mount kit is available
Support USB/LAN/GPIB remote control; SCPI command set
Wear-free electronic attenuator design -
Signal Generator
RIGOL DSG3065B-IQ
The DSG3000B series is a high-performance RF signal generator. It provides comprehensive modulation solutions: AM/FM/ΦM analog modulation; pulse modulation with user-defined pulse train; and I/Q modulation. All the modulations support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000B series has undergone a strict verification through the experiments in its design and
production stages to ensure its high stability and reliability. The DSG3000B series also features a clear user interface, compact size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.Features:
Highest frequency: 6.5GHz
Amplitude accuracy: <0.5 dB (typical) Output amplitude range: -130 dBm to +27 dBm (setting range) High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical) Standard 1 ppm internal clock; optional 5 ppb high stable clock Standard AM/FM/ΦM analog modulation Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train generator I/Q modulation and I/Q baseband output All modulations support internal and external modulation modes Standard 2U height design to save rack space; rack mount kit is available Support USB/LAN/GPIB remote control; SCPI command set Wear-free electronic attenuator design Datasheet -
Signal Generator
RIGOL DSG821
RF SIGNAL GENERATOR 9 kHz to 2.1 GHz
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design Datasheet -
Signal Generator
RIGOL DSG821A
RF SIGNAL GENERATOR 9 kHz to 2.1 GHz with I/Q Modulation
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design Datasheet -
Signal Generator
RIGOL DSG836
RF SIGNAL GENERATOR 9 kHz to 3.6 GHz
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design Datasheet -
Signal Generator
RIGOL DSG836A
RF SIGNAL GENERATOR 9 kHz to 3.6 GHz with I/Q Modulation
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design Datasheet
-
Signal Generator
ANRITSU 69037B
The Anritsu 69037B is a used Synthesized CW Signal Generator. The Anritsu 69037B is Anritsu’s premier broadband synthesizer line that offers solutions to any RF and Microwave application. The 69037B offers the highest performance available on the market. The Anritsu 69037B is the leader in lowest phase noise performance.The 68C/69B is Anritsu’s premier broadband synthesizer line that offers solutions to any RF and Microwave application. It offers the highest performance available on the market. It is the leader in lowest phase noise performance.
The Anritsu 69037B is a basic signal source that provides accurate outputs over a wide frequency and power range for Local Oscillator duty and other CW applications.Additional Features:
Frequency range: 2 to 20 GHz
Output power without an attenuator: –15 dBm (–20 dBm typical)
Output power with an attenuator: –120 dBm
Output power with an electronic attenuator: –140 dBm
Ultra-low SSB phase noise and spurious
+17 dBm guaranteed leveled power to 20 GHz
<5 ms switching time for <100 MHz sweep steps Digital frequency sweep and digital power sweep Wide dynamic range with accurate output levels Intuitive, menu-driven front panel Datasheet -
Signal Generator
HP-Agilent/Keysight 83650A
The Agilent 83650A synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83650A to achieve low single-sideband phase noise performance. It delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 26.5 GHz, and at least 40 dB below the carrier above 26.5 GHz.
Features:
Scan modulation to simulate antenna scan patterns
Accurate fixed and swept frequency offset for two-tone measurement
User flatness correction for leveling at remote points in the test system
General purpose source for use in component test, receiver test and for frequency conversion
Sweep Modes: Step, List, Ramp
Maximum Power: +10 dBm 26.5 GHz
Maximum Power: +2.5 dBm >40 GHz
Power Sweep Range: -20 dBm to maximum power
Phase Noise (50 GHz at 10 KHz): -68 dBc
Max FM Deviation (locked): +/- 8 MHz
Datasheet -
Signal Generator
HP-Agilent/Keysight 8656A
100 kHz to 990 MHz Synthesized Signal Generator
The 8656A is a programmable synthesized signal generator that combines performance, quality, and economy, covering the 100 kHz to 990 MHz frequency range.
Offering 1 dB level accuracy and 0.1 dB resolution with calibrated output levels over the +13 to -127 dBm range, the 8656A provides precise output control.
In addition, its modulation capabilities include simultaneous and mixed modulation modes from internal (400 Hz and 1 KHz tones) and external sources.
Datasheet -
Signal Generator
HP-Agilent/Keysight 8656B
100 kHz to 990 MHz frequency coverage
<35 ms frequency switching speed AM and FM capabilities ±1 dB level accuracy Amplitude offset and phase adjust capabilities The Keysight 8656B is a programmable synthesized signal generator that combines performance, quality, and economy, covering the 0.1 to 990 MHz frequency range. Offering ±1 dB level accuracy and 0.1 dB resolution with calibrated output levels over the +13 to -127 dBm range, the Keysight 8656B provides precise output control. In addition, its modulation capabilities include simultaneous and mixed modulation modes from internal (400 Hz and 1 KHz tones) and external sources. These features create a versatile signal generator, for use in a variety if applications. Datasheet -
Signal Generator
RIGOL DSG3030-IQ
The DSG3030-IQ RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output with a maximum frequency 3 GHz. Featuring a high signal purity with phase noise measuring <-110 dBc/Hz @ 20 kHz (typical) and a wide output range of -130 dBm to +13 dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface.
The DSG3000 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation with customizable pulse train and I/Q modulation (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000 is designed to be both, highly stable and reliable. The DSG3000 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.
Special Features
- Highest frequency: 3 GHz/6 GHz
- Amplitude accuracy: < 0.5 dB (typical)
- Output amplitude range: -130 dBm to +13 dBm
- High signal purity, phase noise: < -110 dBc/Hz @ 20 kHz (typical)
- Standard 0.5 ppm internal clock; 5 ppb high stable clock for option
- Standard AM/FM/ΦM analog modulation
- Standard pulse modulation; on/off ratio up to 80 dB; pulse train generator (optional)
- I/Q modulation and I/Q baseband output
- All modulationschemes support internal and external modulation modes
- Standard 2U height design to save rack space. Rack mount kit is available
- Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control
- Wear-free electronic attenuator design
- Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control
€8,490.00 View Product -
Signal Generator
Rigol DSG3060
The DSG3060 RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output with a maximum frequency 6 GHz. Featuring a high signal purity with phase noise measuring <-110 dBc/Hz @ 20 kHz (typical) and a wide output range of -130 dBm to +13 dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG3000 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation with customizable pulse train and I/Q modulation (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000 is designed to be both, highly stable and reliable. The DSG3000 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. * Highest frequency: 3 GHz/6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -130 dBm to +13 dBm * High signal purity, phase noise: < -110 dBc/Hz @ 20 kHz (typical) * Standard 0.5 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Standard pulse modulation; on/off ratio up to 80 dB; pulse train generator (optional) * I/Q modulation and I/Q baseband output * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design * Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control
-
Signal Generator
RIGOL DSG3060-IQ
The DSG3060-IQ RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output with a maximum frequency 6 GHz. Featuring a high signal purity with phase noise measuring <-110 dBc/Hz @ 20 kHz (typical) and a wide output range of -130 dBm to +13 dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface.
The DSG3000 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation with customizable pulse train and I/Q modulation (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000 is designed to be both, highly stable and reliable. The DSG3000 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.
Special Features
- Highest frequency: 3 GHz/6 GHz
- Amplitude accuracy: < 0.5 dB (typical)
- Output amplitude range: -130 dBm to +13 dBm
- High signal purity, phase noise: < -110 dBc/Hz @ 20 kHz (typical)
- Standard 0.5 ppm internal clock; 5 ppb high stable clock for option
- Standard AM/FM/ΦM analog modulation
- Standard pulse modulation; on/off ratio up to 80 dB; pulse train generator (optional)
- I/Q modulation and I/Q baseband output
- All modulationschemes support internal and external modulation modes
- Standard 2U height design to save rack space. Rack mount kit is available
- Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control
- Wear-free electronic attenuator design
- Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control
€10,490.00 View Product -
Signal Generator
RIGOL DSG3065B
The DSG3000B series is a high-performance RF signal generator. It provides comprehensive modulation solutions: AM/FM/ΦM analog modulation; pulse modulation with user-defined pulse train; and I/Q modulation. All the modulations support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000B series has undergone a strict verification through the experiments in its design and
production stages to ensure its high stability and reliability. The DSG3000B series also features a clear user interface, compact size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.Features:
Highest frequency: 6.5GHz
Amplitude accuracy: <0.5 dB (typical)
Output amplitude range: -130 dBm to +27 dBm (setting range)
High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical)
Standard 1 ppm internal clock; optional 5 ppb high stable clock
Standard AM/FM/ΦM analog modulation
Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train generator
I/Q modulation and I/Q baseband output
All modulations support internal and external modulation modes
Standard 2U height design to save rack space; rack mount kit is available
Support USB/LAN/GPIB remote control; SCPI command set
Wear-free electronic attenuator design€7,299.00 View Product -
Signal Generator
RIGOL DSG3065B-IQ
The DSG3000B series is a high-performance RF signal generator. It provides comprehensive modulation solutions: AM/FM/ΦM analog modulation; pulse modulation with user-defined pulse train; and I/Q modulation. All the modulations support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000B series has undergone a strict verification through the experiments in its design and
production stages to ensure its high stability and reliability. The DSG3000B series also features a clear user interface, compact size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.Features:
Highest frequency: 6.5GHz
Amplitude accuracy: <0.5 dB (typical) Output amplitude range: -130 dBm to +27 dBm (setting range) High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical) Standard 1 ppm internal clock; optional 5 ppb high stable clock Standard AM/FM/ΦM analog modulation Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train generator I/Q modulation and I/Q baseband output All modulations support internal and external modulation modes Standard 2U height design to save rack space; rack mount kit is available Support USB/LAN/GPIB remote control; SCPI command set Wear-free electronic attenuator design Datasheet€10,599.00 View Product -
Signal Generator
RIGOL DSG821
RF SIGNAL GENERATOR 9 kHz to 2.1 GHz
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design Datasheet€2,099.00 View Product -
Signal Generator
RIGOL DSG821A
RF SIGNAL GENERATOR 9 kHz to 2.1 GHz with I/Q Modulation
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design Datasheet€3,399.00 View Product -
Signal Generator
RIGOL DSG836
RF SIGNAL GENERATOR 9 kHz to 3.6 GHz
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design Datasheet€3,399.00 View Product -
Signal Generator
RIGOL DSG836A
RF SIGNAL GENERATOR 9 kHz to 3.6 GHz with I/Q Modulation
The DSG800(A) RF signal generator offers standard AM/FM/ØM analog modulation, as well as options for pulse modulation with a maximum frequency 1.5 GHz. Featuring a high signal purity with phase noise measuring <-105 dBc/Hz @ 20 kHz (typical) and a wide output range of -110 dBm to +13 dBm, the DSG800 RF signal generator has an optional pulse modulation with an on/off ratio of up to 70dB, with optional pulse train generator available. The DSG800(A) series also has an amplitude accuracy of < 0.5 dB (typical). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The DSG800 series is a high-performance RF signal generator. It provides comprehensive modulation solutions such as: Pulse modulation (optional) with customizable pulse train (optional) and standard AM/FM/FM analog modulation. All modulation schemes support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG800 is designed to be both, highly stable and reliable. The DSG800 series also features a clear user interface, small size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool for various fields such as communication, computers, instrumentation, R&D, education, production and maintenance. Highly cost-effective economical RF signal generator * Up to -112 dBc/Hz (typical) phase noise * Up to +20 dBm (typical) maximum output power * Higher level of amplitude accuracy, up to 0.5 dB (typical) * Superb signal stability Functions almost matching those of high-level RF signal generators * Flexible frequency and amplitude sweep functions * Complete AM/FM/ØM analog modulation functions * Standard LF output function * Powerful pulse modulation function * Open vector modulation function * System flatness calibration function * Simple and easy to operate Special design ensuring its reliability and durability * Use electronic attenuator to avoid wearing * Specially designed protection functions * Digital ALC circuit * Simple structure Smallest in size among the like products * Occupy the least workbench space * Occupy less rack space * Light weight; the handle offers comfortable grip Special Features * Highest frequency: 1.5 GHz / 3.6 GHz * Amplitude accuracy: < 0.5 dB (typical) * Output amplitude range: -110 dBm to +13 dBm * High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical) * Standard 2 ppm internal clock; 5 ppb high stable clock for option * Standard AM/FM/ΦM analog modulation * Optional pulse modulation; on/off ratio up to 70 dB * Pulse Train Generator (optional) * All modulationschemes support internal and external modulation modes * Standard 2U height design to save rack space. Rack mount kit is available * Standard USB/LAN remote control interfaces. SCPI command set for remote control * Wear-free electronic attenuator design Datasheet€4,699.00 View Product
