Showing 181–210 of 239 results
-
Oscilloscope
RIGOL MHO984
The RIGOL MHO984 is a high-performance mixed-signal digital oscilloscope with an 800 MHz bandwidth across 4 analog channels, designed to tackle the most demanding challenges. It offers 12-bit hardware vertical resolution to capture even the finest signal details, exceptionally deep memory, and lightning-fast capture speed to detect rare events. The 16 integrated digital channels make it a powerful and versatile tool for advanced debugging of embedded systems, high-speed bus testing, and power electronics applications.
Key Features:
Bandwidth: 800 MHz
4 analog channels + 16 digital channels with PLA2216 probe (optional)
Vertical resolution: 12 bits (up to 16 bits in high-resolution mode)
Real-time sampling rate: up to 4 GSa/s (single channel)
Memory depth: 100 Mpts (standard), 500 Mpts (optional)
Waveform acquisition rate: up to 1,000,000 wfms/s (record mode)
Vertical sensitivity: 200 μV/div to 10 V/div
Input impedance: 1 MΩ ±1%, 50 Ω ±1%
7″ capacitive multi-touch display (1024×600 px), 256-level grayscale display
Standard interfaces: USB Device & Host, LAN (10/100), HDMI
Advanced features: 2-channel waveform generator (50/100 MHz, optional), Bode plot analysis (with AFG option), serial decoding (RS232, I²C, SPI, CAN, LIN standard; CAN-FD, FlexRay, I²S optional), and web-based control
Standard equipment4 RP3500A passive probes (500 MHz)
Type-C power adapter
USB cable
Ground cableSKU: n/a€1,004.00 View Product -
Oscilloscope 4 channles
Rigol MSO1074Z
The Rigol MSO1074Z is a very high quality four channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 70 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
DatascheetSKU: 830€679.00 View Product -
Oscilloscope 4 channles
Rigol MSO1074Z-S
The Rigol MSO1074Z-S is a very high quality four channel digital storage oscilloscope with built-in 25 MHz bandwidth 2CH arbitrary waveform generator. The scope features a real-time sample rate of up to 1 GSa/s and a bandwidth of 70 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z-S has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
DatascheetSKU: 829€869.00 View Product -
Oscilloscope 4 channles
Rigol MSO1104Z
The Rigol MSO1104Z is a very high quality four channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
DatascheetSKU: 828€799.00 View Product -
Oscilloscope 4 channles
Rigol MSO1104Z-S
The Rigol MSO1104Z-S is a very high quality four channel digital storage oscilloscope with built-in 25 MHz bandwidth 2CH arbitrary waveform generator. The scope features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z-S has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
DatascheetSKU: 827€999.00 View Product -
Oscilloscope 2 channels
Rigol MSO2102A
The Rigol MSO2102A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
DatascheetSKU: 822€905.00 View Product -
Oscilloscope 2 channels
Rigol MSO2102A-S
The Rigol MSO2102A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 100 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies of up to 25 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
DatascheetSKU: 821€990.00€1,145.00View Product -
Oscilloscope 2 channels

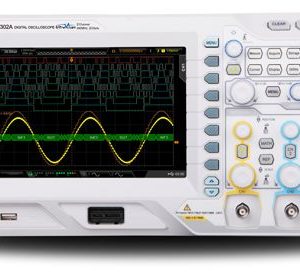

RIGOL MSO2202A
The Rigol MSO2202A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 200 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
DatascheetSKU: 820€955.00 View Product -
Oscilloscope 2 channels
Rigol MSO2202A-S
The Rigol MSO2202A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 200 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies of up to 25 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
DatascheetSKU: 819€1,090.00€1,255.00View Product -
Oscilloscope 2 channels

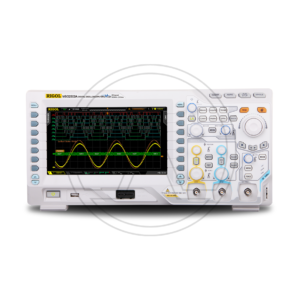

RIGOL MSO2302A
The Rigol MSO2302A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 300 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
DatascheetSKU: 818€1,135.00 View Product -
Oscilloscope 2 channels
Rigol MSO2302A-S
The Rigol MSO2302A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 300 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies of up to 25 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
DatascheetSKU: 817€1,199.00€1,375.00View Product -
Oscilloscope 2 channels
Rigol MSO4012
100MHz, 2 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 100MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading displaySKU: 733 -
Oscilloscope 4 channles
Rigol MSO4014
100MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 100MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading displaySKU: 732 -
Oscilloscope 2 channels
Rigol MSO4022
200 MHz, 2 channel, 4 GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 200MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading displaySKU: 731 -
Oscilloscope 4 channles
Rigol MSO4024
200MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 200MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading displaySKU: 730 -
Oscilloscope 2 channels
Rigol MSO4032
350MHz, 2 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 350MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading displaySKU: 729 -
Oscilloscope 4 channles
Rigol MSO4034
350MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 350MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading displaySKU: 728 -
Oscilloscope 2 channels
Rigol MSO4052
500MHz, 2 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 500MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading displaySKU: 727 -
Oscilloscope 4 channles
Rigol MSO4054
500MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 500MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading displaySKU: 726 -
Oscilloscope 4 channles
RIGOL MSO5104
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
SKU: n/a€1,094.00 View Product -
Oscilloscope 2 channels

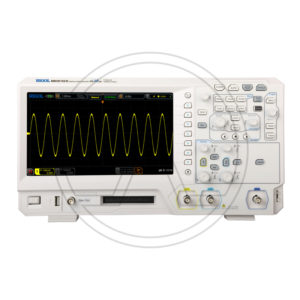

RIGOL MSO5152-E
MSO5000-E series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multitouch screen, the MSO5000-E series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO5000-E series products support multiple channels, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
* Analog bandwidth: 150 MHz
* 2 analog channels, 1 EXT channel, and a standard configuration of 16 digital channels (required to purchase the probe)
* Up to 4 GSa/s real-time sample rate
* Up to 100 Mpts memory depth (option)
* High waveform capture rate (over 300,000 wfm/s)
* Auto measurement of 41 waveform parameters; full-memory hardware measurement function
* A variety of serial protocol triggers and decodes
* Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
* Independent search, navigation keys, and event table
* Built-in advanced power analysis software (option)
* Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totalizer, and a protocol analyzer
* 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
* Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
* Web Control remote command
* Unique online version upgrade
* Novel and delicate industrial design, easy to operateSKU: n/a€899.00 View Product -
Oscilloscope 4 channles
RIGOL MSO5204
The MSO5000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology
Developed by RIGOL. Integrating 6 independent instruments into one, the MSO5000 series is equipped with super high sample bandwidth ratio of 8 GSa/s, extremely high memory depth of up to 200 Mpts, clear 9″ display, excellent waveform capture rate of 500.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today's inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers.
The MSO5000 series digital oscilloscope launched by RIGOL this time integrates 7 independent instruments into 1, including one digital oscilloscope, one spectrum analyzer, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO5000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL MSO5000-BND function and application bundle option includes:
MSO5000-COMP PC serial bus trigger and analysis (RS232/UART)
MSO5000-EMBD Embedded serial bus trigger and analysis (I2C and SPI)
MSO5000-AUTO Auto serial bus trigger and analysis (CAN and LIN)
MSO5000-FLEX FlexRay serial bus trigger and analysis (FlexRay)
MSO5000-AUDIO Audio serial bus trigger and analysis (I2S) 4 channels models only
MSO5000-AERO MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553)
MSO5000-AWG Dual-channel 25 MHz arbitrary waveform generator
MSO5000-PWR Built-in Power Analysis
DatasheetSKU: n/a€1,494.00 View Product -
Oscilloscope 4 channles
RIGOL MSO5354
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
The RIGOL MSO5000-BND function and application bundle option includes:
MSO5000-COMP PC serial bus trigger and analysis (RS232/UART)
MSO5000-EMBD Embedded serial bus trigger and analysis (I2C and SPI)
MSO5000-AUTO Auto serial bus trigger and analysis (CAN and LIN)
MSO5000-FLEX FlexRay serial bus trigger and analysis (FlexRay)
MSO5000-AUDIO Audio serial bus trigger and analysis (I2S) 4 channels models only
MSO5000-AERO MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553)
MSO5000-AWG Dual-channel 25 MHz arbitrary waveform generator
MSO5000-PWR Built-in Power Analysis
DatasheetSKU: n/a€1,994.00 View Product -
Oscilloscope 4 channles
RIGOL MSO7014 + BUNDLE DS7000-BND
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1″ display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today’s inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL DS7000-BND application bundle option includes:
DS7000-COMP (RS232/UART)
DS7000-EMBD (I2C/SPI)
DS7000-AUTO (CAN/LIN)
DS7000-FLEX (FlexRay)
DS7000-AUDIO (I2S)
DS7000-AERO (MIL-STD 1553)
MSO7000-AWG (dual channel WaveGen 25MHz AWG, only for MSO models)
DS7000-PWR (Integrated Power Analysis)SKU: n/a€2,795.00 View Product -
Oscilloscope 4 channles
RIGOL MSO7024
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1″ display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today’s inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL DS7000-BND application bundle option includes:
DS7000-COMP (RS232/UART)
DS7000-EMBD (I2C/SPI)
DS7000-AUTO (CAN/LIN)
DS7000-FLEX (FlexRay)
DS7000-AUDIO (I2S)
DS7000-AERO (MIL-STD 1553)
MSO7000-AWG (dual channel WaveGen 25MHz AWG, only for MSO models)
DS7000-PWR (Integrated Power Analysis)SKU: n/a€3,595.00 View Product -
Oscilloscope 4 channles
RIGOL MSO7034
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1″ display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today’s inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL DS7000-BND application bundle option includes:
DS7000-COMP (RS232/UART)
DS7000-EMBD (I2C/SPI)
DS7000-AUTO (CAN/LIN)
DS7000-FLEX (FlexRay)
DS7000-AUDIO (I2S)
DS7000-AERO (MIL-STD 1553)
MSO7000-AWG (dual channel WaveGen 25MHz AWG, only for MSO models)
DS7000-PWR (Integrated Power Analysis)SKU: n/a€4,690.00 View Product -
Oscilloscope 2 channels

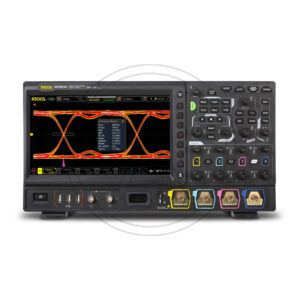

RIGOL MSO8074A
750 MHz (50 Ω), 500MHz (1 MΩ), 4 analog channels, 1 EXT channel, 16 digital channels, Real-time sample rate up to 10 GSa/s, Memory Depth up to 500 Mpts, Built-in dual-channel function/arbitrary waveform generator (optional), up to 12-bit vertical resolution, 10.1'' HD touch display
Analog channel bandwidth: 750 MHz (50 Ω), 500MHz (1 MΩ)
4 analog channels, 1 EXT channel, 16 digital channels
Built-in dual-channel function/arbitrary waveform generator (optional)
up to 12-bit vertical resolution
Real-time sample rate up to 10 GSa/s
Memory Depth up to 500 Mpts
10.1'' 1024*600 HD touch display
Web Control and VNC remote command
Waveform histogram analysis (standard)
Auto measurement of 41 waveform parametersSKU: n/a€7,895.00 View Product -
Oscilloscope 4 channles
RIGOL MSO8154A
1.5 GHz (50 Ω), 500MHz (1 MΩ), 4 analog channels, 1 EXT channel, 16 digital channels, Real-time sample rate up to 10 GSa/s, Memory Depth up to 500 Mpts, Built-in dual-channel function/arbitrary waveform generator (optional), up to 12-bit vertical resolution, 10.1'' HD touch display
Analog channel bandwidth: 1.5 GHz (50 Ω), 500MHz (1 MΩ)
4 analog channels, 1 EXT channel, 16 digital channels
Built-in dual-channel function/arbitrary waveform generator (optional)
up to 12-bit vertical resolution
Real-time sample rate up to 10 GSa/s
Memory Depth up to 500 Mpts
10.1'' 1024*600 HD touch display
Web Control and VNC remote command
Waveform histogram analysis (standard)
Auto measurement of 41 waveform parametersSKU: n/a€9,895.00 View Product
-
Oscilloscope
RIGOL MHO984
The RIGOL MHO984 is a high-performance mixed-signal digital oscilloscope with an 800 MHz bandwidth across 4 analog channels, designed to tackle the most demanding challenges. It offers 12-bit hardware vertical resolution to capture even the finest signal details, exceptionally deep memory, and lightning-fast capture speed to detect rare events. The 16 integrated digital channels make it a powerful and versatile tool for advanced debugging of embedded systems, high-speed bus testing, and power electronics applications.
Key Features:
Bandwidth: 800 MHz
4 analog channels + 16 digital channels with PLA2216 probe (optional)
Vertical resolution: 12 bits (up to 16 bits in high-resolution mode)
Real-time sampling rate: up to 4 GSa/s (single channel)
Memory depth: 100 Mpts (standard), 500 Mpts (optional)
Waveform acquisition rate: up to 1,000,000 wfms/s (record mode)
Vertical sensitivity: 200 μV/div to 10 V/div
Input impedance: 1 MΩ ±1%, 50 Ω ±1%
7″ capacitive multi-touch display (1024×600 px), 256-level grayscale display
Standard interfaces: USB Device & Host, LAN (10/100), HDMI
Advanced features: 2-channel waveform generator (50/100 MHz, optional), Bode plot analysis (with AFG option), serial decoding (RS232, I²C, SPI, CAN, LIN standard; CAN-FD, FlexRay, I²S optional), and web-based control
Standard equipment4 RP3500A passive probes (500 MHz)
Type-C power adapter
USB cable
Ground cable -
Oscilloscope 4 channles
Rigol MSO1074Z
The Rigol MSO1074Z is a very high quality four channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 70 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet -
Oscilloscope 4 channles
Rigol MSO1074Z-S
The Rigol MSO1074Z-S is a very high quality four channel digital storage oscilloscope with built-in 25 MHz bandwidth 2CH arbitrary waveform generator. The scope features a real-time sample rate of up to 1 GSa/s and a bandwidth of 70 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z-S has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet -
Oscilloscope 4 channles
Rigol MSO1104Z
The Rigol MSO1104Z is a very high quality four channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet -
Oscilloscope 4 channles
Rigol MSO1104Z-S
The Rigol MSO1104Z-S is a very high quality four channel digital storage oscilloscope with built-in 25 MHz bandwidth 2CH arbitrary waveform generator. The scope features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z-S has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet -
Oscilloscope 2 channels
Rigol MSO2102A
The Rigol MSO2102A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet -
Oscilloscope 2 channels
Rigol MSO2102A-S
The Rigol MSO2102A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 100 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies of up to 25 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet -
Oscilloscope 2 channels
RIGOL MSO2202A
The Rigol MSO2202A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 200 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet -
Oscilloscope 2 channels
Rigol MSO2202A-S
The Rigol MSO2202A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 200 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies of up to 25 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet -
Oscilloscope 2 channels
RIGOL MSO2302A
The Rigol MSO2302A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 300 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet -
Oscilloscope 2 channels
Rigol MSO2302A-S
The Rigol MSO2302A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 300 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies of up to 25 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet -
Oscilloscope 2 channels
Rigol MSO4012
100MHz, 2 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 100MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 4 channles
Rigol MSO4014
100MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 100MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 2 channels
Rigol MSO4022
200 MHz, 2 channel, 4 GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 200MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 4 channles
Rigol MSO4024
200MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 200MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 2 channels
Rigol MSO4032
350MHz, 2 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 350MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 4 channles
Rigol MSO4034
350MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 350MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 2 channels
Rigol MSO4052
500MHz, 2 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 500MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 4 channles
Rigol MSO4054
500MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 500MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 4 channles
RIGOL MSO5104
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
-
Oscilloscope 2 channels
RIGOL MSO5152-E
MSO5000-E series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multitouch screen, the MSO5000-E series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO5000-E series products support multiple channels, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
* Analog bandwidth: 150 MHz
* 2 analog channels, 1 EXT channel, and a standard configuration of 16 digital channels (required to purchase the probe)
* Up to 4 GSa/s real-time sample rate
* Up to 100 Mpts memory depth (option)
* High waveform capture rate (over 300,000 wfm/s)
* Auto measurement of 41 waveform parameters; full-memory hardware measurement function
* A variety of serial protocol triggers and decodes
* Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
* Independent search, navigation keys, and event table
* Built-in advanced power analysis software (option)
* Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totalizer, and a protocol analyzer
* 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
* Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
* Web Control remote command
* Unique online version upgrade
* Novel and delicate industrial design, easy to operate -
Oscilloscope 4 channles
RIGOL MSO5204
The MSO5000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology
Developed by RIGOL. Integrating 6 independent instruments into one, the MSO5000 series is equipped with super high sample bandwidth ratio of 8 GSa/s, extremely high memory depth of up to 200 Mpts, clear 9″ display, excellent waveform capture rate of 500.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today's inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers.
The MSO5000 series digital oscilloscope launched by RIGOL this time integrates 7 independent instruments into 1, including one digital oscilloscope, one spectrum analyzer, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO5000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL MSO5000-BND function and application bundle option includes:
MSO5000-COMP PC serial bus trigger and analysis (RS232/UART)
MSO5000-EMBD Embedded serial bus trigger and analysis (I2C and SPI)
MSO5000-AUTO Auto serial bus trigger and analysis (CAN and LIN)
MSO5000-FLEX FlexRay serial bus trigger and analysis (FlexRay)
MSO5000-AUDIO Audio serial bus trigger and analysis (I2S) 4 channels models only
MSO5000-AERO MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553)
MSO5000-AWG Dual-channel 25 MHz arbitrary waveform generator
MSO5000-PWR Built-in Power Analysis
Datasheet -
Oscilloscope 4 channles
RIGOL MSO5354
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
The RIGOL MSO5000-BND function and application bundle option includes:
MSO5000-COMP PC serial bus trigger and analysis (RS232/UART)
MSO5000-EMBD Embedded serial bus trigger and analysis (I2C and SPI)
MSO5000-AUTO Auto serial bus trigger and analysis (CAN and LIN)
MSO5000-FLEX FlexRay serial bus trigger and analysis (FlexRay)
MSO5000-AUDIO Audio serial bus trigger and analysis (I2S) 4 channels models only
MSO5000-AERO MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553)
MSO5000-AWG Dual-channel 25 MHz arbitrary waveform generator
MSO5000-PWR Built-in Power Analysis
Datasheet -
Oscilloscope 4 channles
RIGOL MSO7014 + BUNDLE DS7000-BND
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1″ display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today’s inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL DS7000-BND application bundle option includes:
DS7000-COMP (RS232/UART)
DS7000-EMBD (I2C/SPI)
DS7000-AUTO (CAN/LIN)
DS7000-FLEX (FlexRay)
DS7000-AUDIO (I2S)
DS7000-AERO (MIL-STD 1553)
MSO7000-AWG (dual channel WaveGen 25MHz AWG, only for MSO models)
DS7000-PWR (Integrated Power Analysis) -
Oscilloscope 4 channles
RIGOL MSO7024
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1″ display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today’s inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL DS7000-BND application bundle option includes:
DS7000-COMP (RS232/UART)
DS7000-EMBD (I2C/SPI)
DS7000-AUTO (CAN/LIN)
DS7000-FLEX (FlexRay)
DS7000-AUDIO (I2S)
DS7000-AERO (MIL-STD 1553)
MSO7000-AWG (dual channel WaveGen 25MHz AWG, only for MSO models)
DS7000-PWR (Integrated Power Analysis) -
Oscilloscope 4 channles
RIGOL MSO7034
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1″ display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today’s inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL DS7000-BND application bundle option includes:
DS7000-COMP (RS232/UART)
DS7000-EMBD (I2C/SPI)
DS7000-AUTO (CAN/LIN)
DS7000-FLEX (FlexRay)
DS7000-AUDIO (I2S)
DS7000-AERO (MIL-STD 1553)
MSO7000-AWG (dual channel WaveGen 25MHz AWG, only for MSO models)
DS7000-PWR (Integrated Power Analysis) -
Oscilloscope 2 channels
RIGOL MSO8074A
750 MHz (50 Ω), 500MHz (1 MΩ), 4 analog channels, 1 EXT channel, 16 digital channels, Real-time sample rate up to 10 GSa/s, Memory Depth up to 500 Mpts, Built-in dual-channel function/arbitrary waveform generator (optional), up to 12-bit vertical resolution, 10.1'' HD touch display
Analog channel bandwidth: 750 MHz (50 Ω), 500MHz (1 MΩ)
4 analog channels, 1 EXT channel, 16 digital channels
Built-in dual-channel function/arbitrary waveform generator (optional)
up to 12-bit vertical resolution
Real-time sample rate up to 10 GSa/s
Memory Depth up to 500 Mpts
10.1'' 1024*600 HD touch display
Web Control and VNC remote command
Waveform histogram analysis (standard)
Auto measurement of 41 waveform parameters -
Oscilloscope 4 channles
RIGOL MSO8154A
1.5 GHz (50 Ω), 500MHz (1 MΩ), 4 analog channels, 1 EXT channel, 16 digital channels, Real-time sample rate up to 10 GSa/s, Memory Depth up to 500 Mpts, Built-in dual-channel function/arbitrary waveform generator (optional), up to 12-bit vertical resolution, 10.1'' HD touch display
Analog channel bandwidth: 1.5 GHz (50 Ω), 500MHz (1 MΩ)
4 analog channels, 1 EXT channel, 16 digital channels
Built-in dual-channel function/arbitrary waveform generator (optional)
up to 12-bit vertical resolution
Real-time sample rate up to 10 GSa/s
Memory Depth up to 500 Mpts
10.1'' 1024*600 HD touch display
Web Control and VNC remote command
Waveform histogram analysis (standard)
Auto measurement of 41 waveform parameters
-
Oscilloscope
RIGOL MHO984
The RIGOL MHO984 is a high-performance mixed-signal digital oscilloscope with an 800 MHz bandwidth across 4 analog channels, designed to tackle the most demanding challenges. It offers 12-bit hardware vertical resolution to capture even the finest signal details, exceptionally deep memory, and lightning-fast capture speed to detect rare events. The 16 integrated digital channels make it a powerful and versatile tool for advanced debugging of embedded systems, high-speed bus testing, and power electronics applications.
Key Features:
Bandwidth: 800 MHz
4 analog channels + 16 digital channels with PLA2216 probe (optional)
Vertical resolution: 12 bits (up to 16 bits in high-resolution mode)
Real-time sampling rate: up to 4 GSa/s (single channel)
Memory depth: 100 Mpts (standard), 500 Mpts (optional)
Waveform acquisition rate: up to 1,000,000 wfms/s (record mode)
Vertical sensitivity: 200 μV/div to 10 V/div
Input impedance: 1 MΩ ±1%, 50 Ω ±1%
7″ capacitive multi-touch display (1024×600 px), 256-level grayscale display
Standard interfaces: USB Device & Host, LAN (10/100), HDMI
Advanced features: 2-channel waveform generator (50/100 MHz, optional), Bode plot analysis (with AFG option), serial decoding (RS232, I²C, SPI, CAN, LIN standard; CAN-FD, FlexRay, I²S optional), and web-based control
Standard equipment4 RP3500A passive probes (500 MHz)
Type-C power adapter
USB cable
Ground cable€1,004.00 View Product -
Oscilloscope 4 channles
Rigol MSO1074Z
The Rigol MSO1074Z is a very high quality four channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 70 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet€679.00 View Product -
Oscilloscope 4 channles
Rigol MSO1074Z-S
The Rigol MSO1074Z-S is a very high quality four channel digital storage oscilloscope with built-in 25 MHz bandwidth 2CH arbitrary waveform generator. The scope features a real-time sample rate of up to 1 GSa/s and a bandwidth of 70 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z-S has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet€869.00 View Product -
Oscilloscope 4 channles
Rigol MSO1104Z
The Rigol MSO1104Z is a very high quality four channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet€799.00 View Product -
Oscilloscope 4 channles
Rigol MSO1104Z-S
The Rigol MSO1104Z-S is a very high quality four channel digital storage oscilloscope with built-in 25 MHz bandwidth 2CH arbitrary waveform generator. The scope features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls also offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO1074Z-S has a refresh rate of up to 30.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet€999.00 View Product -
Oscilloscope 2 channels
Rigol MSO2102A
The Rigol MSO2102A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 100 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet€905.00 View Product -
Oscilloscope 2 channels
Rigol MSO2102A-S
The Rigol MSO2102A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 100 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies of up to 25 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet€990.00€1,145.00View Product -
Oscilloscope 2 channels
RIGOL MSO2202A
The Rigol MSO2202A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 200 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet€955.00 View Product -
Oscilloscope 2 channels
Rigol MSO2202A-S
The Rigol MSO2202A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 200 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies of up to 25 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet€1,090.00€1,255.00View Product -
Oscilloscope 2 channels
RIGOL MSO2302A
The Rigol MSO2302A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 300 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet€1,135.00 View Product -
Oscilloscope 2 channels
Rigol MSO2302A-S
The Rigol MSO2302A-S is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s, a bandwidth of 300 MHz and an additional built-in 2CH arbitrary waveform generator for frequencies of up to 25 MHz.
The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2072A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.
Datascheet€1,199.00€1,375.00View Product -
Oscilloscope 2 channels
Rigol MSO4012
100MHz, 2 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 100MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 4 channles
Rigol MSO4014
100MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 100MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 2 channels
Rigol MSO4022
200 MHz, 2 channel, 4 GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 200MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 4 channles
Rigol MSO4024
200MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 200MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 2 channels
Rigol MSO4032
350MHz, 2 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 350MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 4 channles
Rigol MSO4034
350MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 350MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 2 channels
Rigol MSO4052
500MHz, 2 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 500MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 2 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 4 channles
Rigol MSO4054
500MHz, 4 channel, 4GS/s
MSO4000 Series is the new mainstream digital scope to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. – Bandwidth 500MHz – Sample Rate Analog channel up to 4 GSa/s, Digital Channel up to 1 GSa/s(MSO) – Standard Memory depth: Analog channel up to 140 Mpts, Digital Channel up to 28 Mpts(MSO) – 4 Analog Channels, 16 Digital channels(MSO) – Waveform capture rate Up to 110,000 waveforms per second, – Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames) – Lower noise floor, the Min. vertical sensitivity is 1mV/div – Innovative “UltraVision” technology – A variety of Trigger functions – Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels – Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.) – 9 inch WVGA(800X480), 256 level intensity grading display -
Oscilloscope 4 channles
RIGOL MSO5104
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
€1,094.00 View Product -
Oscilloscope 2 channels
RIGOL MSO5152-E
MSO5000-E series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multitouch screen, the MSO5000-E series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO5000-E series products support multiple channels, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
* Analog bandwidth: 150 MHz
* 2 analog channels, 1 EXT channel, and a standard configuration of 16 digital channels (required to purchase the probe)
* Up to 4 GSa/s real-time sample rate
* Up to 100 Mpts memory depth (option)
* High waveform capture rate (over 300,000 wfm/s)
* Auto measurement of 41 waveform parameters; full-memory hardware measurement function
* A variety of serial protocol triggers and decodes
* Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
* Independent search, navigation keys, and event table
* Built-in advanced power analysis software (option)
* Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totalizer, and a protocol analyzer
* 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
* Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
* Web Control remote command
* Unique online version upgrade
* Novel and delicate industrial design, easy to operate€899.00 View Product -
Oscilloscope 4 channles
RIGOL MSO5204
The MSO5000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology
Developed by RIGOL. Integrating 6 independent instruments into one, the MSO5000 series is equipped with super high sample bandwidth ratio of 8 GSa/s, extremely high memory depth of up to 200 Mpts, clear 9″ display, excellent waveform capture rate of 500.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today's inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers.
The MSO5000 series digital oscilloscope launched by RIGOL this time integrates 7 independent instruments into 1, including one digital oscilloscope, one spectrum analyzer, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO5000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL MSO5000-BND function and application bundle option includes:
MSO5000-COMP PC serial bus trigger and analysis (RS232/UART)
MSO5000-EMBD Embedded serial bus trigger and analysis (I2C and SPI)
MSO5000-AUTO Auto serial bus trigger and analysis (CAN and LIN)
MSO5000-FLEX FlexRay serial bus trigger and analysis (FlexRay)
MSO5000-AUDIO Audio serial bus trigger and analysis (I2S) 4 channels models only
MSO5000-AERO MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553)
MSO5000-AWG Dual-channel 25 MHz arbitrary waveform generator
MSO5000-PWR Built-in Power Analysis
Datasheet€1,494.00 View Product -
Oscilloscope 4 channles
RIGOL MSO5354
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with our modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset. With 70 to 350 MHz models each with 2 or 4 analog channels, the MSO5000 Series brings innovative flexibility and capability to the engineer’s bench. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
MSO5000 series digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.
The RIGOL MSO5000-BND function and application bundle option includes:
MSO5000-COMP PC serial bus trigger and analysis (RS232/UART)
MSO5000-EMBD Embedded serial bus trigger and analysis (I2C and SPI)
MSO5000-AUTO Auto serial bus trigger and analysis (CAN and LIN)
MSO5000-FLEX FlexRay serial bus trigger and analysis (FlexRay)
MSO5000-AUDIO Audio serial bus trigger and analysis (I2S) 4 channels models only
MSO5000-AERO MIL-STD-1553 serial bus trigger and analysis (MIL-STD-1553)
MSO5000-AWG Dual-channel 25 MHz arbitrary waveform generator
MSO5000-PWR Built-in Power Analysis
Datasheet€1,994.00 View Product -
Oscilloscope 4 channles
RIGOL MSO7014 + BUNDLE DS7000-BND
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1″ display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today’s inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL DS7000-BND application bundle option includes:
DS7000-COMP (RS232/UART)
DS7000-EMBD (I2C/SPI)
DS7000-AUTO (CAN/LIN)
DS7000-FLEX (FlexRay)
DS7000-AUDIO (I2S)
DS7000-AERO (MIL-STD 1553)
MSO7000-AWG (dual channel WaveGen 25MHz AWG, only for MSO models)
DS7000-PWR (Integrated Power Analysis)€2,795.00 View Product -
Oscilloscope 4 channles
RIGOL MSO7024
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1″ display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today’s inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL DS7000-BND application bundle option includes:
DS7000-COMP (RS232/UART)
DS7000-EMBD (I2C/SPI)
DS7000-AUTO (CAN/LIN)
DS7000-FLEX (FlexRay)
DS7000-AUDIO (I2S)
DS7000-AERO (MIL-STD 1553)
MSO7000-AWG (dual channel WaveGen 25MHz AWG, only for MSO models)
DS7000-PWR (Integrated Power Analysis)€3,595.00 View Product -
Oscilloscope 4 channles
RIGOL MSO7034
MSO7000/DS7000 series is a multifunctional and high-performance digital oscilloscope designed on the basis of the UltraVision II technology developed by RIGOL. Integrating 6 independent instruments into one, the MSO7000/DS7000 series is equipped with super high sample bandwidth ratio of 10 GSa/s, extremely high memory depth of up to 500 Mpts, clear 10.1″ display, excellent waveform capture rate of 600.000 wfms/s, and powerful data analysis functions.
Many of its specifications have reached the top level in the industry. With sound solutions for mainframes, optional & accessories, and application software, it has aroused great attention from customers in the areas such as industrial control, power supply, and automotive electronics.
In today’s inegrated designfield, a highly integrated comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO7000/DS7000 series digital oscilloscope launched by RIGOL this time integrates 6 independent instruments into 1, including one digital oscilloscope, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.
The MSO7000/DS7000 series offers you a flexible and economical solution to address your actual needs.
The RIGOL DS7000-BND application bundle option includes:
DS7000-COMP (RS232/UART)
DS7000-EMBD (I2C/SPI)
DS7000-AUTO (CAN/LIN)
DS7000-FLEX (FlexRay)
DS7000-AUDIO (I2S)
DS7000-AERO (MIL-STD 1553)
MSO7000-AWG (dual channel WaveGen 25MHz AWG, only for MSO models)
DS7000-PWR (Integrated Power Analysis)€4,690.00 View Product -
Oscilloscope 2 channels
RIGOL MSO8074A
750 MHz (50 Ω), 500MHz (1 MΩ), 4 analog channels, 1 EXT channel, 16 digital channels, Real-time sample rate up to 10 GSa/s, Memory Depth up to 500 Mpts, Built-in dual-channel function/arbitrary waveform generator (optional), up to 12-bit vertical resolution, 10.1'' HD touch display
Analog channel bandwidth: 750 MHz (50 Ω), 500MHz (1 MΩ)
4 analog channels, 1 EXT channel, 16 digital channels
Built-in dual-channel function/arbitrary waveform generator (optional)
up to 12-bit vertical resolution
Real-time sample rate up to 10 GSa/s
Memory Depth up to 500 Mpts
10.1'' 1024*600 HD touch display
Web Control and VNC remote command
Waveform histogram analysis (standard)
Auto measurement of 41 waveform parameters€7,895.00 View Product -
Oscilloscope 4 channles
RIGOL MSO8154A
1.5 GHz (50 Ω), 500MHz (1 MΩ), 4 analog channels, 1 EXT channel, 16 digital channels, Real-time sample rate up to 10 GSa/s, Memory Depth up to 500 Mpts, Built-in dual-channel function/arbitrary waveform generator (optional), up to 12-bit vertical resolution, 10.1'' HD touch display
Analog channel bandwidth: 1.5 GHz (50 Ω), 500MHz (1 MΩ)
4 analog channels, 1 EXT channel, 16 digital channels
Built-in dual-channel function/arbitrary waveform generator (optional)
up to 12-bit vertical resolution
Real-time sample rate up to 10 GSa/s
Memory Depth up to 500 Mpts
10.1'' 1024*600 HD touch display
Web Control and VNC remote command
Waveform histogram analysis (standard)
Auto measurement of 41 waveform parameters€9,895.00 View Product
