Showing 61–69 of 69 results
-
Signal Generator
ANRITSU 69037B
The Anritsu 69037B is a used Synthesized CW Signal Generator. The Anritsu 69037B is Anritsu’s premier broadband synthesizer line that offers solutions to any RF and Microwave application. The 69037B offers the highest performance available on the market. The Anritsu 69037B is the leader in lowest phase noise performance.The 68C/69B is Anritsu’s premier broadband synthesizer line that offers solutions to any RF and Microwave application. It offers the highest performance available on the market. It is the leader in lowest phase noise performance.
The Anritsu 69037B is a basic signal source that provides accurate outputs over a wide frequency and power range for Local Oscillator duty and other CW applications.Additional Features:
Frequency range: 2 to 20 GHz
Output power without an attenuator: –15 dBm (–20 dBm typical)
Output power with an attenuator: –120 dBm
Output power with an electronic attenuator: –140 dBm
Ultra-low SSB phase noise and spurious
+17 dBm guaranteed leveled power to 20 GHz
<5 ms switching time for <100 MHz sweep steps Digital frequency sweep and digital power sweep Wide dynamic range with accurate output levels Intuitive, menu-driven front panel DatasheetSKU: n/a -
Power Meter
ANRITSU MA2437A
The ML2437A Power Meter combines the advantages of thermal meter accuracy, diode meter speed, and peak power meter display graphics. The result is a single instrument that samples at more than 35K per second and achieves 90 dB dynamic range with a single sensor. This meter includes graphics display capability as a standard feature. The ruggedized housing and optional high-capacity NiMH battery bring laboratory quality accuracy to field service applications. ML2437A has one input.
DatasheetSKU: n/a -
Power Sensor
ANRITSU MA2472A
Anritsu MA2472A Power Sensor, 10 MHz to 18 GHz, -70 dBm to +20 dBm
The Anritsu MA2472A is a Standard Diode Sensor designed for use with the ML2430, ML2480 and ML2490 series power meters. They are designed for high dynamic range, high accuracy CW and TDMA measurements. These power sensors have 90 dB dynamic range and linearity better than 1.8% making them the choice for precision measurements. The 4 µs rise time of these sensors is fast enough for power measurements on GSM and similar TDMA systems that use GMSK modulation.
Features:Frequency Range: 10 MHz to 18 GHz
Dynamic Range: -70 to +20 dBm
Rise Time: <0.004 ms Sensor linearity: 1.8%, <18 GHz Temperature accuracy (5 to 50 degrees C.): <1.0% RF connector: N(m) Shipping weight: 2 lb; Size: 73 mm x 52 mm x 29 mm DatasheetSKU: n/a -
Power Meter, Power Sensor
ANRITSU ML2437A + ANRITSU MA2473A
The ML2437A Power Meter combines the advantages of thermal meter accuracy, diode meter speed, and peak power meter display graphics. The result is a single instrument that samples at more than 35K per second and achieves 90 dB dynamic range with a single sensor. This meter includes graphics display capability as a standard feature. The ruggedized housing and optional high-capacity NiMH battery bring laboratory quality accuracy to field service applications. ML2437A has one input.
The MA2473A is a used 32 GHz 0.1 Watt RF Sensor from Anritsu. Electronic test equipment sensors measure the power of waveforms, such as multi-tone and modulated radiofrequency (RF) waveforms. Sensors gather highly accurate modulation measurements using diode detectors.
Additional Features:Frequency Range 10 MHz – 32 GHz
Dynamic Range -70 to +20
SWR <1.90; 10 - 50 MHz,<1.17; 50 - 150 MHz,<1.12; 0.15 - 2 GHz,<1.22; 2 - 12.4 GHz,<1.25; 12.4 - 18 GHz, <1.35; 18 - 32 GHz,<1.50; 32 - 40 GHz,<1.63; 40 - 50 GHz RF Connector Type K (m) Sensor linearity 1.8%, <18 GHz 2.5%, <40 GHz 3.5%, <50 GHz Rise time-1(ms) <0.004 DatasheetSKU: n/a -
OPTICAL SPECTRUM ANALYZER

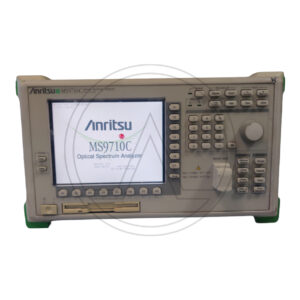

ANRITSU MS9710C
The MS9710C is a diffraction-grating spectrum analyzer for analyzing optical spectra in the 600 to 1750 nm wavelength band. In addition to uses such as measurement of LD and LED spectra, it has functions for measuring the transmission characteristics of passive elements such as optical isolators, as well as NF/Gain of optical fiber amplifier systems. In addition to its basic features, the superior stability and reliability of the diffraction grating (patent pending) offer the severe level and wavelength specifications particularly in the WDM band. This analyzer has the dynamic range, reception sensitivity and sweep speed requested by users, backed by Anritsu’s highlevel technology. The high sensitivity meets the exacting demands placed on today’s measuring instruments. In particular, the excellent wavelength and level specifications fully meet the dense WDM requirements (1520 to 1620 nm). The MS9710C Optical Spectrum Analyzer is the successor to the popular MS9710B but with improved functions and higher performance. The specifications have been upgraded for the important 1.55 µm band for WDM communications and have also been optimised to include the new requirements for the L-band (1570 to 1620 nm) use. In addition to the high reliability and excellent basic performance, this analyzer has a full range of application functions to support accurate measurement in the fastest possible time.
SKU: 478 -
Antenna Analyzer

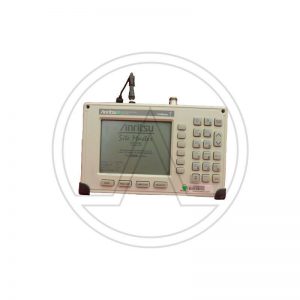

ANRITSU S331D
Site Master Handheld Cable and Antenna Analyzer Model S331D covers the 25 MHz to 4000 MHz spectrum. The S331D is designed for installing, provisioning, maintaining, and troubleshooting wireless base station cable and antenna systems.
Features:
Range di Frequenza: 25 MHz to 4 GHz
Misure: Return Loss / VSWR, Cable Loss, Distance-To-Fault (DTF), Optical DTF
Velocità Sweep: 2.5 msec / data point
Accuratezza: > 42 dB corrected directivity
Display: TFT a colori con retro illuminazione regolabile
Calibrazione: OSL, InstaCal, e FlexCal
RF Immunity: Performs accurate measurements in co-located cell sites
Signal Standard List / Cable Standard List: Quickly locates commonly used cables and frequency standards
Trace Overlay: Monitors changes with reference traces over time
Limit Lines: Single and Segmented Limit lines
Lingue supportate: Chinese, English, French, German, Japanese, Spanish
Handheld Software Tools: Downloads traces, creates reports, compares traces, and renames files
DatasheetSKU: 479 -
Synthesized Sweep Generator
WILTRON ANRITSU 68169B
The Anritsu Wiltron 68169B 40.0 GHz Synthesized Sweep Generator features 10 MHz to 40 GHz analog, step, and manual sweep capability. Output levels to +17 dBm and optional 0.1 Hz resolution. It provides AM and FM via external modulating signals or internal arbitrary waveform generators. The internal generators offer 7 modulating waveforms, including Gaussian noise, as well as user-defined arbitrary waveforms. Pulse modulation parameters can be set externally or by the internal pulse generator. Doublet, triplet, or quadruplet pulses make RADAR blind spot testing easy. Simultaneous synchronized modulations let you set complex signal scenarios across the entire frequency range.
•Frequency Range: 0.01GHz to 40GHz
•Output Power Range: -15dBm to 13dBm
•Power Resolution: 0.01dB
•Output Accuracy: 2dB
•Output Impedance: 50Ohms
•Single Side Band Noise: -96dBc/Hz to -60dBc/Hz
•Internal AM,FM, phase and pulse modulation
•User down-loaded complex modulation
•Self-test, Secure mode, Reset
•Master/slave operation
•360B SS ModeSKU: n/a
-
