Showing 1–30 of 1497 results
-
System DC Power Supply
AGILENT-HP/Keysight 6644A
Output Ratings
Output voltage: 0 to 60 V
Output current (40° C): 0 to 3.5 A
Maximum current (50° C/55° C): 3.2 A/3 AProgramming Accuracy at 25°C ±5°C
Voltage 0.06% + 26 mV
Current 0.15% + 4.1 mARipple & Noise (20 Hz – 20 MHz)
Voltage rms: 500 µV
Voltage peak-to-peak: 5 mV
Current rms: 1.5 mAKeysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 200 W, GPIB 6641A-6645A provide fast, low-noise outputs; analog control of output voltage and current; fan-speed control to minimize acoustic noise; as well as parallel and series connections of multiple units.
The Keysight 210W, GPIB, single output 6644A is a versatile programmable supply designed to maximize test throughput during design verification or on the production line, and is fully programmable to help reduce test time through a variety of automated capabilities.
SKU: n/a -
Dummy Load
DICONEX 17-0412V
DICONEX OIL-COOLED RF COAXIAL TERMINATION / DUMMY LOAD, 10kW 50Ω
This equipment is a very professional dummy load suitable for to be used in laboratory, or broadcast network.
Diconex Series Oil-Cooled Terminations are self-contained high-power 50 ohm coaxial transmission line terminations requiring no outside power source or additional equipment.
The units provide accurate, dependable, and practically non-reflective termination for testing and adjusting transmitters under non-radiating conditions.
The loads consist essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor.
This produces the uniform, practically reflection-less line termination from DC to 1 GHz.
The dummy load works continuously at 5 Kw and intermittent even at 10 kW (max 3-5 min).
The load has a powerful cooling fan, powered at 220 V and an internal heat exchanger.
Input Connector: 1 5/8 “EIA flange
Conditions: Brand new and unusedSKU: n/a -
Dummy Load
DICONEX 17-0412V
DICONEX OIL-COOLED RF COAXIAL TERMINATION / DUMMY LOAD, 5kW 50Ω
This equipment is a very professional dummy load suitable for to be used in laboratory, or broadcast network.
Diconex Series Oil-Cooled Terminations are self-contained high-power 50 ohm coaxial transmission line terminations requiring no outside power source or additional equipment.
The units provide accurate, dependable, and practically non-reflective termination for testing and adjusting transmitters under non-radiating conditions.
The loads consist essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor.
This produces the uniform, practically reflection-less line termination from DC to 1 GHz.
The dummy load works continuously at 5 Kw and intermittent even at 10 kW (max 3-5 min).
The load has a powerful cooling fan, powered at 220 V and an internal heat exchanger.
Input Connector: 1 5/8 “EIA flange
Conditions: Brand new and unusedSKU: n/a -
Dummy Load
DICONEX 17-0410
DICONEX OIL-COOLED RF COAXIAL TERMINATION / DUMMY LOAD, 5kW 50Ω
This equipment is a very professional dummy load suitable for to be used in laboratory, or broadcast network.
Diconex Series Oil-Cooled Terminations are self-contained high-power 50 ohm coaxial transmission line terminations requiring no outside power source or additional equipment.
The units provide accurate, dependable, and practically non-reflective termination for testing and adjusting transmitters under non-radiating conditions.
The loads consist essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor.
This produces the uniform, practically reflection-less line termination from DC to 1 GHz.
The dummy load works continuously at 5 Kw and intermittent even at 10 kW (max 3-5 min).
The load has a powerful cooling fan, powered at 220 V and an internal heat exchanger.
Input Connector: 1 5/8 “EIA flange
Conditions: Brand new and unusedSKU: n/a -
ECONOLAD COAXIAL RESISTOR
BIRD TERMALINE 8745
20 kW, Water-Cooled Terminations
Termaline Series RF Coaxial Terminations
The 8740 Econoload Series water-cooled load resistors are designed as compact, low VSWR and non-radiating terminations for high-power transmitter/transmission line systems. The units generate almost no ambient heat, making installation space minimal and convenient, in any position. The RF power is converted to heat in the hollow resistive film load resistor and directly absorbed by the water flowing through it.Broadband water-cooled load for long-term RF dissipation when heat must be efficiently transferred away from the area
Small size may be carried easily, used in any position and installed anywhere there is a source of potable water
Requires flow rate of up to 8 gallons (30.4 liters) per minuteSKU: n/a -
ECONOLAD COAXIAL RESISTOR
BIRD TERMALINE 8765
Load, Water Cooled 40kW .
Designed as a compact, low VSWR and non-radiating termination
Used with high-power transmitter and transmission line systems
Power Rating: 40kW Continuous
Frequency Range: 1kHz – 900 MHz
Connector: 3-1/8 EIA Flanged
VSWR: 1.10 (max)
Coolant: potable water
3-1/8 EIA Flange allows termination of full 40 kW up to 900 MHz
Requires flow rate of up to 10 gallons (38 liters) per minuteSKU: n/a -
Active Probe
TEKTRONIX TAP2500
TAP2500 is a single-ended active FET probe. It provides excellent high-speed electrical and mechanical performance required for today’s digital system designs. It is an easy access to oscilloscope probe menu display for probe status/diagnostic information and to control probe DC offset. It provides truer signal reproduction and fidelity for high-frequency measurements. It is specifically designed for use and direct connection to oscilloscopes with the TekVPI™ probe interface, the TAP2500 active FET probes achieve high-speed signal acquisition and measurement fidelity by solving three traditional problems they are lower DUT loading effects with ≤0.8pF input capacitance and 40kΩ input resistance, versatile DUT connectivity for attaching to small SMDs and preserves instrument bandwidth at the probe tip for up to 3.5GHz oscilloscopes.
High probe bandwidth
Fast probe rise time
Excellent signal fidelity
Small compact probe head for probing small geometry circuit elements
Robust design for reliability
Connects directly to oscilloscopes with the TekVPI™ probe interface
Provides automatic units scaling and readout on the oscilloscope display
Remote GPIB/USB probe control through the oscilloscope
DatasheetSKU: n/a -
Modulation Analyzer
HP-Agilent/Keysight 8901B
Measures AM and FM to 1% accuracy
Adjacent-channel power measurement capability
Measures RF power with power meter accuracy
Audio measurement capabilitiesReplacement Solutions for the 8901B
The 8901B modulation analyzer combines the capabilities of several RF instruments to give complete, accurate characterization of modulated signals in the 150 kHz to 1300 MHz frequency range. It very accurately measures modulation and recovers the modulation signal, determines RF frequency and meaures RF power. The major additional capabilities of the 8901B are its improved power-meter accuracy, its ability to make adjacent-channel power measurements or carrier-noise measurements (with Options 030 through 037), and its ability to count audio frequencies and measure distortion on 400 Hz and 1 kHz signals.
Measures AM and FM to 1% accuracy
Adjacent-channel power measurement capability
Measures RF power with power meter accuracy
Audio measurement capabilitiesSKU: n/a -
Audio Analyzer
HP-Agilent/Keysight 8903B
Measures distortion, SINAD, signal-to-noise
Measures true-rms ac volts, dc volts, frequency
Low-distortion programmable source
rms, average, and quasi-peak detectionThe Keysight Technologies 8903B audio analyzer provides unparalleled versatility and performance for audio measurements from 20 Hz to 100 kHz. The 8903B combines the functionality of a low-distortion audio source, high-performance distotion analyzer, frequency counter, ac voltmeter, dc voltmeter, and SINAD meter into one compact package. With microprocessor control of source and analyzer, the 8903B can perform stimulus-response measurements (such as signal-to-noise ratio and swept distortion) automatically with no additional equipment. For ease of use, most measurements on the 8903B are made with only one or two keystrokes. The 8903B automatically tunes and autoranges for maximum accuracy and resolution. For quick identification of input signals, the analyzer counts and displays the input frequency in all ac measurement modes.
Measures distortion, SINAD, signal-to-noise
Measures true-rms ac volts, dc volts, frequency
Low-distortion programmable source
rms, average, and quasi-peak detectionSKU: n/a -
Four Channel Digital Phosphor Oscilloscope
Tektronix TDS784D
The TDS784D Digital Phosphor Oscilloscope
Digital Phosphor Oscilloscopes deliver a level of insight that makes dealing with complex signals elementary.
DPOs capture, store, display and analyze, in real time, three dimensions of signal information: amplitude, time and distribution of amplitude over time. The benefit of this third dimension of information is an interpretation of the signal dynamics, including instantaneous changes and the frequency of occurrence displayed in the form of quantitative intensity information.
The resulting information-rich display enables the user's eye to integrate the subtle patterns and variations of actual signal behavior.
Easy to Learn and Easy to UseExtensive user interface design has made the TDS784D truly intuitive to operate. Its familiar front panel layout offers dedicated vertical, horizontal and trigger controls. A graphical user interface with over 200 icons helps facilitate understanding and use of the advanced features. A color monitor helps rapidly distinguish between multiple waveforms and measurements. Online help provides a convenient built-in reference manual.
High Fidelity Signal AcquisitionThe high waveform capture rate of the TDS784D DPO, together with its high bandwidth and sample rate, delivers instantaneous signal feedback to show the true signals that other scopes may be missing. The DPO acquisition acquires over 1,000 times more data than traditional DSOs, allowing the capture of complex signals, reducing debugging times from hours to seconds.
Channels can be transparently combined to achieve higher sample rates and longer record lengths. The record length can be optionally increased to 8 M points, providing a high-resolution representation of the signal over a long period of time.
The TDS784D also provides wide dynamic range, flat response, fast overdrive recovery, calibrated DC offset, 1 mV/div sensitivity, 1 ns peak detect and internal calibration.
Features & Benefits
1 GHz Bandwidth
Sample Rate to 4 GS/s
200,000 Maximum Waveform Capture Rate
4 Channels
1% Vertical Accuracy
8-Bit Vertical Resolution, Over 11 Bits with Averaging and Over 13 Bits with Hi-res
1 ns Peak Detect
1 mV/div to 10 V/div Sensitivity
Channel Deskew
Record Lengths to 8 M Points
Floppy Disk Storage
Iomega Zip and Zip Plus Drive Compatible
Advanced Triggering
29 Automatic Measurements and Measurement Statistics
FFT and Advanced Math
Histograms
Histogram Statistics
Limit Test
FastFrame™ Time Stamp
Communication Signal Analysis Including Mask Testing and SONET/SDH and Fibre Channel Optical Reference Receivers
Full GPIB Programmability
3 Year Warranty
CE MarkingApplications
Communication Compliance Testing
Digital Design and Debug
Jitter and Timing Analysis
Fast Edge Characterization
Video Design and Debug
Disk Drive Measurements
Power MeasurementsSKU: n/a -

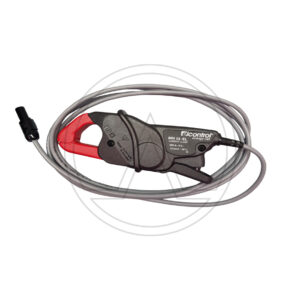

Current Clamp
ELCONTROL MN13-EL
Amperometric mini-clamp for AC currents from 0.5 A
to 200 A with with reduced dimensions and high
ergonomics.
The MN13 current clamp can be used on all
analyzers of the NanoVIP® family to measure AC currents
up to 200 A; it is equipped with an automatic recognition
system by the analyzer that makes its setting very simple.
The particularly compact dimensions make it a highly
ergonomic tool, easy to place and with minimal space
requirements.SKU: n/a -

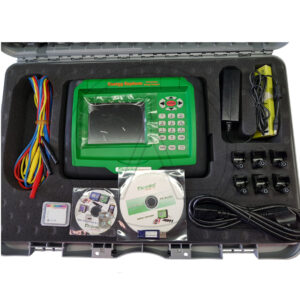

Professional Energy Analyzer
ELCONTROL ENERGY EXPLORER
All companies need to understand the consumption of their electrical system, its components, or specific loads. In the absence of a fixed network of energy analyzers, and with greater flexibility than one, measurements can be performed with a portable energy analyzer.
This instrument must be able to highlight any harmonic distortions, which are now common in modern electrical systems, and possibly examine the start-up phase of electric motors.
Energy Explorer is a portable energy analyzer, the result of Elcontrol Energy Net’s experience in measuring electricity consumption. It can break down consumption into multiple hourly tariffs and synchronize with the utility’s meter to detect tariff changes.
It is equipped with alarms and pulse outputs.
Thanks to its extremely fast sampling rate, it can reconstruct the start-up curve of an electric motor.
It performs harmonic analysis of voltage and current up to the 31st order.
It can display the minimum, maximum, and average value for each RMS measurement.
Equipped with a 320×240 pixel LCD graphic display, it can show real-time measurement trends and historical data. An external printer allows printing of measurements. The P E Studio software allows for PC analysis of the measured values.SKU: n/a -

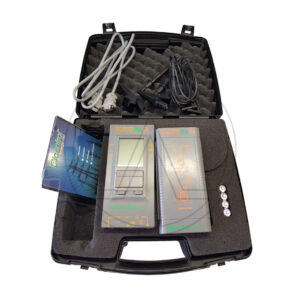

Power & Harmonic Analyzer
ELCONTROL NANOVIP PLUS
The NANOVIP PLUS is a truly portable electrical energy analyzer for balanced single-phase and three-phase systems.
The NANOVIP PLUS can measure more than 100 key parameters and display them on a large, high-contrast LCD display.
Measurements also include Harmonic Analysis from 1 to 24 and DC measurements (using a DC clamp).
The high-speed serial port and dedicated NANOWIN software add further power to the Nanovip Plus, allowing for complete graphical display and analysis of measurement data, both as real-time measurements and by transferring measurement data to a PC’s hard drive.
Extreme portability, excellent performance—not only in terms of available functions, but above all in terms of accuracy and reliability—
– best price/performance ratio: the Nanovip
Plus should be in every electrical installer’s toolkit!SKU: n/a
-
