Showing all 5 results
-
Pulse Generator

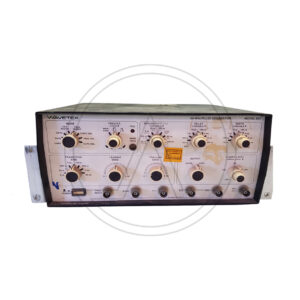

WAVETEK 801
The Wavewek Model 801 is a 50 MHz general purpose laboratory pulse generator. The instrument gives you full control in primary pulse triggering and shaping plus simultaneous TTL, ECL, ECLand sync pulses. The primary pulse output has controllability in offset and independent rise/fall durations, as well as pulse width, pulse delay and a choice of positive, negative or complementary outputs. The TTL, ECL and ECLare of fixed levels and rise times that are standard for use with compatible devices. The primary pulse has minimum rise and fall times of 7 ns and a maximum of 250 ms.
The output is ± 20 volts with 50 ohms source impedance which provides ± 10 volts into a 50 ohms load. Upper and lower pulse levels are fully adjustable through ± 20 volts.
External triggering can be set to any point of the rising or trailing edge of the trigger signal. Single pulses or pulse pairs may be triggered; pulse width may be trigger controlled; continuous pulses may be gated and a precise number of pulses may be triggered for a ‘burst’ output. Manual and external triggering is indicated by an LED on the front panel for rapid visual set of trigger level.
SKU: n/a -
Pulse Generator
WAVETEK 802
The Wavetek 802 Pulse Generator is a highly versatile and reliable electronic instrument used in various applications. It is designed to generate precise and accurate pulse signals with adjustable frequency, amplitude, and width. This pulse generator offers a wide frequency range and can produce pulses with durations ranging from nanoseconds to milliseconds. The WAVETEK 802 is equipped with multiple output channels, allowing users to generate different pulse waveforms simultaneously. It also features intuitive controls and a user-friendly interface, making it easy to operate and customize the pulse signals according to specific requirements. With its exceptional performance and flexibility, the WAVETEK 802 Pulse Generator is an essential tool for professionals working in fields such as telecommunications, research and development, and electronic testing.
Specifications:
– Model: WAVETEK 802
– Frequency Range: 0.2 Hz to 2 MHz
– Output Waveforms: Sine, Square, Triangle, and Ramp
– Output Amplitude: 25 mV to 20 V peak-to-peak
– Output Impedance: 50 ohms
– Frequency Accuracy: ± 0.005%
– Amplitude Accuracy: ± 2%
– Modulation Types: AM, FM, and PWM
– Modulation Frequency Range: 1 Hz to 20 kHz
– Modulation Depth: up to 100%
– Power Supply: 115/230 VAC, 50/60 Hz
– Dimensions: 8.5″ x 5.4″ x 13.5″ (H x W x D)
– Weight: 10 lbs
– Display: LCD with backlitSKU: n/a -
Peak Power Meter
WAVETEK 8502A
30 MHZ to 40 GHz Frequency Range
High Instrumentation Accuracy ±3%(±0.13dB)
Graph Mode for Plot of Pulse Profile
Full GPIB Control
Complete Family of Low VSWR SensorsThe Willitek / Wavetek 8500 Series of Peak Power Meters is designed for making highly accurate power measurements on pulsed RF signals independent of pulse width or rep rate of the pulses. Single channel and dual channel versions are available. The pulse profile can be displayed on the LCD screen along with the main measurement parameters. Pulses as narrow as 15 ns can be displayed and measured.
A family of diode power sensors complements the power meter. To minimize mismatch errors, each of the sensors has a low VSWR. In addition each sensor includes a built-in PROM which has been programmed with frequency response information for that particular power senor. Both fast risetime (high speed) and slow risetime (low speed) senors are available. Rackmount (5.25 Inches high) and bench top units are available. The power senors inputs and calibrator output can be on the front or the rear of the instrument.
SKU: n/a -
Senza categoria
WAVETEK SAM 4040
The WAVETEK SAM 4040 is an Advanced HFC Signal Analysis Meter 5 Mhz to 1 GHz.
Wavetek’s SAM 4040, a next generation signal analysis meter, is more like a hand-held broadband communication service monitor, with a broad scope of practical test capabilities. It performs essential cable TV system preventive maintenance tests with accuracy and ease. Signal levels, hum, and C/N can be quickly tested without interrupting subscribers reception. In no time, technicians are up and running the full range of tests with unprecedented speed. The hand-held, lightweight, rugged, and water resistant SAM 4040 utilizes down-sized electronics including surface mount components and multilayer PC boards. The measurement information is clearly displayed on a high resolution (320 X 240) LCD.
The SAM 4040 is the first signal level meter available with Wavetek’s trademarked Sweepless Sweep, in which active system carriers are measured and compared to a stored reference to
determine system frequency response.SKU: n/a
-
