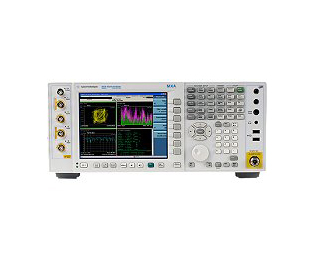

HP-Agilent/Keysight N9020A

Functionality – 10 Hz to 3.6, 8.4, 13.6, or 26.5 GHz- extend frequency to 110 GHz with Keysight’s smart mixers and up to 1.1 THz with other vendors’ mixers – 25 MHz (standard)- 40, 85, 125 or 160 MHz analysis bandwidth – Fast sweep capability ships standard on new instruments equipped with Option B40, DP2, or MPB- fast power measurements available as Option FP2 – Real-time spectrum analyzer capabilities with 100% probability of intercept for signal duration as short as 3.57 µs Performance – ±0.23 dB absolute amplitude accuracy – -114 dBc/Hz phase noise at 10 kHz offset- +20 dBm third order intercept (TOI) – -166 dBm displayed average noise level (DANL) with preamplifier and get up to 10 dB further improvement with Noise Floor Extension (Option NFE) – -78 dB W-CDMA ACLR dynamic range (with noise correction on) Measurement applications & software – Supports >25 measurement applications, covering cellular communication, wireless connectivity, digital video and general purpose – Advanced analysis of more than 75 signal formats, software runs inside the MXA with 89600 VSA software – MATLAB data analysis software for general purpose data analysis, visualization, and measurement automation. – Keysight’s PowerSuite one-button power measurements included as standard Automation & communication interface – LXI compliant, SCPI and IVI-COM – USB 3.0, 1000Base-T LAN, GPIB – Programming remote language compatibility with PSA, 8566/68, and 856x – Common X-Series user interface / Open Windows 7 operating system (standard) – – Migrate your existing MXA from Windows XP to Windows 7
