Showing 1–30 of 45 results
-
Network Analyzer
HP/Agilent-Keysight 8753D
The HP 8753D is a vector network analyzer and it offers even more flexibility and measurement capability than the HP 8752C in the following areas:
* Frequency range from 30 kHz to 3 GHz.
* Built-in S-parameter test set provides complete forward and reverse measurements, allowing you to completely characterize your component with a single connection.
* 50 and 75 ohm solutions.
* Superb accuracy. The most comprehensive calibration available guarantees accurate measurements. TRL**nRMt makes calibration in non-coaxial environments easier and more convenient.
* Mixer testing. Quickly and easily characterize frequency translating devices such as mixers.
* Add swept harmonic measurements. Characterize amplifter parameters – gain, 1 dB compression, match – and 2nd and 3rd harmonic distortion with the same test setup.
* Built-in 3.5 inch floppy disk drive provides convenient storage of instrument states and data.
* Parallel and serial ports provide interfaces to popular printers and plotters. The parallel port can also be used as a general U0 bus, with user-controllable TI'L inputs and outputs. Users can also connect a DIN keyboard to speed up entry of titles, labels, or file names, and for remote hnt panel operation.Two excellent choices, the HP 8752C and HP 8753D continue the tradition of affordable excellence in RF component measurements for the lab and production test areas. The HP 8752C and HP 8753D network analyzers bring superior performance and useful productivity features to simplify and speed your device, component, or network measurements in the 30 kHz to 6 GHz frequency range. A swept synthesized source, sensitive receiver, and crisp color display ensure rapid, accurate, and easy-to-read test results. Since the HP 8752C and HP 8753D are vector network analyzers, they not only provide magnitude and phase information, but also offer up to 1 10 dB dynamic range, make group delay and time domain measurements, and utilize vector accuracy enhancement to minimize measurement uncertainty.
DatasheetSKU: n/a -
Network Analyzer
HP-Agilent/Keysight 8410C
The Keysight 8410C is a used 110 MHz to 18 GHz, Network Analyzer Mainframe. The Keysight 8410C, Network Analyzer Mainframe, is the mainframe for display plug-in units. Includes tuning circuits, IF amplifiers and precision IF attenuator.
The Keysight HP 8410C, Network Analyzer Mainframe, allows injection of an external local oscillator used in automatic applications to lock the 8410C receiver to an external source such as an HP 3335A Synthesizer/Level Generator.
SKU: n/a -
Network Analyzer

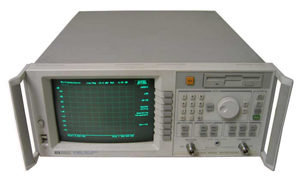

HP-agilent/Keysight 8712ET
Narrowband and broadband detection
100 dB dynamic range
Real-time sweep speeds (40 ms/sweep)
Integrated T/R test set
Synthesized source with 1-Hz resolution
Standard LAN interface
Standard Internal Keysight Instrument BASIC (IBASIC)
Standard 2, 6, and 12-port switching test sets availableThe Keysight 8712ET features a built-in transmission/reflection test set with a full range of magnitude and phase measurements. Two independent channels can measure and display two device parameters, such as transmission and reflection response, in a variety of formats including complex impedance, SWR, and delay, on rectangular, polar or Smith-chart displays. These analyzers also employ vector-error-correction techniques to enhance measurement accuracy.
For a wider range of output power levels to test active devices and components, Option 1E1 adds a 60-dB step attenuator as a standard feature, which extends the lowest power-level setting to -60 dBm. Both 50-ohm and 75-ohm versions are available.
SKU: n/a
-
Network Analyzer
HP/Agilent-Keysight 8753D
The HP 8753D is a vector network analyzer and it offers even more flexibility and measurement capability than the HP 8752C in the following areas:
* Frequency range from 30 kHz to 3 GHz.
* Built-in S-parameter test set provides complete forward and reverse measurements, allowing you to completely characterize your component with a single connection.
* 50 and 75 ohm solutions.
* Superb accuracy. The most comprehensive calibration available guarantees accurate measurements. TRL**nRMt makes calibration in non-coaxial environments easier and more convenient.
* Mixer testing. Quickly and easily characterize frequency translating devices such as mixers.
* Add swept harmonic measurements. Characterize amplifter parameters – gain, 1 dB compression, match – and 2nd and 3rd harmonic distortion with the same test setup.
* Built-in 3.5 inch floppy disk drive provides convenient storage of instrument states and data.
* Parallel and serial ports provide interfaces to popular printers and plotters. The parallel port can also be used as a general U0 bus, with user-controllable TI'L inputs and outputs. Users can also connect a DIN keyboard to speed up entry of titles, labels, or file names, and for remote hnt panel operation.Two excellent choices, the HP 8752C and HP 8753D continue the tradition of affordable excellence in RF component measurements for the lab and production test areas. The HP 8752C and HP 8753D network analyzers bring superior performance and useful productivity features to simplify and speed your device, component, or network measurements in the 30 kHz to 6 GHz frequency range. A swept synthesized source, sensitive receiver, and crisp color display ensure rapid, accurate, and easy-to-read test results. Since the HP 8752C and HP 8753D are vector network analyzers, they not only provide magnitude and phase information, but also offer up to 1 10 dB dynamic range, make group delay and time domain measurements, and utilize vector accuracy enhancement to minimize measurement uncertainty.
Datasheet -
Network Analyzer
HP-Agilent/Keysight 8410C
The Keysight 8410C is a used 110 MHz to 18 GHz, Network Analyzer Mainframe. The Keysight 8410C, Network Analyzer Mainframe, is the mainframe for display plug-in units. Includes tuning circuits, IF amplifiers and precision IF attenuator.
The Keysight HP 8410C, Network Analyzer Mainframe, allows injection of an external local oscillator used in automatic applications to lock the 8410C receiver to an external source such as an HP 3335A Synthesizer/Level Generator.
-
Network Analyzer
HP-agilent/Keysight 8712ET
Narrowband and broadband detection
100 dB dynamic range
Real-time sweep speeds (40 ms/sweep)
Integrated T/R test set
Synthesized source with 1-Hz resolution
Standard LAN interface
Standard Internal Keysight Instrument BASIC (IBASIC)
Standard 2, 6, and 12-port switching test sets availableThe Keysight 8712ET features a built-in transmission/reflection test set with a full range of magnitude and phase measurements. Two independent channels can measure and display two device parameters, such as transmission and reflection response, in a variety of formats including complex impedance, SWR, and delay, on rectangular, polar or Smith-chart displays. These analyzers also employ vector-error-correction techniques to enhance measurement accuracy.
For a wider range of output power levels to test active devices and components, Option 1E1 adds a 60-dB step attenuator as a standard feature, which extends the lowest power-level setting to -60 dBm. Both 50-ohm and 75-ohm versions are available.
-
Network Analyzer
HP/Agilent-Keysight 8753D
The HP 8753D is a vector network analyzer and it offers even more flexibility and measurement capability than the HP 8752C in the following areas:
* Frequency range from 30 kHz to 3 GHz.
* Built-in S-parameter test set provides complete forward and reverse measurements, allowing you to completely characterize your component with a single connection.
* 50 and 75 ohm solutions.
* Superb accuracy. The most comprehensive calibration available guarantees accurate measurements. TRL**nRMt makes calibration in non-coaxial environments easier and more convenient.
* Mixer testing. Quickly and easily characterize frequency translating devices such as mixers.
* Add swept harmonic measurements. Characterize amplifter parameters – gain, 1 dB compression, match – and 2nd and 3rd harmonic distortion with the same test setup.
* Built-in 3.5 inch floppy disk drive provides convenient storage of instrument states and data.
* Parallel and serial ports provide interfaces to popular printers and plotters. The parallel port can also be used as a general U0 bus, with user-controllable TI'L inputs and outputs. Users can also connect a DIN keyboard to speed up entry of titles, labels, or file names, and for remote hnt panel operation.Two excellent choices, the HP 8752C and HP 8753D continue the tradition of affordable excellence in RF component measurements for the lab and production test areas. The HP 8752C and HP 8753D network analyzers bring superior performance and useful productivity features to simplify and speed your device, component, or network measurements in the 30 kHz to 6 GHz frequency range. A swept synthesized source, sensitive receiver, and crisp color display ensure rapid, accurate, and easy-to-read test results. Since the HP 8752C and HP 8753D are vector network analyzers, they not only provide magnitude and phase information, but also offer up to 1 10 dB dynamic range, make group delay and time domain measurements, and utilize vector accuracy enhancement to minimize measurement uncertainty.
Datasheet -
Network Analyzer
HP-Agilent/Keysight 8410C
The Keysight 8410C is a used 110 MHz to 18 GHz, Network Analyzer Mainframe. The Keysight 8410C, Network Analyzer Mainframe, is the mainframe for display plug-in units. Includes tuning circuits, IF amplifiers and precision IF attenuator.
The Keysight HP 8410C, Network Analyzer Mainframe, allows injection of an external local oscillator used in automatic applications to lock the 8410C receiver to an external source such as an HP 3335A Synthesizer/Level Generator.
-
Network Analyzer
HP-agilent/Keysight 8712ET
Narrowband and broadband detection
100 dB dynamic range
Real-time sweep speeds (40 ms/sweep)
Integrated T/R test set
Synthesized source with 1-Hz resolution
Standard LAN interface
Standard Internal Keysight Instrument BASIC (IBASIC)
Standard 2, 6, and 12-port switching test sets availableThe Keysight 8712ET features a built-in transmission/reflection test set with a full range of magnitude and phase measurements. Two independent channels can measure and display two device parameters, such as transmission and reflection response, in a variety of formats including complex impedance, SWR, and delay, on rectangular, polar or Smith-chart displays. These analyzers also employ vector-error-correction techniques to enhance measurement accuracy.
For a wider range of output power levels to test active devices and components, Option 1E1 adds a 60-dB step attenuator as a standard feature, which extends the lowest power-level setting to -60 dBm. Both 50-ohm and 75-ohm versions are available.
