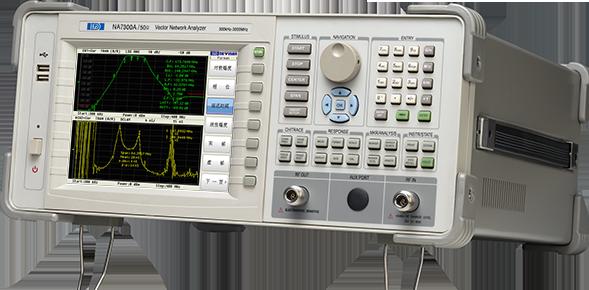

Wellzion NA7300

Quick Details • Frequency Range:300 kHz ~ 3 GHz • Frequency Stability:¡Ü¡À5 ppm • Frequency Resolution:1 Hz • Dimension:400 mm * 220 mm * 470 mm • Weight:15 kg Specifications NA7300 is mainly applied for Communication, Satellite, Wireless TV & Broadcast and CATV industries. Overview NA7300 is mainly applied for Communication, Satellite, Wireless TV & Broadcast and CATV industries. Main Testing Functions Transmission, Insertion Loss, Gain, Insertion Phase, Isolation, Group Delay, Return Loss, VSWR, Impedance, Center Frequency of Crystal, surface acoustic, 3dB Bandwidth, In-band flatness, Out- band Restrain, Rectangle Coefficient, Q-Value and so on. Features and Benefits • Two channels, Four traces display • Fast sweep time • Save/ print/ recall function • USB, parallel, RS-232 and VGA,LAN interface • Automatic PASS/FAIL judgement Application NA7300 is the best combination of high speed, accuracy, productive and low cost. It helps reduce the testing time, increase output, and lower the overall cost of components. The analyzer is qualified in testing typical RF components such as: Filter, Amplifier, Antennas, Cables, Taps, and Splitters. Communication: Antenna, Amplifying Module, Coaxial Cable, Connector and so on Satellite TV: Amplifiers, Spliters and so on. Wireless Broadcasting & TV: Antenna, Transmitter CATV: Amplifiers, Spliters and so on.
