Showing 571–600 of 1497 results
-
Power Sensor
HP-Agilent/Keysight 8484A
The HP/Agilent 8484A is a diode power sensor is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the 435A/B, 436A, 437A/B, and 438A power meters. It is a high sensitivity sensor operating from 10 MHz to 18 GHz at power levels from -70 to -20 dBm. The 8484A High Sensitivity Power Sensor measures power from 0.1nW to 10 uW over a frequency range of 10MHz to 18GHz.
SKU: 1287 -
Power Sensor
HP-Agilent/Keysight 8485A
HP AGILENT KEYSIGHT 8485A POWER SENSOR 50 MHz to 26.5 GHz
The 8485A power sensor is designed for use with the 435A/B, 436A, 437A, 438A, 70100A, EPM series, EPM-P series, E1416A, N1911A, N1912A, N1913A, and N1914A power meters. The 8485A provides extraordinary accuracy, stability, and lower SWR.
• Excellent SWR for reducing mismatch uncertainty
• Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
• Compatible with EPM, EPM-P and P-series power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter
• Accurate average power measurements over -30 to +20 dBm
• Frequency range 50 MHz to 26.5 GHz
• Thermocouple power sensing element
• Measurement range: 1 µW to 100 mW ( -30 dBm to +20 dBm)
• 50 ohm impedance
• 3.5 mm(m) connector
DatasheetSKU: n/a -
Power Sensor
HP-Agilent/Keysight 8485D
The 8485D diode power sensor measures average power over the frequency range 50 MHz to 26.5 GHz and power range -70 to -20 dBm (50 dB dynamic range).
Excellent SWR for reducing mismatch uncertainty
Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter
Accurate average power measurements over -70 to -20 dBm
Frequency range 50 MHz to 26.5 GHz
Diode power sensing element
DatasheetSKU: 1062 -

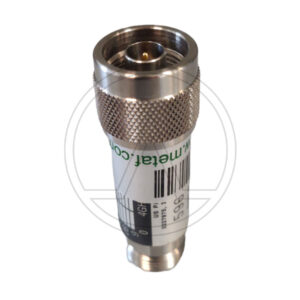

Coaxial Fixed Attenuator
HP-Agilent/Keysight 8491A
The Keysight 8491A coaxial fixed attenuator provides precise attenuation, flat frequency response, and low SWR over broad frequency ranges. The attenuator has type-N connectors and is available in nominal attenuations of 3 dB and 6 dB, as well as 10 dB increments from 10 dB to 60 dB. This swept-frequency tested attenuator ensures specification compliance at all frequencies. A nameplate chart attached to each unit lists calibration points.
Superior RF PerformanceFrequency Range: DC to 12.4 GHz
Maximum SWR: 1.2 to 4 GHz, 1.3 to 12.4 GHzPower Handling
Maximum Input Power: 2 W (average), 100 W (peak)
Features
Connector: Type-N male, female
SKU: n/a -
Test Set
HP-Agilent/Keysight 85046A
The Agilent 85046A test set provides the capability to simultaneously measure the transmission and reflection characteristics of 50 ohm devices. The test set is controlled from the analyzer and includes programmable step attenuators. It can be used with the Agilent 8753A/B/C, 8753D/E/ES Option 011, 4395, 4396 and selected 8702 lightwave component analyzer configurations. – Provides the capability to measure reflection and transmission characteristics (including S-parameters) of two-port devices in either direction with a single connection. – Includes a programmable step attenuator – Frequency range 300 kHz to 3 GHz – Contains precision 7 mm connectors
SKU: 298 -
Microwave Network Analyzer
HP-Agilent/Keysight 85107B , 8510C , 85102B , 85101C , 8517B
HP 85107B 230 MICROWAVE NETWORK ANALYZER, 45 MHz to 50 GHz.
Complete with:
HP 8510C NETWORK ANALYZER
HP 85102B IF / DETECTOR
HP 8517B S-PARAMETER TEST SET 45 MHz-50GHz OPT 007
HP 85133-60016 2.4mm (f) FLEXIBLE TEST PORT CABLE Qty.2
HP 83651B SYNTHESIZED SWEEPER 10MHz – 50GHz 8360B Qty.1
ACCESSORIES:
Qty.1 INTELLIGENT INTERFACES MICROPRINT45CH VARIABLE RESOLUTION HP-GL / COLOR / SPEED MODES HP-IP TO PARALLEL INTERFACE CONVERTER;
Qty.1x WG K420 GPIB CABLE;
Qty.2x HP 10833A GPIB CABLE;
Qty.1x HP 08510-60101 IF INTERCONNECT DISPLAY;
Qty.1x HP 08510-60102 TEST SET – IF INTERCONNECT;
Qty.2x HP 10503A BNC CABLE;
Qty.1x HP 8710-1764 8lb-in;
Qty.1x HP 8710-1770 9/16 – 1/2;
Qty.1x HUBER & SUHNER SUCOFLEX 104P FLEXIBLE MICROWAVE CABLE ASSEMBLY;
Qty.5x ADAPTER.
DatasheetSKU: n/a
-
