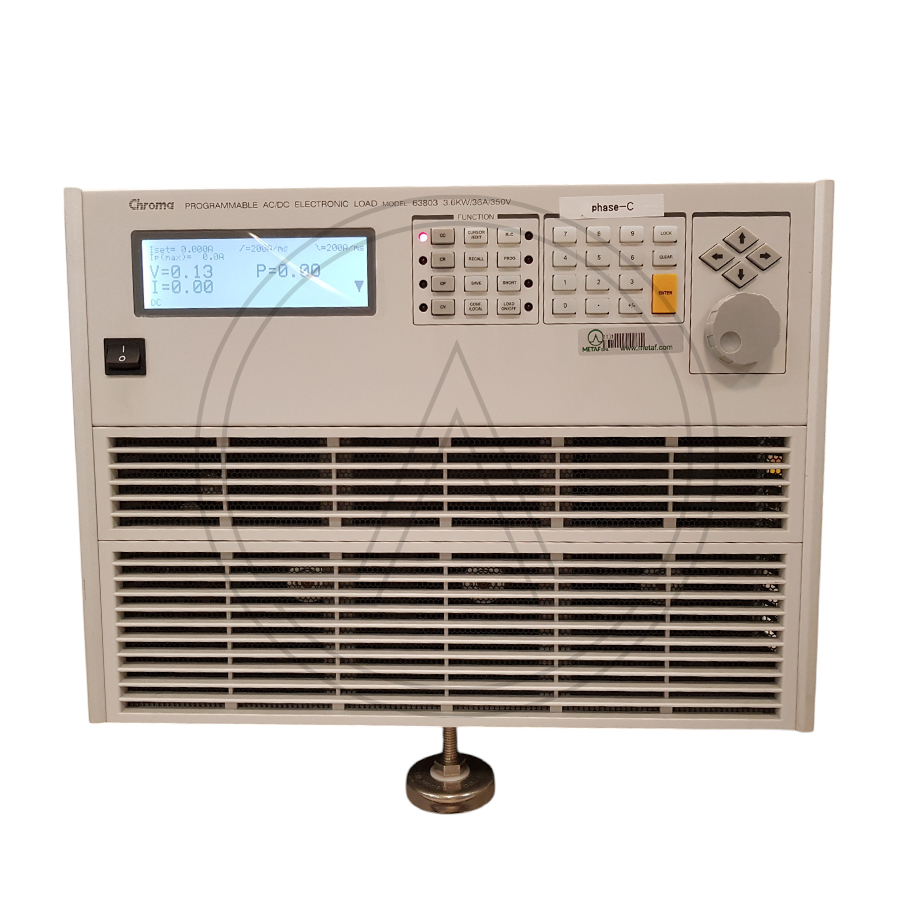

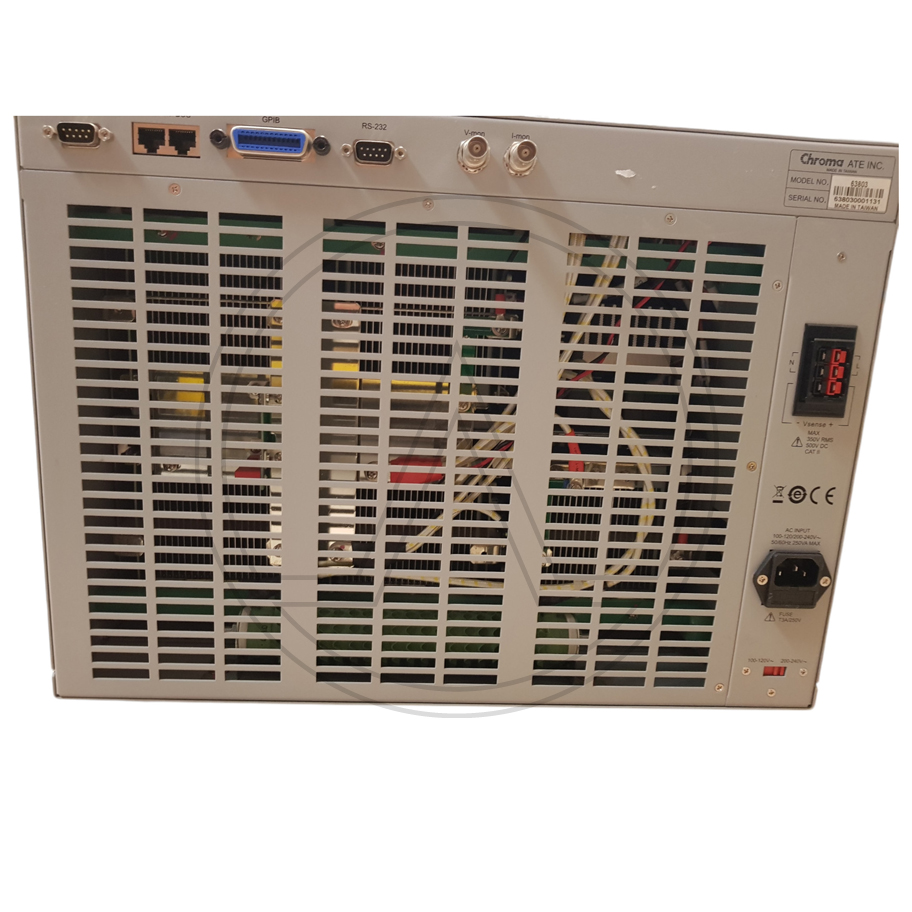

CHROMA 63803

The Chroma 63803 Load can simulate load conditions under high crest factor and varying power factors with real time compensation even when the voltage waveform is distorted. This special feature provides real world simulation capability and prevents over-stressing thereby giving reliable and unbiased test results.
Specifications:

Single
3.6 kW
350 V
36 A

Power Rating: 3600W
Voltage Range: 50V to 350Vrms
Current Range: Up to 18Arms, 36Arms, 45Arms
Peak Current: Up to 54A, 108A, 135A
Parallel / 3-Phase Function
Frequency Range: 45 to 440Hz, DC
Crest Factor Range: 1.414 to 5.0
Power Factor Range: 0 to 1 lead or lag (Rectified mode)
CC, CR, CV, CP for DC Loading
Constant & Rectified Load Modes for AC Loading
Analog Voltage & Current Monitor
Timing Measurement for Battery, UPS, Fuse and Breaker tests
Measurement: V, I, PF, CF, P, Q, S, F, R, Ip+/- and THDv
Short circuit simulation
Full Protection: OC, OP, OT protection and OV alarm
GPIB & RS-232 included
