Showing 31–60 of 130 results
-

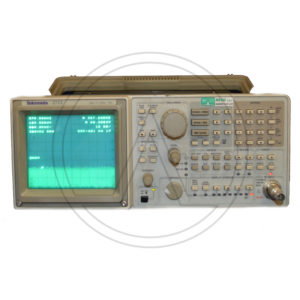

Spectrum Analyzer
Tektronix 2715
The synthesized spectrum analyzer Tektronix 2715 was created to measurement needs of television channels with an infinite number of possibilities of automatic measurements for TV. In addition to having special features for measures TV, the 2715 is also a more than performance spectrum analyzer, fully programmable, storage capacity of 108 screens.
The 2715 Cable TV Spectrum Analyzer now includes automated tests for both analog and digitally-modulated channels. When you are ready to begin installing digital transmission of video, data or voice, the 2715 is ready to help.
After setting up the 2715 with the new, companion Cable TV RF Measurement Software for Windows, the analyzer automatically determines the correct measurements for each channel type – analog, digital, FM or pilot.> Very accurate in frequency.
> Demodulator: AM-FM-TV
> Max. Frequency: 1.8 GHz
> Min. Frequency: 9 kHz> In-service Measurements Minimize Program Interruption, Reduce Cost of Acquiring > Performance Data – Compatible with NTSC and PAL Systems
> Digital Channel Measurements Are Ready When You Are – Characterize Averaged > Power; Check Noise and Distortions that Can Worsen BER – Applicable to QAM, QPSK, QPR, VSB and OFDM Signals
> Addresses All FCC Proof of Performance Measurements
> Cable TV Measurements Enhance Measurement Repeatability and Reduce Technician Training Time
> Carrier Level, Carrier Frequency, Carrier-to-noise, Hum/LFD and Other Key
> Measurements Execute Automatically from Easy-to-use, On-screen Menu
> Unattended and Remote Measurement Modes Reduce Personnel Requirements in the Field
> 75 Ohm Input with Quick-change F and BNC Connectors Reduce Repair Costs and Minimize Down Time
> Enhanced Troubleshooting Power with Built-in Preamplifier, Audio and Video Demodulation – All Standard
> Frequency Coverage to 2.15 GHz, with Opt. 50 and 75, Can View Downconverted Satellite Signals (L-Band)
> Includes Windows-compatible PC Software for Programmed Measurement Configuration, Data Collection, Measurement Results Printouts, Limits Checking, Alarming and Control of a Locally or Remotely-located 2715
> High Portability, On-board Nonvolatile Memory, Four Digital Displays for Spectral Display Storage and Comparison, Plus True Analog, Continuous Gray Scale Display for Detecting Low Level Beats and Spurs Amidst Noise and Active Video> In-service Proof-of-performance Tests
> Digital Service Installation and Troubleshooting
> Ingress DetectionSKU: 681 -
Current Probe Amplifiter

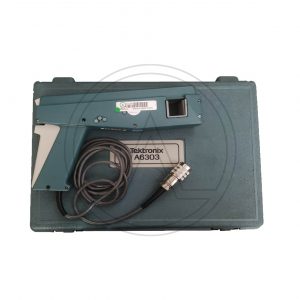

TEKTRONIX A6303
The Tektronix A6303 aka P6303 is a 15 MHz, 100 A current probe.
It requires an AM503, AM5030 or 11A16 amplifier for operation. The Tektronix 067-0865-00 is a calibration fixture for the P6303.
Specifications
Bandwidth DC − 15 MHz
Rise time ≤23 ns
Input range 100 A continuous, 500 A peak, ≤10 kA · μs (with 11A16: 52.5 A continuous)Derating: 200 Ap-p up to 20 kHz, down to 20 Ap-p at 20 MHz (see curve)
Sensitivity 10 mA/Div to 50 A/Div, 1−2−5 (with AM503)
Noise ≤3 mA (@ 100 MHz amplifier BW, 10 mA range, DC)
DatasheetSKU: n/a -

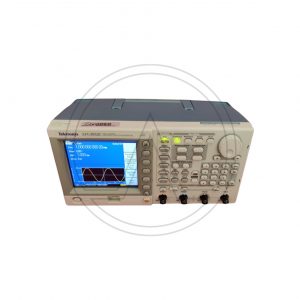

Function/Arbitrary Waveform Generator
TEKTRONIX AFG3052C
Arbitrary Function Generator With 12 standard waveforms, arbitrary waveform capability, and signal impairment options, the AFG3052C Arbitrary / Function Generator supports a wide range of application needs with one instrument. Arbitrary waveforms can be generated up to 128 K in length at high sampling rates. On pulse waveforms, leading and trailing edge time can be set independently. External signals can be connected and added to the output signal. All instruments feature a highly stable time base with only ±1 ppm drift per year.Unmatched performance, versatility, intuitive operation, and affordability make the Tektronix AFG3052C of Function, Arbitrary Waveform, and Pulse Generators the most useful instruments in the industry. Color TFT LCD screen on all models shows all relevant waveform parameters and graphical wave shape at a single glance. Shortcut keys provide direct access to frequently used functions and parameters. With this PC software waveforms can be seamlessly imported from any Tektronix Oscilloscope, or defined by standard functions, equation editor, and waveform math.
DatasheetSKU: n/a -
Current Probe Amplifiter
TEKTRONIX AM503

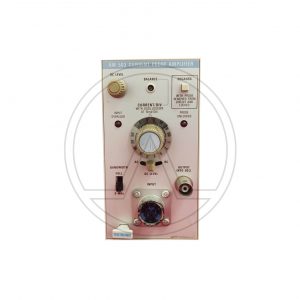

Tektronix AM503 Current Probe Amplifier
The AM503 Current Probe Amplifier allows display of current on any oscilloscope having 10 mV/div sensitivity, 50 ohm or 1 megohm input, and at least 100 MHz bandwidth. It is compatible with A6302, A6303, P6302, P6303 current probes. It requires a TM500 or TM5000 series mainframe for operation.
Features:Allows for current display on any oscilloscope
Maximum input current: 20A for 6302; 100A for 6303
Bandwidth: >50 MHz 6302; >15 MHz 6303
Rise time: <7 ns 6302; <23 ns 6303 Deflection factor: 1 mA/div to 5 A/div for 6302; 20 mA/div to 50 A/div for 6303 Weight: 4 lb; Size: single width module DatasheetSKU: 429
-
Spectrum Analyzer
Tektronix 2715
The synthesized spectrum analyzer Tektronix 2715 was created to measurement needs of television channels with an infinite number of possibilities of automatic measurements for TV. In addition to having special features for measures TV, the 2715 is also a more than performance spectrum analyzer, fully programmable, storage capacity of 108 screens.
The 2715 Cable TV Spectrum Analyzer now includes automated tests for both analog and digitally-modulated channels. When you are ready to begin installing digital transmission of video, data or voice, the 2715 is ready to help.
After setting up the 2715 with the new, companion Cable TV RF Measurement Software for Windows, the analyzer automatically determines the correct measurements for each channel type – analog, digital, FM or pilot.> Very accurate in frequency.
> Demodulator: AM-FM-TV
> Max. Frequency: 1.8 GHz
> Min. Frequency: 9 kHz> In-service Measurements Minimize Program Interruption, Reduce Cost of Acquiring > Performance Data – Compatible with NTSC and PAL Systems
> Digital Channel Measurements Are Ready When You Are – Characterize Averaged > Power; Check Noise and Distortions that Can Worsen BER – Applicable to QAM, QPSK, QPR, VSB and OFDM Signals
> Addresses All FCC Proof of Performance Measurements
> Cable TV Measurements Enhance Measurement Repeatability and Reduce Technician Training Time
> Carrier Level, Carrier Frequency, Carrier-to-noise, Hum/LFD and Other Key
> Measurements Execute Automatically from Easy-to-use, On-screen Menu
> Unattended and Remote Measurement Modes Reduce Personnel Requirements in the Field
> 75 Ohm Input with Quick-change F and BNC Connectors Reduce Repair Costs and Minimize Down Time
> Enhanced Troubleshooting Power with Built-in Preamplifier, Audio and Video Demodulation – All Standard
> Frequency Coverage to 2.15 GHz, with Opt. 50 and 75, Can View Downconverted Satellite Signals (L-Band)
> Includes Windows-compatible PC Software for Programmed Measurement Configuration, Data Collection, Measurement Results Printouts, Limits Checking, Alarming and Control of a Locally or Remotely-located 2715
> High Portability, On-board Nonvolatile Memory, Four Digital Displays for Spectral Display Storage and Comparison, Plus True Analog, Continuous Gray Scale Display for Detecting Low Level Beats and Spurs Amidst Noise and Active Video> In-service Proof-of-performance Tests
> Digital Service Installation and Troubleshooting
> Ingress Detection -
Current Probe Amplifiter
TEKTRONIX A6303
The Tektronix A6303 aka P6303 is a 15 MHz, 100 A current probe.
It requires an AM503, AM5030 or 11A16 amplifier for operation. The Tektronix 067-0865-00 is a calibration fixture for the P6303.
Specifications
Bandwidth DC − 15 MHz
Rise time ≤23 ns
Input range 100 A continuous, 500 A peak, ≤10 kA · μs (with 11A16: 52.5 A continuous)Derating: 200 Ap-p up to 20 kHz, down to 20 Ap-p at 20 MHz (see curve)
Sensitivity 10 mA/Div to 50 A/Div, 1−2−5 (with AM503)
Noise ≤3 mA (@ 100 MHz amplifier BW, 10 mA range, DC)
Datasheet -
Function/Arbitrary Waveform Generator
TEKTRONIX AFG3052C
Arbitrary Function Generator With 12 standard waveforms, arbitrary waveform capability, and signal impairment options, the AFG3052C Arbitrary / Function Generator supports a wide range of application needs with one instrument. Arbitrary waveforms can be generated up to 128 K in length at high sampling rates. On pulse waveforms, leading and trailing edge time can be set independently. External signals can be connected and added to the output signal. All instruments feature a highly stable time base with only ±1 ppm drift per year.Unmatched performance, versatility, intuitive operation, and affordability make the Tektronix AFG3052C of Function, Arbitrary Waveform, and Pulse Generators the most useful instruments in the industry. Color TFT LCD screen on all models shows all relevant waveform parameters and graphical wave shape at a single glance. Shortcut keys provide direct access to frequently used functions and parameters. With this PC software waveforms can be seamlessly imported from any Tektronix Oscilloscope, or defined by standard functions, equation editor, and waveform math.
Datasheet -
Current Probe Amplifiter
TEKTRONIX AM503
Tektronix AM503 Current Probe Amplifier
The AM503 Current Probe Amplifier allows display of current on any oscilloscope having 10 mV/div sensitivity, 50 ohm or 1 megohm input, and at least 100 MHz bandwidth. It is compatible with A6302, A6303, P6302, P6303 current probes. It requires a TM500 or TM5000 series mainframe for operation.
Features:Allows for current display on any oscilloscope
Maximum input current: 20A for 6302; 100A for 6303
Bandwidth: >50 MHz 6302; >15 MHz 6303
Rise time: <7 ns 6302; <23 ns 6303 Deflection factor: 1 mA/div to 5 A/div for 6302; 20 mA/div to 50 A/div for 6303 Weight: 4 lb; Size: single width module Datasheet
-
Spectrum Analyzer
Tektronix 2715
The synthesized spectrum analyzer Tektronix 2715 was created to measurement needs of television channels with an infinite number of possibilities of automatic measurements for TV. In addition to having special features for measures TV, the 2715 is also a more than performance spectrum analyzer, fully programmable, storage capacity of 108 screens.
The 2715 Cable TV Spectrum Analyzer now includes automated tests for both analog and digitally-modulated channels. When you are ready to begin installing digital transmission of video, data or voice, the 2715 is ready to help.
After setting up the 2715 with the new, companion Cable TV RF Measurement Software for Windows, the analyzer automatically determines the correct measurements for each channel type – analog, digital, FM or pilot.> Very accurate in frequency.
> Demodulator: AM-FM-TV
> Max. Frequency: 1.8 GHz
> Min. Frequency: 9 kHz> In-service Measurements Minimize Program Interruption, Reduce Cost of Acquiring > Performance Data – Compatible with NTSC and PAL Systems
> Digital Channel Measurements Are Ready When You Are – Characterize Averaged > Power; Check Noise and Distortions that Can Worsen BER – Applicable to QAM, QPSK, QPR, VSB and OFDM Signals
> Addresses All FCC Proof of Performance Measurements
> Cable TV Measurements Enhance Measurement Repeatability and Reduce Technician Training Time
> Carrier Level, Carrier Frequency, Carrier-to-noise, Hum/LFD and Other Key
> Measurements Execute Automatically from Easy-to-use, On-screen Menu
> Unattended and Remote Measurement Modes Reduce Personnel Requirements in the Field
> 75 Ohm Input with Quick-change F and BNC Connectors Reduce Repair Costs and Minimize Down Time
> Enhanced Troubleshooting Power with Built-in Preamplifier, Audio and Video Demodulation – All Standard
> Frequency Coverage to 2.15 GHz, with Opt. 50 and 75, Can View Downconverted Satellite Signals (L-Band)
> Includes Windows-compatible PC Software for Programmed Measurement Configuration, Data Collection, Measurement Results Printouts, Limits Checking, Alarming and Control of a Locally or Remotely-located 2715
> High Portability, On-board Nonvolatile Memory, Four Digital Displays for Spectral Display Storage and Comparison, Plus True Analog, Continuous Gray Scale Display for Detecting Low Level Beats and Spurs Amidst Noise and Active Video> In-service Proof-of-performance Tests
> Digital Service Installation and Troubleshooting
> Ingress Detection -
Current Probe Amplifiter
TEKTRONIX A6303
The Tektronix A6303 aka P6303 is a 15 MHz, 100 A current probe.
It requires an AM503, AM5030 or 11A16 amplifier for operation. The Tektronix 067-0865-00 is a calibration fixture for the P6303.
Specifications
Bandwidth DC − 15 MHz
Rise time ≤23 ns
Input range 100 A continuous, 500 A peak, ≤10 kA · μs (with 11A16: 52.5 A continuous)Derating: 200 Ap-p up to 20 kHz, down to 20 Ap-p at 20 MHz (see curve)
Sensitivity 10 mA/Div to 50 A/Div, 1−2−5 (with AM503)
Noise ≤3 mA (@ 100 MHz amplifier BW, 10 mA range, DC)
Datasheet -
Function/Arbitrary Waveform Generator
TEKTRONIX AFG3052C
Arbitrary Function Generator With 12 standard waveforms, arbitrary waveform capability, and signal impairment options, the AFG3052C Arbitrary / Function Generator supports a wide range of application needs with one instrument. Arbitrary waveforms can be generated up to 128 K in length at high sampling rates. On pulse waveforms, leading and trailing edge time can be set independently. External signals can be connected and added to the output signal. All instruments feature a highly stable time base with only ±1 ppm drift per year.Unmatched performance, versatility, intuitive operation, and affordability make the Tektronix AFG3052C of Function, Arbitrary Waveform, and Pulse Generators the most useful instruments in the industry. Color TFT LCD screen on all models shows all relevant waveform parameters and graphical wave shape at a single glance. Shortcut keys provide direct access to frequently used functions and parameters. With this PC software waveforms can be seamlessly imported from any Tektronix Oscilloscope, or defined by standard functions, equation editor, and waveform math.
Datasheet -
Current Probe Amplifiter
TEKTRONIX AM503
Tektronix AM503 Current Probe Amplifier
The AM503 Current Probe Amplifier allows display of current on any oscilloscope having 10 mV/div sensitivity, 50 ohm or 1 megohm input, and at least 100 MHz bandwidth. It is compatible with A6302, A6303, P6302, P6303 current probes. It requires a TM500 or TM5000 series mainframe for operation.
Features:Allows for current display on any oscilloscope
Maximum input current: 20A for 6302; 100A for 6303
Bandwidth: >50 MHz 6302; >15 MHz 6303
Rise time: <7 ns 6302; <23 ns 6303 Deflection factor: 1 mA/div to 5 A/div for 6302; 20 mA/div to 50 A/div for 6303 Weight: 4 lb; Size: single width module Datasheet
