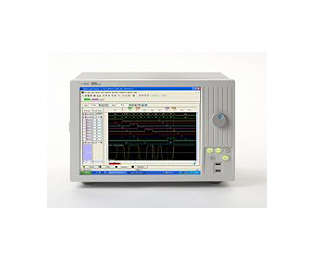

HP-Agilent/Keysight 16804A

Logic Analyzer Configuration – 15-inch (38.1 cm) color display with touch screen available – 136-channel portable logic analyzer with up to 32 M acquisition memory depth – Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments) Timing Analysis (Asynchronous Sampling) – 4 GHz (250 ps) timing zoom with 64 K memory – 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory – 500 MHz transitional timing State Analysis (Synchronous Sampling) – State clock rates up to 450 MHz – Data rates: up to 500 Mb/s – Automated threshold/sample position setup for accurate measurements on high-speed buses – Simultaneous eye diagrams on all channels identify problem signals quickly Configuration Considerations – Selectable memory depths: 1 M, 4 M, 16 M, 32 M – Compatible with 40-pin logic analyzer probes. Probes are ordered separately. Keysight’s Probe Recommendations

Brand

HP-Agilent/Keysight
