Rigol DS1074B

DSO with 70MHz bandwidth and 2GSa/s


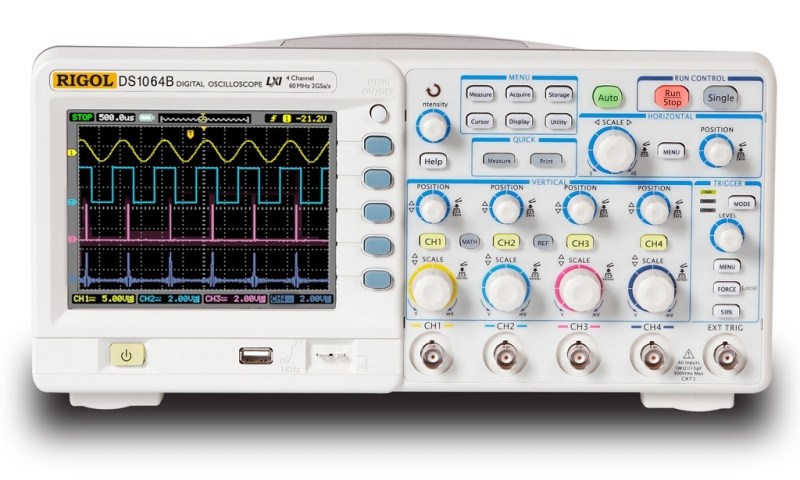

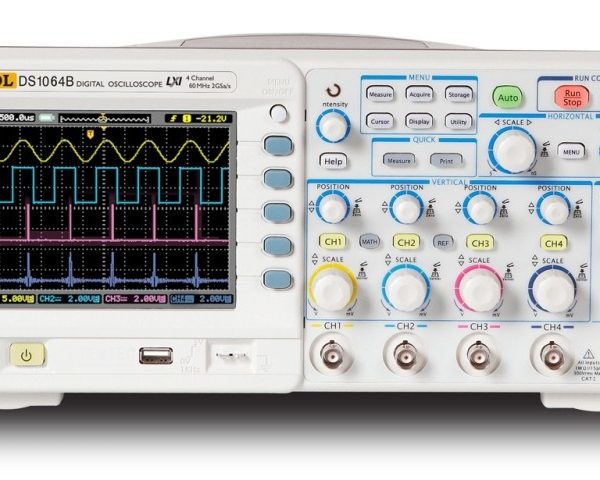

The Rigol DS1074B is a high quality four channel digital storage oscilloscope. It offers up to 2GSa/s real-time sample rate and up to 60MHz bandwidth. It not only has compact design and 64K TFT color LCD, but also powerful functions: 7 trigger modes, adjustable trigger sensitivity, USB Host to support USB flash memory and USB printer, and other traditional functions of RIGOL oscilloscopes. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes. Delivery including 4 probes, USB cable, pc software, power adapter and manual. General Data General Data DS1074B Display 5.7″ TFT LCD with 65536 colors Resolution 320 x 240 Pixel Size 325 x 159 x 133mm (12.80 x 6.26 x 5.24 inch) Weight 3 kg (6.61 lbs) Supported operation systems Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit) Oscilloscope Details Oscilloscope Details DS1074B Channels 4 Real-time sample rate 2 GSa/s real time Bandwidth 70 MHz Sampling mode Normal, average (2, 4, 8, 16, 32, 64, 128, 256), peak detect Mathematics A+B, A-B, A×B, FFT (Fast Fourier Transform) FFT algorithm Rectangle, Hanning, Hamming, Blackman Signal DS1074B Max. Input voltage 300 Vrms CAT I Real-time sample rate 13 Sa/s to 2 GSa/s real time Time base 1 ns/Div. to 50 s/Div. (Steps 1 – 2 – 5) Memory 16 kpts (2 channels) 8 kpts (4 channels) Vertical DS1074B Analog digital converter (A/D) With the resolution of 8 bits, make sampling on both channels synchronously. Sensitivity range (V/div) 2 mV/Div to 10 V/Div. Displacement range ±10 Div. (2 mV – 10 V) Trigger DS1074B Trigger Channel 1/2/3/4, Ext, Ext / 5, AC Line Signal system and line/field frequency (Video triggering mode) Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency. Measurement DS1074B Cursor measurement Manual, Track and Auto Measure modes Auto measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Time Delay A-B, Time Delay A-B, Phase Delay A-B,- Phase Delay A-B
