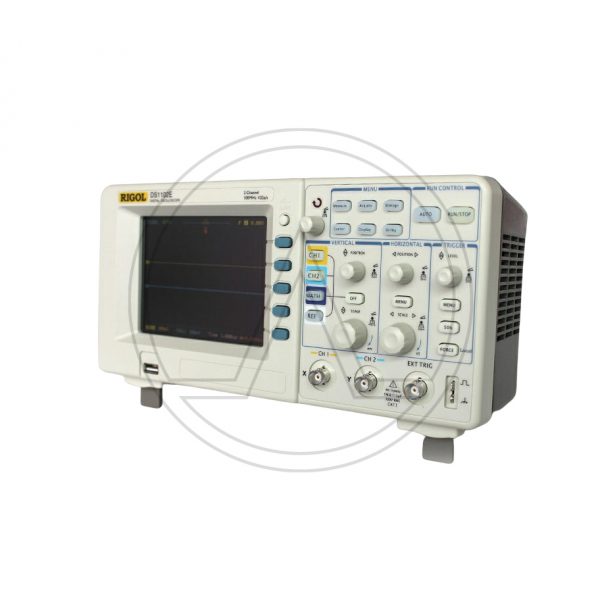

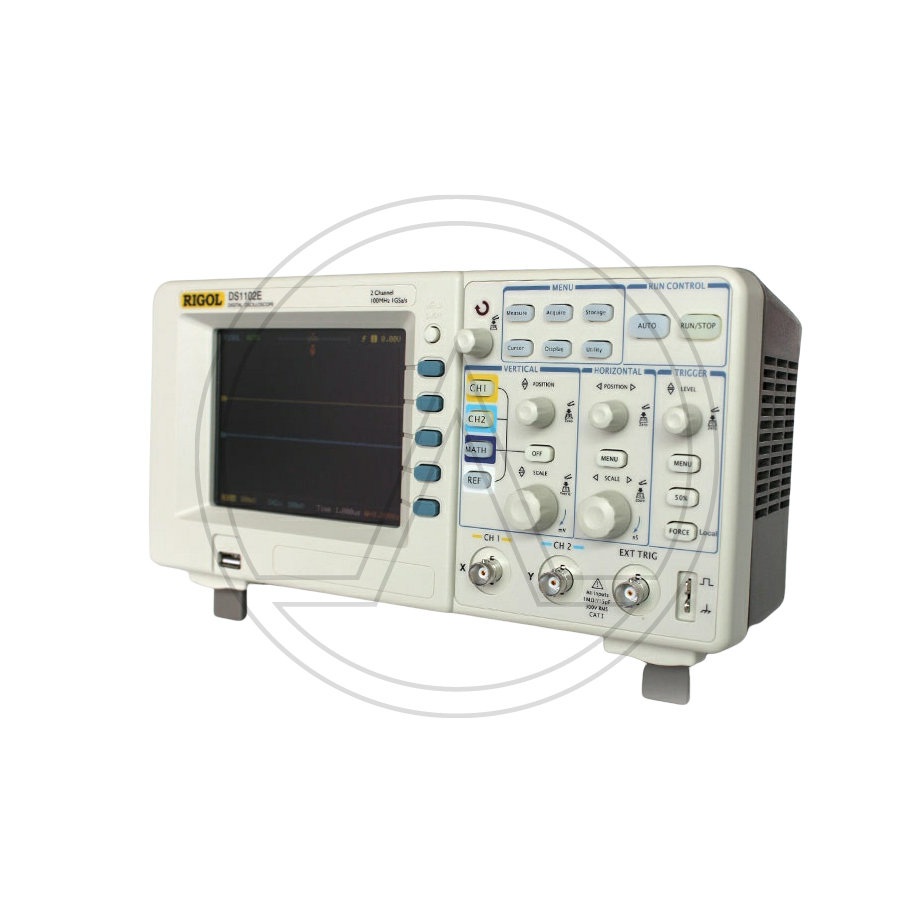

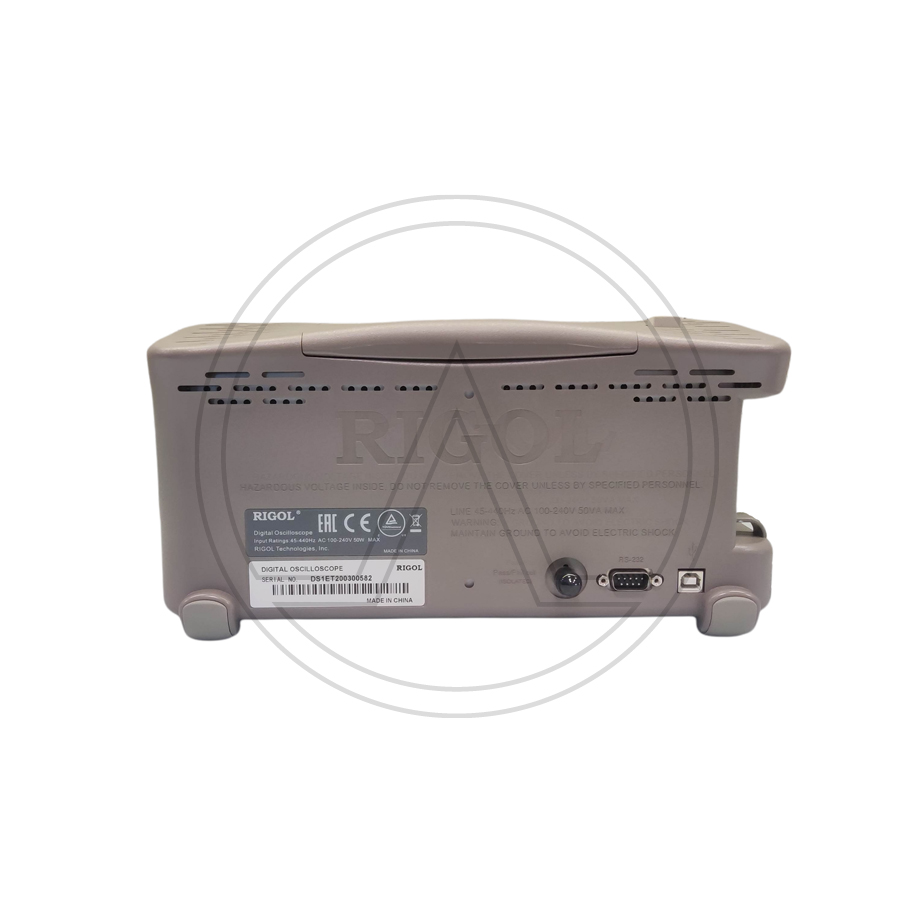

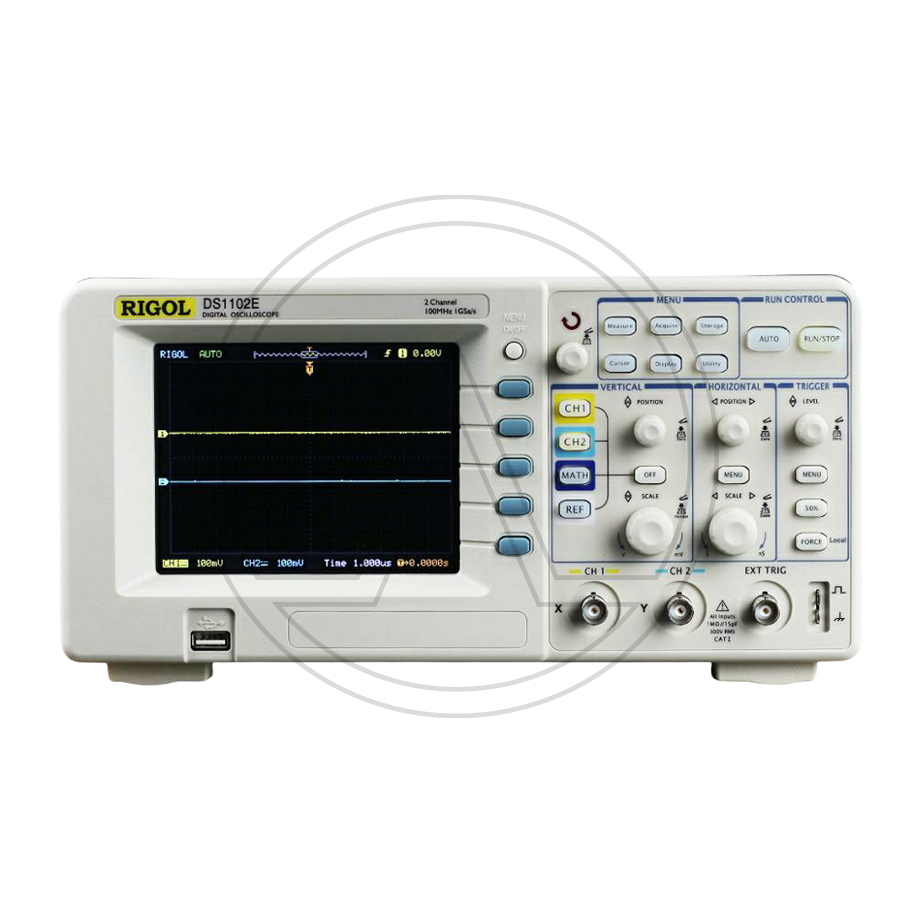

Rigol DS1102E

DSO with 100MHz bandwidth, 1GSa/s and 1Mpts memory

326.00

The Rigol DS1102E is a high quality two channel digital storage oscilloscope. It offers up to 1GSa/s real-time sample rate and up to 100MHz bandwidth. It not only has compact design and 64K TFT color LCD, but also powerful functions: up to 1M memory depth, with Ultrazoom function, it can enable users to observe details while survey the whole waveform- 7 trigger modes, adjustable trigger sensitivity, USB Host to support USB flash memory and USB printer, and other traditional functions of RIGOL oscilloscopes. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes. Delivery including 2 probes, USB cable, pc software, power adapter and manual. General Data General Data DS1102E Display 5.7″ TFT LCD with 65536 colors Resolution 320 x 234 Pixel Size 303 x 154 x 133mm (11.93 x 6.06 x 5.24 inch) Weight 2500 g (5.51 lbs) Supported operation systems Windows 7 (32Bit + 64Bit), Vista (32Bit + 64Bit), XP (32Bit + 64Bit) Oscilloscope Details Oscilloscope Details DS1102E Channels 2 Real-time sample rate 1 GSa/s real time Bandwidth 100 MHz Sampling mode Normal, average (2, 4, 8, 16, 32, 64, 128, 256), peak detect Mathematics A+B, A-B, A×B, FFT (Fast Fourier Transform) FFT algorithm Rectangle, Hanning, Hamming, Blackman Signal DS1102E Max. Input voltage 300 Vrms CAT I Real-time sample rate 13 Sa/s to 1 GSa/s real time Time base 2 ns/Div. to 50 s/Div. (Steps 1 – 2 – 5) Memory 1 Mpts (1 channel) 512 kpts (2 channels) Vertical DS1102E Analog digital converter (A/D) With the resolution of 8 bits, make sampling on both channels synchronously. Sensitivity range (V/div) 2 mV/Div to 10 V/Div. Displacement range ±10 Div. (2 mV – 10 V) Trigger DS1102E Trigger Channel 1, Channel 2, Ext, Ext / 5, AC Line Signal system and line/field frequency (Video triggering mode) Support the NTSC, PAL and SECAM broadcasting systems of any field or line frequency. Measurement DS1102E Cursor measurement Manual, Track and Auto Measure modes Auto measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay1-2 (rise), Delay1-2(fall)

COD: 156 Categoria:

Brand

Rigol
